24_SMA-50-2-14/111_NH
ActiveHuber+Suhner, Inc.
24_SMA-50-2-14/111_NH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
24_SMA-50-2-14/111_NH
ActiveHuber+Suhner, Inc.
24_SMA-50-2-14/111_NH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 24_SMA-50-2-14/111_NH |
|---|---|
| Body Finish | Gold |
| Body Material | Brass |
| Cable Group | RG-174, 188, 316 |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Style | SMA |
| Connector Type | Female Socket, Jack |
| Contact Termination | Solder |
| Dielectric Material | Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE) |
| Frequency - Max [Max] | 18 GHz |
| Housing Color | Gold |
| Impedance | 50 Ohms |
| Mating Cycles | 500 |
| Mounting Feature | Bulkhead - Front Side Nut |
| Number of Ports | 1 |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -65 ░C |
| Shield Termination | Crimp |
24_SMA-50 Series
| Part | Center Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Feature | Dielectric Material | Housing Color | Mating Cycles | Contact Termination | Body Material | Cable Group | Shield Termination | Connector Type | Center Contact Plating | Connector Style | Frequency - Max [Max] | Impedance | Number of Ports | Body Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Huber+Suhner, Inc. | Beryllium Copper | -65 ░C | 165 °C | Bulkhead - Front Side Nut | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | Silver | 500 | Solder | Brass | RD-316 | Crimp | Female Socket Jack | Gold | SMA | 18 GHz | 50 Ohms | 1 | White Bronze |
Huber+Suhner, Inc. | Beryllium Copper | -65 ░C | 165 °C | Bulkhead - Front Side Nut | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | Gold | 500 | Solder | Brass | RG-141 | Solder | Female Socket Jack | Gold | SMA | 18 GHz | 50 Ohms | 1 | Gold |
Huber+Suhner, Inc. | Beryllium Copper | -65 ░C | 165 °C | Bulkhead - Front Side Nut | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | Gold | 500 | Solder | Beryllium Copper | RG-405 | Solder | Female Socket Jack | Gold | SMA | 18 GHz | 50 Ohms | 1 | Gold |
Huber+Suhner, Inc. | Beryllium Copper | -65 ░C | 165 °C | Bulkhead - Front Side Nut | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | Gold | 500 | Solder | Beryllium Copper | 188 316 RG-174 | Crimp | Female Socket Jack | Gold | SMA | 18 GHz | 50 Ohms | 1 | Gold |
Huber+Suhner, Inc. | ||||||||||||||||||
Huber+Suhner, Inc. | Beryllium Copper | -65 ░C | 165 °C | Bulkhead - Front Side Nut | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | Gold | 500 | Solder | Brass | 188 316 RG-174 | Crimp | Female Socket Jack | Gold | SMA | 18 GHz | 50 Ohms | 1 | Gold |
Huber+Suhner, Inc. | Beryllium Copper | -65 ░C | 165 °C | Bulkhead - Front Side Nut | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | Gold | 500 | Solder | Beryllium Copper | RG-141 | Solder | Female Socket Jack | Gold | SMA | 18 GHz | 50 Ohms | 1 | Gold |
Huber+Suhner, Inc. | Beryllium Copper | -65 ░C | 165 °C | Bulkhead - Front Side Nut | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | Gold | 500 | Solder | Beryllium Copper | Solder | Female Socket Jack | Gold | SMA | 18 GHz | 50 Ohms | 1 | Gold | |
Huber+Suhner, Inc. | Beryllium Copper | -65 ░C | 165 °C | Bulkhead - Front Side Nut | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | Gold | 500 | Solder | Beryllium Copper | RD-316 | Crimp | Female Socket Jack | Gold | SMA | 18 GHz | 50 Ohms | 1 | Gold |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 16.16 | |
| 10 | $ 14.01 | |||
| 25 | $ 13.28 | |||
| 50 | $ 13.08 | |||
| 100 | $ 11.54 | |||
| 250 | $ 10.77 | |||
| 500 | $ 10.54 | |||
Description
General part information
24_SMA-50 Series

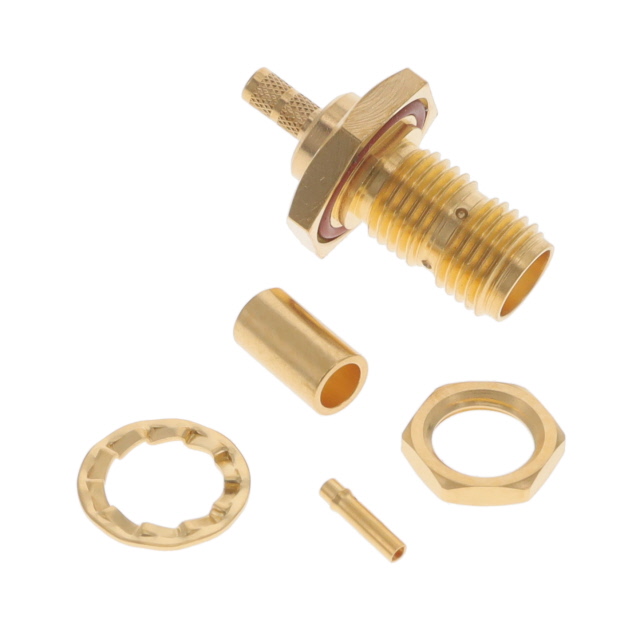

SMA Connector Jack, Female Socket 50 Ohms Panel Mount Solder
Documents
Technical documentation and resources
