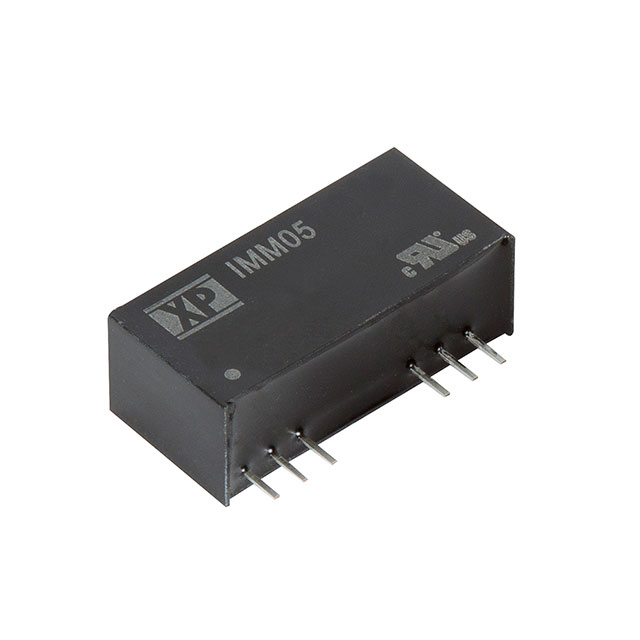

IMM0505D12
ActiveXP POWER
DC DC CONVERTER +/-12V 5W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
IMM0505D12
ActiveXP POWER
DC DC CONVERTER +/-12V 5W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | IMM0505D12 |
|---|---|
| Applications | Medical |
| Approval Agency | TUV, CSA, UL, CB |
| Current - Output (Max) | 208 mA |
| Current - Output (Max) | 208 mA |
| Features | Remote On/Off, OCP, SCP |
| Mounting Type | Through Hole |
| Number of Outputs | 2 |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -20 °C |
| Package / Case | 6 Leads |
| Package / Case | 9-SIP Module |
| Power (Watts) | 5 W |
| Size / Dimension [x] | 1.02 in |
| Size / Dimension [x] | 26 mm |
| Size / Dimension [y] | 0.36 " |
| Size / Dimension [y] | 9.3 mm |
| Size / Dimension [z] | 12.5 mm |
| Size / Dimension [z] | 0.49 in |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 9 V |
| Voltage - Input (Min) [Min] | 4.5 V |
| Voltage - Isolation | 1.5 kV |
| Voltage - Output 1 | 12 V |
| Voltage - Output 2 | -12 V |
