M80-8662022

Active

Harwin Inc.

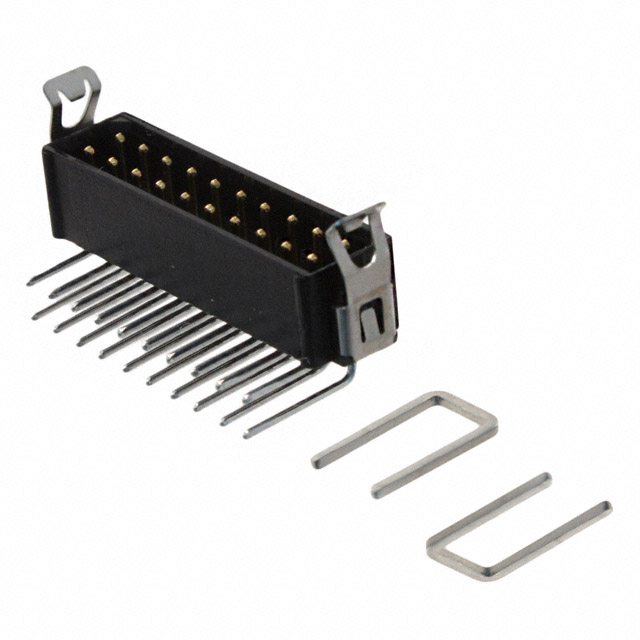

PIN HEADER, PCB HEADER, BOARD-TO-BOARD, WIRE-TO-BOARD, 2 MM, 2 ROWS, 20 CONTACTS, THROUGH HOLE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsManufacturer Catalogue EN 3D Product Image EN +5

M80-8662022

Active

Harwin Inc.

PIN HEADER, PCB HEADER, BOARD-TO-BOARD, WIRE-TO-BOARD, 2 MM, 2 ROWS, 20 CONTACTS, THROUGH HOLE

Deep-Dive with AI

DocumentsManufacturer Catalogue EN 3D Product Image EN +5

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M80-8662022

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin-Lead
Contact Finish Thickness - Mating	29.5 Áin
Contact Finish Thickness - Mating	0.75 Ám
Contact Finish Thickness - Post	3 µm
Contact Finish Thickness - Post	118.1 µin
Contact Length - Post	0.118 in
Contact Length - Post	3 mm
Contact Material	Phosphor Bronze
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	2.2 A
Fastening Type	Latch Lock
Features	Strain Relief Clips
Insulation Color	Black
Insulation Height	5.97 mm
Insulation Height	0.235 in
Insulation Material	Polyester, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	20
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	120 VDC

M80-866 Series

Part	Number of Rows	Row Spacing - Mating	Row Spacing - Mating	Insulation Height	Insulation Height	Contact Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type	Termination	Contact Finish - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Fastening Type	Contact Length - Post	Contact Length - Post	Current Rating (Amps)	Number of Positions	Insulation Color	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Contact Finish - Post	Connector Type	Pitch - Mating [x]	Pitch - Mating [x]	Style	Insulation Material	Shrouding	Features	Contact Material	Number of Positions Loaded	Material Flammability Rating	Contact Shape	Contact Finish Thickness - Post	Insulation Height [z]	Number of Positions
Harwin Inc. M80-8662622	2	0.079 in	2 mm	5.97 mm	0.235 in	Male Pin	29.5 Áin	0.75 Ám	Through Hole Right Angle	Solder	Gold	3 µm	118.1 µin	Latch Lock	0.118 in	3 mm	2.2 A	26	Black	-55 °C	125 °C	120 VDC	Tin-Lead	Header	0.079 in	2 mm	Board to Board Cable	Polyester Glass Filled	Shrouded - 4 Wall	Strain Relief Clips	Phosphor Bronze	All	UL94 V-0	Circular
Harwin Inc. M80-8661222	2	0.079 in	2 mm	5.97 mm	0.235 in	Male Pin	29.5 Áin	0.75 Ám	Through Hole Right Angle	Solder	Gold	3 µm	118.1 µin	Latch Lock	0.118 in	3 mm	2.2 A	12	Black	-55 °C	125 °C	120 VDC	Tin-Lead	Header	0.079 in	2 mm	Board to Board Cable	Polyester Glass Filled	Shrouded - 4 Wall	Strain Relief Clips	Phosphor Bronze	All	UL94 V-0	Circular
Harwin Inc. M80-8661405	2	0.079 in	2 mm	5.97 mm	0.235 in	Male Pin	29.5 Áin	0.75 Ám	Through Hole Right Angle	Solder	Gold	0.75 µm		Latch Lock	0.118 in	3 mm	2.2 A	14	Black	-55 °C	125 °C	120 VAC	Gold	Header	0.079 in	2 mm	Board to Board Cable	Polyester Glass Filled	Shrouded - 4 Wall		Phosphor Bronze	All	UL94 V-0	Circular	29.5 µin
Harwin Inc. M80-8662605	2	0.079 in	2 mm	5.56 mm		Male Pin	29.5 Áin	0.75 Ám	Through Hole Right Angle	Solder	Gold	0.75 µm		Latch Lock	0.118 in	3 mm	2.2 A	26	Black	-55 °C	125 °C	120 VAC	Gold	Header	0.079 in	2 mm	Board to Board Cable	Polyester Glass Filled	Shrouded - 4 Wall	Strain Relief Clips	Phosphor Bronze	All	UL94 V-0	Circular	29.5 µin	0.219 in
Harwin Inc. M80-8662005	2	0.079 in	2 mm	5.97 mm	0.235 in	Male Pin	29.5 Áin	0.75 Ám	Through Hole Right Angle	Solder	Gold			Latch Lock	0.118 in	3 mm	2.2 A	20	Black	-55 °C	125 °C	120 VDC		Header	0.079 in	2 mm	Board to Board Cable	Polyester Glass Filled	Shrouded - 4 Wall	Strain Relief Clips	Phosphor Bronze	All	UL94 V-0	Circular
Harwin Inc. M80-8662022	2	0.079 in	2 mm	5.97 mm	0.235 in	Male Pin	29.5 Áin	0.75 Ám	Through Hole Right Angle	Solder	Gold	3 µm	118.1 µin	Latch Lock	0.118 in	3 mm	2.2 A	20	Black	-55 °C	125 °C	120 VDC	Tin-Lead	Header	0.079 in	2 mm	Board to Board Cable	Polyester Glass Filled	Shrouded - 4 Wall	Strain Relief Clips	Phosphor Bronze	All	UL94 V-0	Circular
Harwin Inc. M80-8660622	2	0.079 in	2 mm	5.97 mm	0.235 in	Male Pin	29.5 Áin	0.75 Ám	Through Hole Right Angle	Solder	Gold	3 µm	118.1 µin	Latch Lock	0.118 in	3 mm	2.2 A	6	Black	-55 °C	125 °C	120 VDC	Tin-Lead	Header	0.079 in	2 mm	Board to Board Cable	Polyester Glass Filled	Shrouded - 4 Wall	Strain Relief Clips	Phosphor Bronze	All	UL94 V-0	Circular
Harwin Inc. M80-8661622	2	0.079 in	2 mm	5.97 mm	0.235 in	Male Pin	29.5 Áin	0.75 Ám	Through Hole Right Angle	Solder	Gold	3 µm	118.1 µin	Latch Lock	0.118 in	3 mm	2.2 A		Black	-55 °C	125 °C	120 VDC	Tin-Lead	Header	0.079 in	2 mm	Board to Board Cable	Polyester Glass Filled	Shrouded - 4 Wall	Strain Relief Clips	Phosphor Bronze	All	UL94 V-0	Circular			16

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 8.38
		10	$ 7.54
		100	$ 6.74
		500	$ 5.65
		1000	$ 4.99
Newark	Each	50	$ 6.01
		100	$ 5.68
		250	$ 5.37
		500	$ 5.07

Description

General part information

M80-866 Series

Connector Header Through Hole, Right Angle 20 position 0.079" (2.00mm)

Documents

Technical documentation and resources

M80-0110001

M80, M83 Series Spec Sheet

Datasheet

M80-8662022

Deep-Dive with AI

M80-8662022

Deep-Dive with AI

Technical Specifications

M80-866 Series

Pricing

Description

M80-866 Series

Documents

Manufacturer Catalogue EN

3D Product Image EN

Drawing EN

M80-0110001

M80, M83 Series Spec Sheet

Datasheet

M80-001

M80-866 Series
