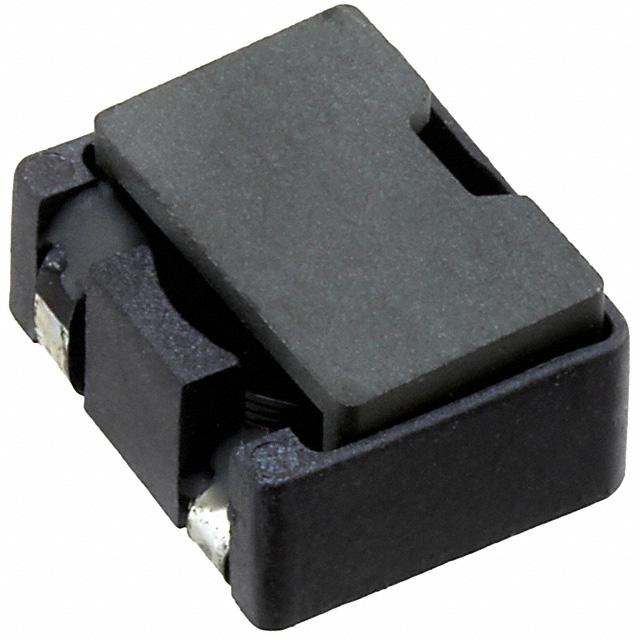

SRP1055-4R3M
ObsoleteBourns Inc.
FIXED IND 4.3UH 10A 8.5 MOHM SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SRP1055-4R3M
ObsoleteBourns Inc.
FIXED IND 4.3UH 10A 8.5 MOHM SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SRP1055-4R3M |
|---|---|
| Current - Saturation (Isat) | 8 A |
| Current Rating (Amps) | 10 A |
| DC Resistance (DCR) | 8.5 mOhm |
| Height - Seated (Max) [Max] [z] | 5.8 mm |
| Height - Seated (Max) [Max] [z] | 0.228 " |
| Inductance | 4.3 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension [x] | 11 mm |
| Size / Dimension [x] | 0.433 in |
| Size / Dimension [y] | 0.368 in |
| Size / Dimension [y] | 9.35 mm |
| Tolerance | 20 % |
| Type | Wirewound, Drum Core |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| LCSC | Piece | 1 | $ 3.94 | |
| 200 | $ 1.57 | |||
| 600 | $ 1.52 | |||
| 1200 | $ 1.49 | |||
Description
General part information
SRP1055 Series
4.3 µH Shielded Drum Core, Wirewound Inductor 10 A 8.5mOhm Max Nonstandard
