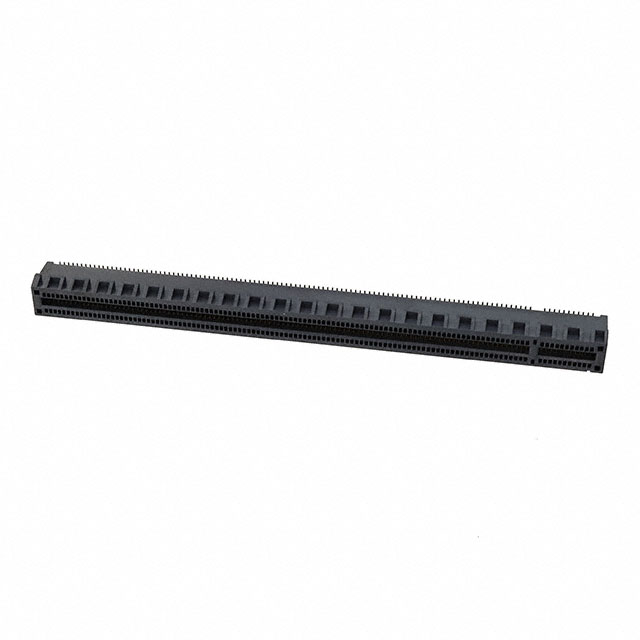

10139595-111T0LF

Active

Amphenol ICC (FCI)

CONN PCI EXP FMALE 230POS 0.039

Search across all available documentation for this part.

Active

Amphenol ICC (FCI)

CONN PCI EXP FMALE 230POS 0.039

Technical Specifications

Parameters and characteristics for this part

Specification	10139595-111T0LF

Card Thickness	0.062 in
Card Thickness	1.57 mm
Card Type	PCI Express™
Color	Black
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Features	Board Guide, Locking Ramp, Solder Retention
Gender	Female
Material - Insulation	Thermoplastic, Glass Filled
Mounting Type	Surface Mount
Number of Positions	230
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.039 in
Pitch [x]	1 mm
Read Out	Dual
Termination	Solder

Part	Card Thickness	Card Thickness	Read Out	Number of Positions	Card Type	Color	Number of Rows	Features	Material - Insulation	Pitch [x]	Pitch [x]	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Gender	Termination	Contact Material	Contact Finish	Termination Rows
Amphenol ICC (FCI) 10139595-111T0LF	0.062 in	1.57 mm	Dual	230	PCI Express™	Black	2	Board Guide Locking Ramp Solder Retention	Thermoplastic Glass Filled	0.039 in	1 mm	85 °C	-55 °C	Surface Mount	0.76 Ám	30 Áin	Female	Solder	Copper Alloy	Gold
Amphenol ICC (FCI) 10139595-111D0LF	0.062 in	1.57 mm	Dual	230	PCI Express™	Black	2	Board Guide Locking Ramp		0.039 in	1 mm	105 ░C	-55 °C	Surface Mount	0.76 Ám	30 Áin	Female	Solder	Copper Alloy	Gold	2
