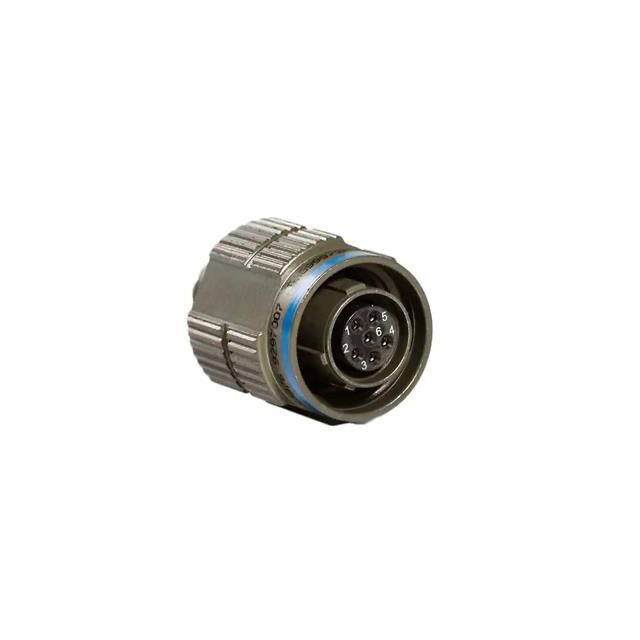

D38999/21YB98XA
ActiveGlenair
CONNECTOR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
D38999/21YB98XA
ActiveGlenair
CONNECTOR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | D38999/21YB98XA | D38999/21YB Series |
|---|---|---|
| - | - | |
| Applications | Military, Medical, Automotive, Aerospace | Aerospace, Military, Medical, Automotive |
| Color | Silver | Silver |
| Connector Type | Receptacle, Male Pins | Receptacle, Male Pins, Receptacle, Female Sockets |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Copper Alloy, Copper | Copper, Copper Alloy |
| Features | Self Locking | Self Locking |
| Grade | Military | Military |
| Ingress Protection | IP68 - Dust Tight, Waterproof | IP68 - Dust Tight, Waterproof |
| Insert Material | Thermoplastic, Epoxy, Glass Filled | Epoxy, Glass Filled, Thermoplastic |
| Mounting Feature | Flange | Flange |
| Number of Positions | 6 | 6 - 13 |
| Operating Temperature [Max] | 200 °C | 200 °C |
| Operating Temperature [Min] | -65 ░C | -65 ░C |
| Orientation | A | B, N, D, C, A |
| Primary Material | Metal | Metal |
| Qualification | MIL-DTL-38999 | MIL-DTL-38999 |
| Shell Finish | Passivated | Passivated |
| Shell Material | Stainless Steel | Stainless Steel |
| Shell Size - Insert | 11 | 11 |
| Shell Size, MIL | B | B |
| Termination | Solder Eyelet(s) | Solder, Solder Eyelet(s) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2811.24 | |
D38999/21YB Series
CONNECTOR
| Part | Shell Size - Insert | Connector Type | Shell Size, MIL | Insert Material | Primary Material | Contact Material | Applications | Mounting Feature | Contact Finish - Mating | Qualification | Number of Positions | Grade | Color | Shell Material | Orientation | Shell Finish | Termination | Operating Temperature [Min] | Operating Temperature [Max] | Features | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Glenair D38999/21YB98PB | 11 | Male Pins, Receptacle | B | Epoxy, Glass Filled | Metal | Copper | Aerospace | Flange | Gold | MIL-DTL-38999 | 6 | Military | Silver | Stainless Steel | B | Passivated | |||||
Glenair D38999/21YB98SN | 11 | Receptacle, Female Sockets | B | Epoxy, Glass Filled | Metal | Copper | Aerospace | Flange | Gold | MIL-DTL-38999 | 6 | Military | Silver | Stainless Steel | N | Passivated | |||||
Glenair D38999/21YB98CN | 11 | Male Pins, Receptacle | B | Epoxy, Glass Filled | Metal | Copper | Aerospace | Flange | Gold | MIL-DTL-38999 | 6 | Military | Silver | Stainless Steel | N | Passivated | Solder | ||||
Glenair D38999/21YB99PN | 11 | Male Pins, Receptacle | B | Epoxy, Glass Filled | Metal | Copper | Aerospace | Flange | Gold | MIL-DTL-38999 | 7 | Military | Silver | Stainless Steel | N | Passivated | |||||
Glenair D38999/21YB98PD | 11 | Male Pins, Receptacle | B | Epoxy, Glass Filled | Metal | Copper | Aerospace | Flange | Gold | MIL-DTL-38999 | 6 | Military | Silver | Stainless Steel | D | Passivated | |||||
Glenair D38999/21YB98PC | 11 | Male Pins, Receptacle | B | Epoxy, Glass Filled | Metal | Copper | Aerospace | Flange | Gold | MIL-DTL-38999 | 6 | Military | Silver | Stainless Steel | C | Passivated | |||||
Glenair D38999/21YB98PN | 11 | Male Pins, Receptacle | B | Epoxy, Glass Filled | Metal | Copper | Aerospace | Flange | Gold | MIL-DTL-38999 | 6 | Military | Silver | Stainless Steel | N | Passivated | |||||
Glenair D38999/21YB35SN | 11 | Receptacle, Female Sockets | B | Epoxy, Glass Filled | Metal | Copper | Aerospace | Flange | Gold | MIL-DTL-38999 | 13 | Military | Silver | Stainless Steel | N | Passivated | |||||
Glenair D38999/21YB98PA | 11 | Male Pins, Receptacle | B | Epoxy, Glass Filled | Metal | Copper | Aerospace | Flange | Gold | MIL-DTL-38999 | 6 | Military | Silver | Stainless Steel | A | Passivated | |||||
Glenair D38999/21YB98XA | 11 | Male Pins, Receptacle | B | Epoxy, Glass Filled, Thermoplastic | Metal | Copper, Copper Alloy | Aerospace, Automotive, Medical, Military | Flange | Gold | MIL-DTL-38999 | 6 | Military | Silver | Stainless Steel | A | Passivated | Solder Eyelet(s) | -65 ░C | 200 °C | Self Locking | IP68 - Dust Tight, Waterproof |
Description
General part information
D38999/21YB Series
6 Position Circular Connector Receptacle, Male Pins Solder Eyelet(s)
