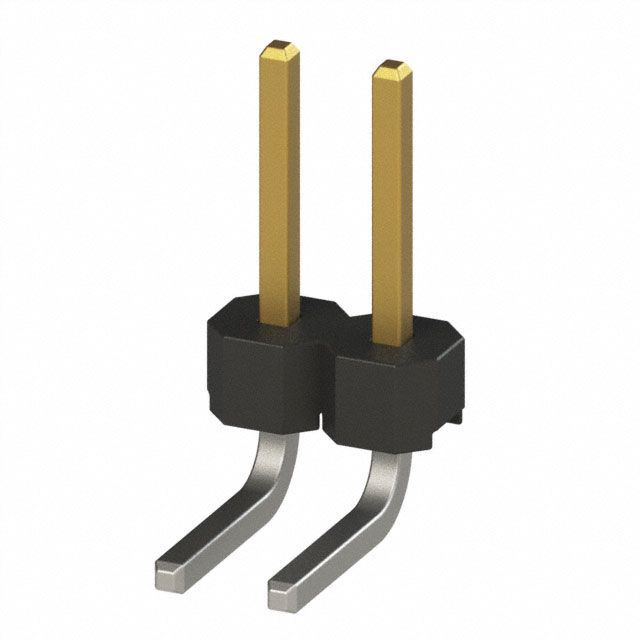

951102-7622-AR

Active

3M (TC)

70200302969 951102-7622-AR =2/PS/BMT/2MM/1R/RA/PTH/4.0/2.8/AUFL/RC ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

3M (TC)

70200302969 951102-7622-AR =2/PS/BMT/2MM/1R/RA/PTH/4.0/2.8/AUFL/RC ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	951102-7622-AR

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	1 çm
Contact Finish Thickness - Post	39.4 çin
Contact Length - Mating	4.4 mm
Contact Length - Mating	0.173 in
Contact Length - Post	2.79 mm
Contact Length - Post [x]	0.11 in
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.079 in
Insulation Height	2 mm
Insulation Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Shrouding	Unshrouded
Termination	Solder

Part	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Pitch - Mating [x]	Pitch - Mating [x]	Contact Type	Number of Rows	Fastening Type	Contact Finish - Mating	Number of Positions	Contact Finish Thickness - Mating	Shrouding	Number of Positions Loaded	Insulation Color	Contact Length - Mating	Contact Length - Mating	Contact Length - Post [x]	Contact Length - Post	Mounting Type	Insulation Height	Insulation Height	Contact Finish - Post	Insulation Material	Contact Shape	Termination	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Material Flammability Rating	Contact Material	Insulation Height [z]	Insulation Height [z]	Overall Contact Length	Overall Contact Length	Contact Length - Mating
3M (TC) 951102-7622-AR	Header	-55 °C	125 °C	0.079 in	2 mm	Male Pin	1	Push-Pull	Gold	2	Flash	Unshrouded	All	Black	4.4 mm	0.173 in	0.11 in	2.79 mm	Through Hole Right Angle	0.079 in	2 mm	Tin	Thermoplastic	Square	Solder	1 çm	39.4 çin	UL94 V-0	Copper Alloy
3M (TC) 951102-8622-AR	Header	-55 °C	125 °C	0.079 in	2 mm	Male Pin	1	Push-Pull	Gold	2	Flash	Unshrouded	All	Black	4.4 mm	0.173 in	0.11 in	2.79 mm	Through Hole			Tin	Thermoplastic	Square	Solder	1 çm	39.4 çin	UL94 V-0	Copper Alloy	0.06 in	1.52 mm	8.7 mm	0.343 in
3M (TC) 951102-7722-AR	Header	-55 °C	125 °C	0.079 in	2 mm	Male Pin	1	Push-Pull	Gold	2	Flash	Unshrouded	All	Black	0.305 in		0.11 in	2.79 mm	Through Hole Right Angle	0.079 in	2 mm	Tin	Thermoplastic	Square	Solder	1 çm	39.4 çin	UL94 V-0	Copper Alloy					7.75 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole, Right Angle 2 position 0.079" (2.00mm)
