K50PTVAMGRY3Q

Active

BANNER ENGINEERING

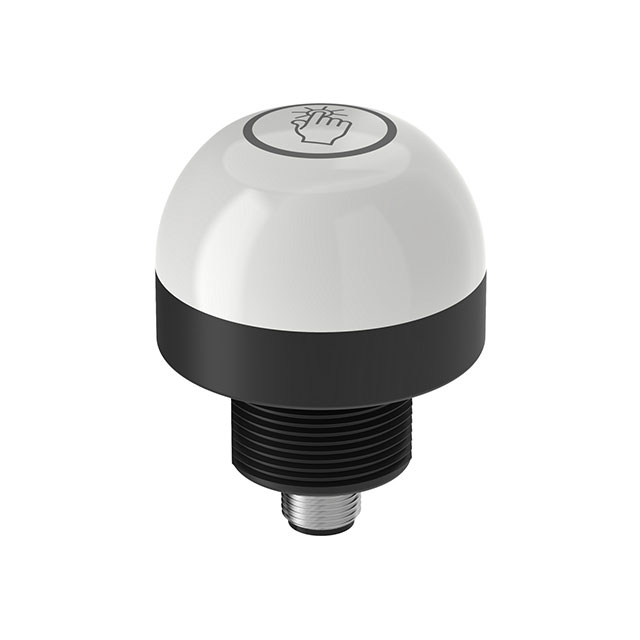

K50 PRO VIBE 3CLR MULT TOUCH SEN

Search across all available documentation for this part.

Active

BANNER ENGINEERING

K50 PRO VIBE 3CLR MULT TOUCH SEN

Technical Specifications

Parameters and characteristics for this part

Specification	K50PTVAMGRY3Q

Actuator Type	Domed, Round, Button
Approval Agency	cULus, CE
Circuit	SPST-NO
Features	Tactile Feedback
Illumination Type, Color	Yellow, Red, LED, Green
Ingress Protection	IP69K, IP67
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-40 °C
Panel Cutout Dimensions [diameter]	30 mm
Response Time	300 ms
Switch Function	Off-Mom
Termination Style	Connector (M12)
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	12 V

Part	Approval Agency	Response Time	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Type	Ingress Protection	Panel Cutout Dimensions [diameter]	Voltage - Supply [Min]	Voltage - Supply [Max]	Mounting Type	Circuit	Termination Style	Switch Function	Features	Illumination Type, Color
BANNER ENGINEERING K50PTVAMRGB14Q	CE cULus	300 ms	-40 °C	50 °C	Button Domed Round	IP67 IP69K	30 mm	12 V	30 VDC	Panel Mount Front	SPST-NO	Connector (M12)	Off-Mom	Tactile Feedback	Blue Green LED Red
BANNER ENGINEERING K50PTVAMGRY3Q	CE cULus	300 ms	-40 °C	50 °C	Button Domed Round	IP67 IP69K	30 mm	12 V	30 VDC	Panel Mount Front	SPST-NO	Connector (M12)	Off-Mom	Tactile Feedback	Green LED Red Yellow

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 185.00
Newark	Each	1	$ 180.01

General part information

K50 PRO VIBE 3CLR MULT TOUCH SEN

Technical documentation and resources
