3010-20-002-12-00
ActiveCnC Tech, LLC

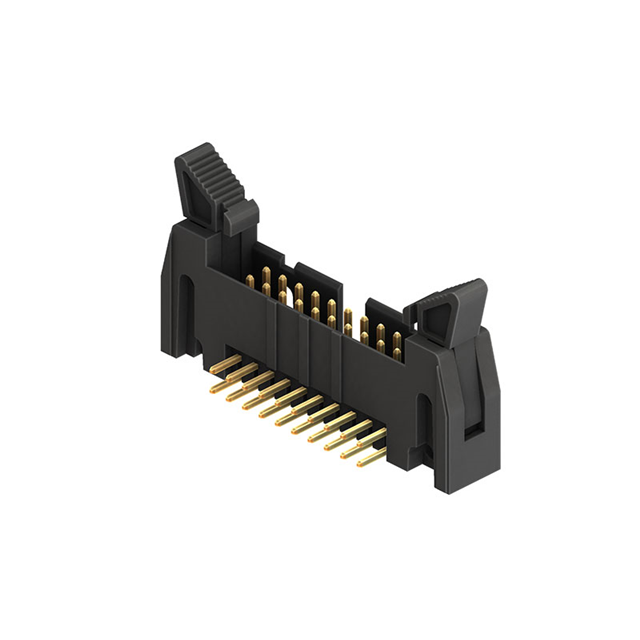

CONN HEADER R/A 20POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
3010-20-002-12-00
ActiveCnC Tech, LLC
CONN HEADER R/A 20POS 2.54MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 3010-20-002-12-00 |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | Flash |
| Contact Length - Post [x] | 0.134 in |
| Contact Length - Post [x] | 3.4 mm |
| Contact Material | Brass |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | 3 A |
| Fastening Type | Latch Lock/Eject Hooks, Short |
| Features | Keying Slot |
| Insulation Height | 0.327 " |
| Insulation Height | 8.3 mm |
| Insulation Material | Polybutylene Terephthalate (PBT) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 20 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Row Spacing - Mating [x] | 2.54 mm |
| Row Spacing - Mating [x] | 0.1 in |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 250 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 1.80 | |
| 10 | $ 1.57 | |||
| 80 | $ 1.40 | |||
| 648 | $ 1.17 | |||
| 1296 | $ 1.00 | |||
| 5184 | $ 0.89 | |||
| 10368 | $ 0.87 | |||
Description
General part information
3010-20 Series
Connector Header Through Hole, Right Angle 20 position 0.100" (2.54mm)
