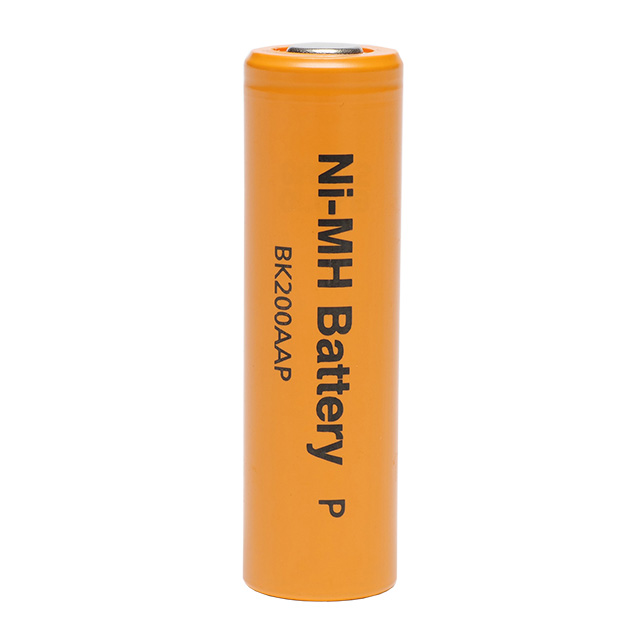

BK-200AAPA1
ActivePanasonic Industrial Automation Sales
BATTERY NIMH 1.2V 1.9AH AA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BK-200AAPA1 |
|---|---|
| Battery Cell Size | AA |
| Battery Chemistry | Nickel Metal Hydride |
| Capacity | 1.9 Ah |
| Discharge Rate | 380 mA |
| Size / Dimension [diameter] | 14.5 mm |
| Size / Dimension [diameter] | 0.57 in |
| Size / Dimension [z] | 1.99 in |
| Size / Dimension [z] | 50.5 mm |
| Standard Charge Current | 190 mA |
| Standard Charge Time | 16 Hrs |
| Termination Style | Flat Top (Non-Extending) |
| Voltage - Rated | 1.2 V |
| Weight | 29.03 g |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 4.48 | |
| 20 | $ 3.51 | |||
| 40 | $ 3.31 | |||
| 100 | $ 3.07 | |||
| 300 | $ 2.81 | |||
| 500 | $ 2.69 | |||
| 1000 | $ 2.55 | |||
| 2500 | $ 2.36 | |||
Description
General part information
BK-200AAPA Series
AA 1.2 V Nickel Metal Hydride Battery Rechargeable (Secondary) 1.9Ah
