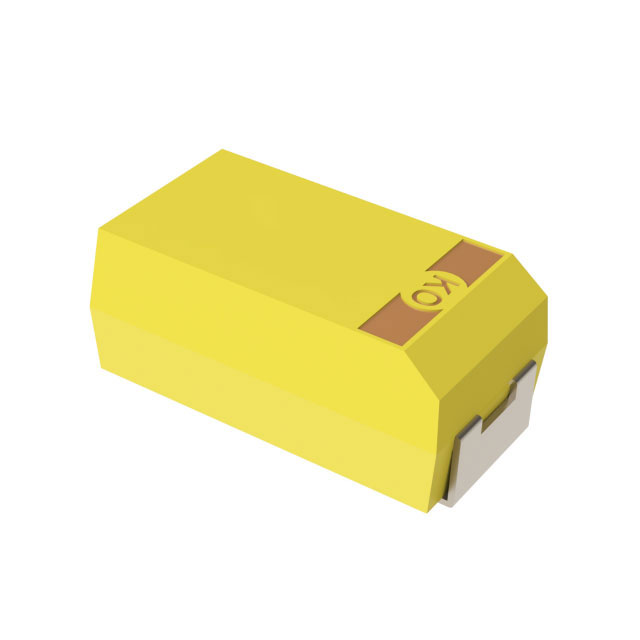

T543X476K035ATE060

Active

KEMET

CAP TANT POLY 47UF 35V 2917

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet T543X476K035ATE060 Spec

T543X476K035ATE060

Active

KEMET

CAP TANT POLY 47UF 35V 2917

Deep-Dive with AI

DocumentsDatasheet T543X476K035ATE060 Spec

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	T543X476K035ATE060

Capacitance	47 µF
ESR (Equivalent Series Resistance)	60 mOhm
Features	High Reliability
Height - Seated (Max) [Max]	0.169 "
Height - Seated (Max) [Max]	4.3 mm
Lifetime @ Temp.	2000 Hrs
Manufacturer Size Code	X
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	7343 Metric
Package / Case	2917
Ratings	COTS
Size / Dimension [x]	0.287 "
Size / Dimension [x]	7.3 mm
Size / Dimension [y]	4.3 mm
Size / Dimension [y]	0.169 "
Tolerance	10 %
Type	Molded
Voltage - Rated	35 V

T543X Series

Part	Features	Mounting Type	Lifetime @ Temp.	Capacitance	Ratings	ESR (Equivalent Series Resistance)	Type	Operating Temperature [Max]	Operating Temperature [Min]	Tolerance	Manufacturer Size Code	Package / Case	Package / Case	Voltage - Rated	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
KEMET T543X477K006ATE005	High Reliability	Surface Mount	2000 Hrs	470 µF	COTS	5 mOhm	Molded	105 ░C	-55 °C	10 %	X	7343 Metric	2917	6.3 V	4.3 mm	0.287 "	7.3 mm	0.169 "	0.169 "	4.3 mm
KEMET T543X336K050AHW040	High Reliability	Surface Mount	2000 Hrs	33 ÁF	COTS	40 mOhm	Molded	125 °C	-55 °C	10 %	X	7343 Metric	2917	50 VDC	4.3 mm	0.287 "	7.3 mm	0.169 "	0.169 "	4.3 mm
KEMET T543X337M016AHE025	High Reliability	Surface Mount	2000 Hrs	330 µF	COTS	25 mOhm	Molded	105 ░C	-55 °C	20 %	X	7343 Metric	2917	16 V	4.3 mm	0.287 "	7.3 mm	0.169 "	0.169 "	4.3 mm
KEMET T543X336M050AHW040	High Reliability	Surface Mount	2000 Hrs	33 ÁF	COTS	40 mOhm	Molded	125 °C	-55 °C	20 %	X	7343 Metric	2917	50 VDC	4.3 mm	0.287 "	7.3 mm	0.169 "	0.169 "	4.3 mm
KEMET T543X226M063AHS0757280	High Reliability	Surface Mount	2000 Hrs	22 µF	COTS	75 mOhm	Molded	105 ░C	-55 °C	20 %	X	7343 Metric	2917	63 V	4.3 mm	0.287 "	7.3 mm	0.169 "	0.169 "	4.3 mm
KEMET T543X476K035ATE060	High Reliability	Surface Mount	2000 Hrs	47 µF	COTS	60 mOhm	Molded	125 °C	-55 °C	10 %	X	7343 Metric	2917	35 V	4.3 mm	0.287 "	7.3 mm	0.169 "	0.169 "	4.3 mm
KEMET T543X107M025ATE060	High Reliability	Surface Mount	2000 Hrs	100 µF	COTS	60 mOhm	Molded	105 ░C	-55 °C	20 %	X	7343 Metric	2917	25 VDC	4.3 mm	0.287 "	7.3 mm	0.169 "	0.169 "	4.3 mm
KEMET T543X226M063AHE0757280	High Reliability	Surface Mount	2000 Hrs	22 µF	COTS	75 mOhm	Molded	105 ░C	-55 °C	20 %	X	7343 Metric	2917	63 V	4.3 mm	0.287 "	7.3 mm	0.169 "	0.169 "	4.3 mm
KEMET T543X226M063AHW0757280	High Reliability	Surface Mount	2000 Hrs	22 µF	COTS	75 mOhm	Molded	105 ░C	-55 °C	20 %	X	7343 Metric	2917	63 V	4.3 mm	0.287 "	7.3 mm	0.169 "	0.169 "	4.3 mm
KEMET T543X156M063AHE035	High Reliability	Surface Mount	2000 Hrs	15 µF	COTS	35 mOhm	Molded	105 ░C	-55 °C	20 %	X	7343 Metric	2917	63 V	4.3 mm	0.287 "	7.3 mm	0.169 "	0.169 "	4.3 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 12.20
		10	$ 11.29
		50	$ 9.76
		100	$ 8.79
	Digi-Reel®	1	$ 12.20
		10	$ 11.29
		50	$ 9.76
		100	$ 8.79
	Tape & Reel (TR)	500	$ 8.11
		1000	$ 7.63

Description

General part information

T543X Series

47 µF Molded Tantalum Polymer Capacitor 35 V 2917 (7343 Metric) 60mOhm @ 100kHz
