C8051F565-IMR

Obsolete

Silicon Labs

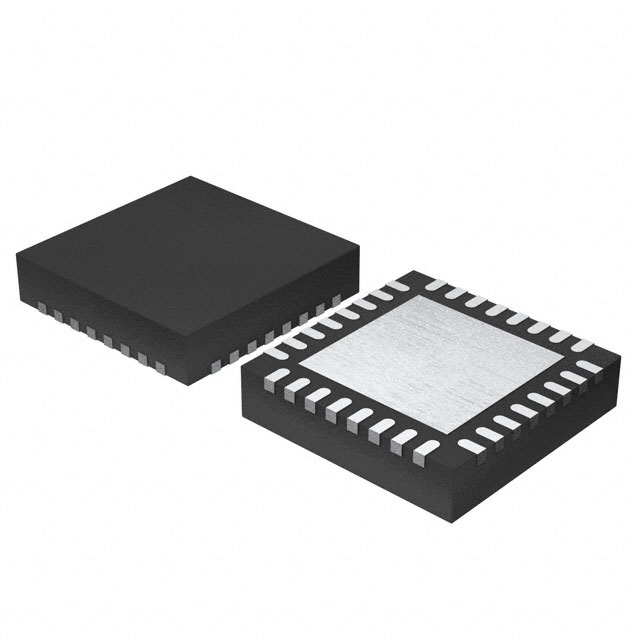

IC MCU 8BIT 16KB FLASH 32QFN

Search across all available documentation for this part.

Obsolete

Silicon Labs

IC MCU 8BIT 16KB FLASH 32QFN

Technical Specifications

Parameters and characteristics for this part

Specification	C8051F565-IMR

Connectivity	SMBus (2-Wire/I2C), UART/USART, CANbus, SPI
Core Processor	8051
Core Size	8-Bit
Data Converters [custom]	25
Data Converters [custom]	12 b
Mounting Type	Surface Mount
Number of I/O	25
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Oscillator Type	Internal
Package / Case	32-VFQFN Exposed Pad
Peripherals	PWM, WDT, POR, Temp Sensor
Program Memory Size	16 KB
Program Memory Type	FLASH
RAM Size	2.25 K
Speed	50 MHz
Supplier Device Package	32-QFN (5x5)
Voltage - Supply (Vcc/Vdd) [Max]	5.25 V
Voltage - Supply (Vcc/Vdd) [Min]	1.8 V

Part	Operating Temperature [Min]	Operating Temperature [Max]	RAM Size	Speed	Program Memory Type	Package / Case	Mounting Type	Peripherals	Number of I/O	Supplier Device Package	Oscillator Type	Core Size	Data Converters [custom]	Data Converters [custom]	Core Processor	Program Memory Size	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Supply (Vcc/Vdd) [Max]	Connectivity
Silicon Labs C8051F565-IMR	-40 °C	125 °C	2.25 K	50 MHz	FLASH	32-VFQFN Exposed Pad	Surface Mount	POR PWM Temp Sensor WDT	25	32-QFN (5x5)	Internal	8-Bit	25	12 b	8051	16 KB	1.8 V	5.25 V	CANbus SMBus (2-Wire/I2C) SPI UART/USART

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

8051 C8051F56x Microcontroller IC 8-Bit 50MHz 16KB (16K x 8) FLASH 32-QFN (5x5)
