SPMWH3327FS7GAT3SF

Active

Samsung Semiconductor, Inc.

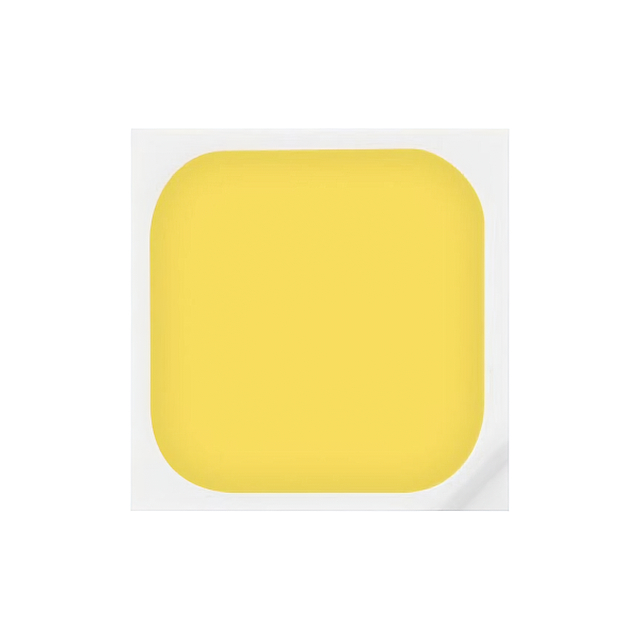

LED LM302D NEUT WHT 4000K 3030

Search across all available documentation for this part.

Active

Samsung Semiconductor, Inc.

LED LM302D NEUT WHT 4000K 3030

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SPMWH3327FS7GAT3SF	SPMWH3327 Series

CCT (K)	4000 K	2700 - 4000 K
Color	Neutral, White	White, Warm, Neutral
CRI (Color Rendering Index)	90	90
Current - Max [Max]	200 mA	200 mA
Current - Test	150 mA	150 mA
Height - Seated (Max) [Max] [z]	0.03 in	0.03 in
Height - Seated (Max) [Max] [z]	0.75 mm	0.75 mm
Lumens/Watt @ Current - Test	139 lm/W	139 lm/W
Mounting Type	Surface Mount	Surface Mount
Package / Case	1212	1212
Package / Case	3030 Metric	3030 Metric
Size / Dimension [x]	0.118 in	0.118 in
Size / Dimension [x]	3 mm	3 mm
Size / Dimension [y]	3 mm	3 mm
Size / Dimension [y]	0.118 in	0.118 in
Supplier Device Package	3030	3030
Thermal Resistance of Package [custom]	12 °C/W	12 °C/W
Viewing Angle	120 °	120 °
Voltage - Forward (Vf) (Typ)	6.2 V	6.2 V

LED LM302D WARM WHT 2700K 3030

Part	Voltage - Forward (Vf) (Typ)	Current - Test	CCT (K)	Viewing Angle	Lumens/Watt @ Current - Test	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Color	Package / Case	Package / Case	Thermal Resistance of Package [custom]	CRI (Color Rendering Index)	Supplier Device Package	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Mounting Type	Current - Max [Max]
Samsung Semiconductor, Inc. SPMWH3327FS7GAW3SF	6.2 V	150 mA	2700 K	120 °	139 lm/W	0.03 in	0.75 mm	Warm, White	1212	3030 Metric	12 °C/W	90	3030	0.118 in	3 mm	3 mm	0.118 in	Surface Mount	200 mA
Samsung Semiconductor, Inc. SPMWH3327FS7GAT3SF	6.2 V	150 mA	4000 K	120 °	139 lm/W	0.03 in	0.75 mm	Neutral, White	1212	3030 Metric	12 °C/W	90	3030	0.118 in	3 mm	3 mm	0.118 in	Surface Mount	200 mA
Samsung Semiconductor, Inc. SPMWH3327FS7GAU3SF	6.2 V	150 mA	3500 K	120 °	139 lm/W	0.03 in	0.75 mm	Warm, White	1212	3030 Metric	12 °C/W	90	3030	0.118 in	3 mm	3 mm	0.118 in	Surface Mount	200 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Lighting LM302D White, Neutral 4000K 3-Step MacAdam Ellipse 6.2V 150mA 120° 1212 (3030 Metric)
