R112075000

Active

Radiall USA, Inc.

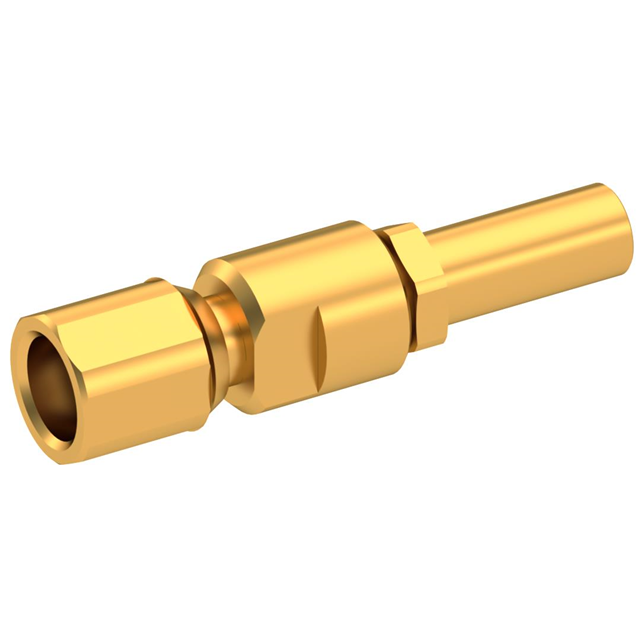

RF SMC CONNECTOR, FEMALE, CABLE MOUNT, CRIMP TERMINAL, PLUG

Search across all available documentation for this part.

Active

Radiall USA, Inc.

RF SMC CONNECTOR, FEMALE, CABLE MOUNT, CRIMP TERMINAL, PLUG

Technical Specifications

Parameters and characteristics for this part

Specification	R112075000

Body Finish	Gold
Body Material	Brass
Cable Group	RG-179, 188, 187, 316
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMC
Connector Type	Plug, Female Socket
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	10 GHz
Housing Color	Gold
Impedance	50 Ohms
Insertion Loss	0.25 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp

Part	Mating Cycles	Connector Style	Dielectric Material	Body Material	Center Contact Plating	Shield Termination	Impedance	Center Contact Material	Insertion Loss	Body Finish	Frequency - Max [Max]	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Contact Termination	Housing Color	Cable Group	Number of Ports
Radiall USA, Inc. R112075000	500	SMC	Polytetrafluoroethylene (PTFE)	Brass	Gold	Crimp	50 Ohms	Beryllium Copper	0.25 dB	Gold	10 GHz	Female Socket Plug	-65 ░C	165 °C	Free Hanging (In-Line)	Crimp	Gold	187 188 316 RG-179	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMC Connector Plug, Female Socket 50 Ohms Free Hanging (In-Line) Crimp
