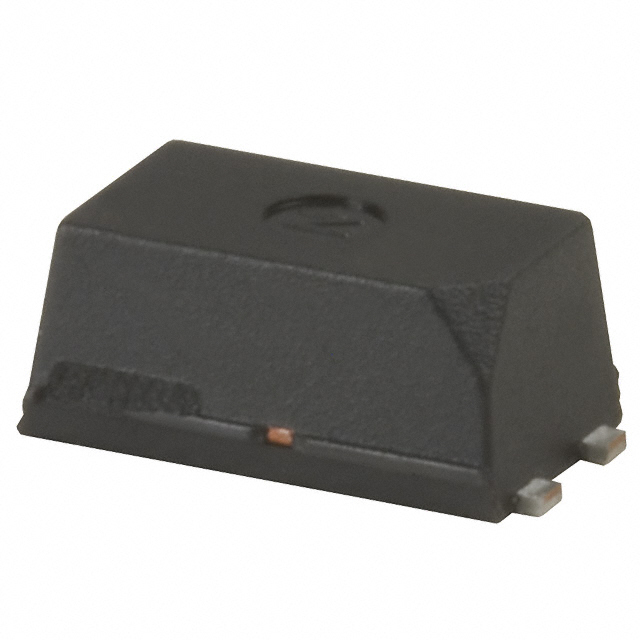

PS7802-1A-A

Obsolete

CEL

SSR RELAY SPST-NO 250MA 0-40V

Search across all available documentation for this part.

Obsolete

CEL

SSR RELAY SPST-NO 250MA 0-40V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Solid State SPST-NO (1 Form A) 4-SMD (0.165", 4.20mm)

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

SSR RELAY SPST-NO 250MA 0-40V

Part	Supplier Device Package	Output Type	On-State Resistance (Max) [Max]	Voltage - Input	Package / Case	Package / Case	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Load Current	Mounting Type	Approval Agency	Termination Style
CEL PS7802-1A-A	4-Ultra Small Flatlead	AC, DC	1.6 Ohms	1.1 VDC	0.165 in	4.2 mm	4-SMD	85 °C	-40 °C	250 mA	Surface Mount	UL	SMD (SMT) Tab
CEL PS7802B-1A-A	4-Ultra Small Flatlead	AC, DC		1.1 VDC	0.165 in	4.2 mm	4-SMD	85 °C	-40 °C	240 mA	Surface Mount	UL	SMD (SMT) Tab
CEL PS7802-1A-F3-A	4-Ultra Small Flatlead	AC, DC	1.6 Ohms	1.1 VDC	0.165 in	4.2 mm	4-SMD	85 °C	-40 °C	250 mA	Surface Mount	UL	SMD (SMT) Tab
