132284RP

Active

Amphenol RF

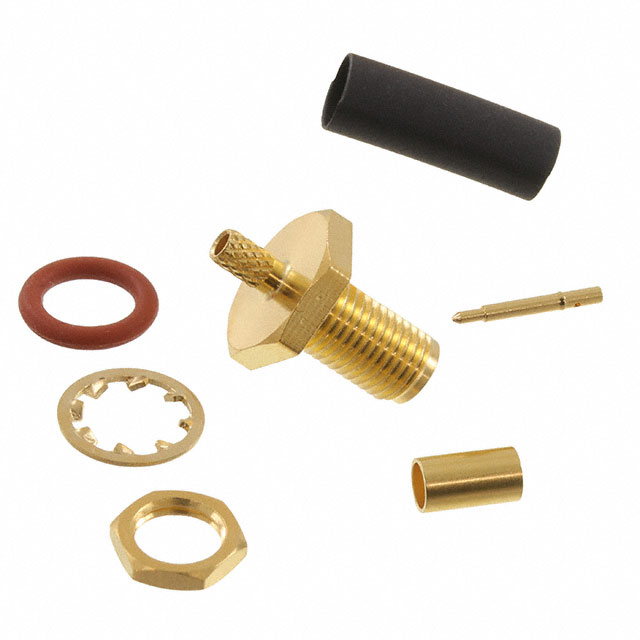

CONN RPSMA JACK STR 50OHM SOLDER

Search across all available documentation for this part.

Active

Amphenol RF

CONN RPSMA JACK STR 50OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	132284RP

Body Finish	Gold
Body Material	Brass
Cable Group	188, 188A, 316, LMR-100, M17/119-RG174, RG-174
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	RP-SMA
Connector Type	Male Pin, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	12.4 GHz
Housing Color	Gold
Impedance	50 Ohms
Ingress Protection	Weatherproof
Mating Cycles	500
Mounting Feature	Bulkhead - Front Side Nut
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	375 V

Part	Body Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Termination	Voltage Rating	Dielectric Material	Body Finish	Center Contact Plating	Connector Type	Impedance	Mounting Feature	Shield Termination	Mating Cycles	Housing Color	Ingress Protection	Cable Group	Connector Style	Frequency - Max [Max]	Number of Ports	Center Contact Material
Amphenol RF 132284RP	Brass	-65 ░C	165 °C	Solder	375 V	Polytetrafluoroethylene (PTFE)	Gold	Gold	Jack Male Pin	50 Ohms	Bulkhead - Front Side Nut	Crimp	500	Gold	Weatherproof	188 188A 316 LMR-100 M17/119-RG174 RG-174	RP-SMA	12.4 GHz	1	Beryllium Copper

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RP-SMA Connector Jack, Male Pin 50 Ohms Panel Mount Solder
