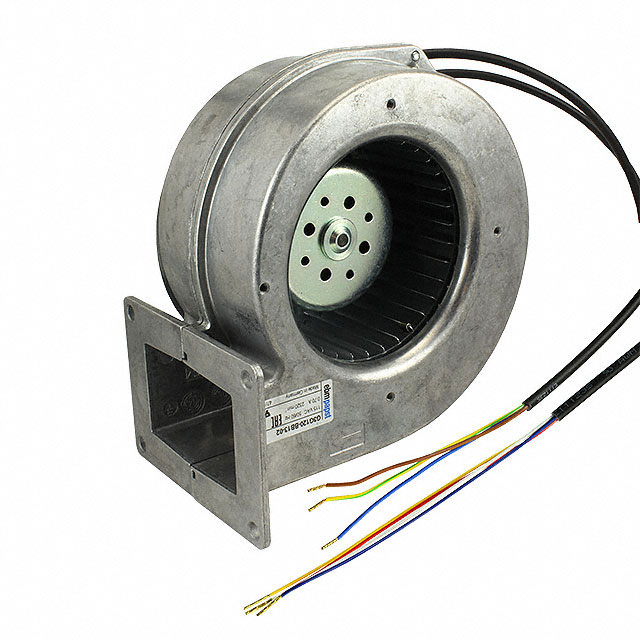

G3G120-BB13-02

Obsolete

ebm-papst Inc.

FAN BLWR CENT 178X115MM 115VAC

Search across all available documentation for this part.

Obsolete

ebm-papst Inc.

FAN BLWR CENT 178X115MM 115VAC

Technical Specifications

Parameters and characteristics for this part

Specification	G3G120-BB13-02

Approval Agency	UL, GOST
Bearing Type	Ball
Current Rating (Amps)	0.7 A
Fan Type	Blower, Centrifugal
Features	Speed Sensor (Tach), PWM Control
Ingress Protection	IP44
Material - Blade	Aluminum
Material - Frame	Aluminum
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-25 °C
Power (Watts)	46 W
RPM	2320 RPM
Size / Dimension	Rectangular/Rounded
Size / Dimension [x]	178 mm
Size / Dimension [z]	193 mm
Voltage - Rated	115 VAC
Weight	4 lbs
Weight	1.8 kg
Width [y]	115 mm

Part	Voltage - Rated	Operating Temperature [Min]	Operating Temperature [Max]	Fan Type	Features	Weight	Weight	Power (Watts)	Bearing Type	Ingress Protection	Approval Agency	Material - Frame	Size / Dimension [z]	Size / Dimension	Size / Dimension [x]	RPM	Material - Blade	Width [y]	Current Rating (Amps)	Termination
ebm-papst Inc. G3G120-BB13-02	115 VAC	-25 °C	60 °C	Blower Centrifugal	PWM Control Speed Sensor (Tach)	4 lbs	1.8 kg	46 W	Ball	IP44	GOST UL	Aluminum	193 mm	Rectangular/Rounded	178 mm	2320 RPM	Aluminum	115 mm	0.7 A
ebm-papst Inc. G3G120-BB03-16	230 VAC	-25 °C	60 °C	Blower Centrifugal				41 W	Ball	IP44	CSA EAC UL	Aluminum	193.5 mm	Rectangular/Rounded	178 mm	2200 RPM	Steel	229 mm		3 Wire Leads 4 Wire Leads
