MS183-20C

Active

Masach Tech Ltd.

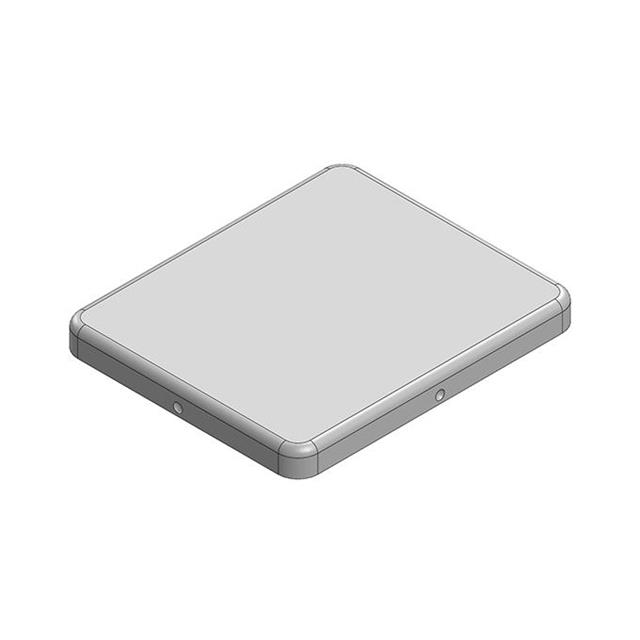

RF SHIELD 0.622X0.736" SNAP FIT

Search across all available documentation for this part.

Active

Masach Tech Ltd.

RF SHIELD 0.622X0.736" SNAP FIT

Technical Specifications

Parameters and characteristics commom to parts in this series

RF SHIELD 0.606"X0.720" SOLDER

Part	Type	Height - Overall [z]	Height - Overall [z]	Mounting Type	Ventilation	Width - Overall [y]	Width - Overall [y]	Length - Overall [x]	Length - Overall [x]	Length - Overall [x]
Masach Tech Ltd. MS183-20F	Frame	0.075 in	1.9 mm	Solder	Non-Vented	15.4 mm	0.606 in	0.72 in	18.3 mm
Masach Tech Ltd. MS183-20S	Shield, 1-Piece	0.075 in	1.9 mm	Solder	Non-Vented	15.4 mm	0.606 in	0.72 in	18.3 mm
Masach Tech Ltd. MS183-20C	Cover	0.067 "	1.7 mm	Snap Fit	Non-Vented	15.8 mm	0.622 in	18.7 mm		0.736 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF Shield Cover 0.622" (15.80mm) X 0.736" (18.70mm) Non-Vented Snap Fit
