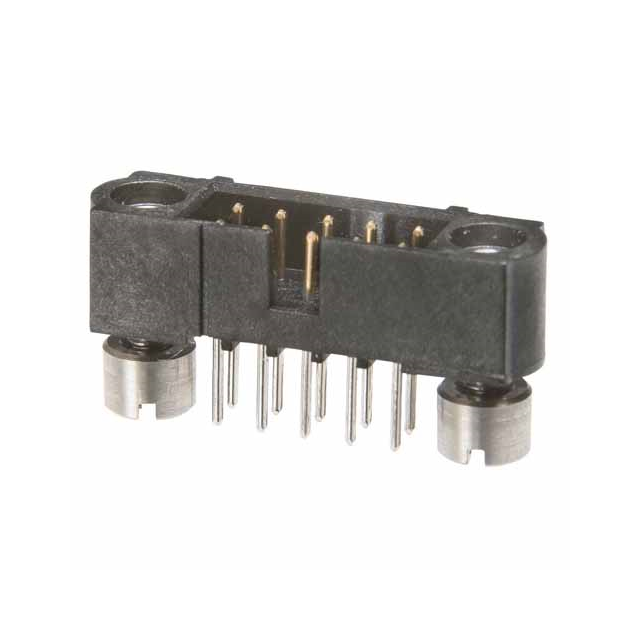

M80-5115022
ActiveHarwin Inc.
CONN HEADER VERT 50POS 2MM
Deep-Dive with AI
Search across all available documentation for this part.
M80-5115022
ActiveHarwin Inc.
CONN HEADER VERT 50POS 2MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M80-5115022 |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin-Lead |
| Contact Finish Thickness - Mating | 29.5 Áin |
| Contact Finish Thickness - Mating | 0.75 Ám |
| Contact Finish Thickness - Post | 3 µm |
| Contact Finish Thickness - Post | 118.1 µin |
| Contact Length - Post | 0.173 in |
| Contact Length - Post | 4.4 mm |
| Contact Material | Phosphor Bronze |
| Contact Shape | Circular |
| Contact Type | Male Pin |
| Current Rating (Amps) | 2.2 A |
| Features | Mounting Flange, Mating Flange, Mounting Hardware, Keying Slot |
| Insulation Color | Black |
| Insulation Height | 5.6 mm |
| Insulation Height | 0.22 in |
| Insulation Material | Polyphenylene Sulfide (PPS), Glass Filled |
| Mated Stacking Heights | 14.75 mm, 10.75 mm, 13.35 mm, 7.3 mm, 7.7 mm, 9.75 mm |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 50 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch - Mating [x] | 0.079 in |
| Pitch - Mating [x] | 2 mm |
| Row Spacing - Mating | 0.079 in |
| Row Spacing - Mating | 2 mm |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Board, Cable |
| Termination | Solder |
| Voltage Rating | 800 V |
M80-511 Series
| Part | Features | Insulation Height | Insulation Height | Insulation Color | Termination | Contact Shape | Pitch - Mating [x] | Pitch - Mating [x] | Contact Length - Post | Contact Length - Post | Contact Type | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Shrouding | Contact Material | Mated Stacking Heights | Row Spacing - Mating | Row Spacing - Mating | Voltage Rating | Insulation Material | Current Rating (Amps) | Contact Finish - Post | Material Flammability Rating | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions Loaded | Mounting Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Number of Rows | Style | Connector Type | Number of Positions | Contact Finish - Mating | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Harwin Inc. | Keying Slot Mating Flange Mounting Flange Mounting Hardware | 5.6 mm | 0.22 in | Black | Solder | Circular | 0.079 in | 2 mm | 0.173 in | 4.4 mm | Male Pin | 3 µm | 118.1 µin | Shrouded - 4 Wall | Phosphor Bronze | 7.3 mm 7.7 mm 9.75 mm 10.75 mm 13.35 mm 14.75 mm | 0.079 in | 2 mm | 800 V | Polyphenylene Sulfide (PPS) Glass Filled | 2.2 A | Tin-Lead | UL94 V-0 | -55 °C | 125 °C | All | Through Hole | 29.5 Áin | 0.75 Ám | 2 | Board to Board Cable | Header | 20 | Gold | |
Harwin Inc. | Keying Slot Mating Flange Mounting Flange Mounting Hardware | 5.6 mm | 0.22 in | Black | Solder | Circular | 0.079 in | 2 mm | 0.173 in | 4.4 mm | Male Pin | 3 µm | 118.1 µin | Shrouded - 4 Wall | Phosphor Bronze | 7.3 mm 7.7 mm 9.75 mm 10.75 mm 13.35 mm 14.75 mm | 0.079 in | 2 mm | 800 V | Polyphenylene Sulfide (PPS) Glass Filled | 2.2 A | Tin | UL94 V-0 | -55 °C | 125 °C | All | Through Hole | 29.5 Áin | 0.75 Ám | 2 | Board to Board Cable | Header | Gold | 16 | |
Harwin Inc. | Keying Slot Mating Flange Mounting Flange Mounting Hardware | 5.6 mm | 0.22 in | Black | Solder | Circular | 0.079 in | 2 mm | 0.173 in | 4.4 mm | Male Pin | 3 µm | 118.1 µin | Shrouded - 4 Wall | Phosphor Bronze | 7.3 mm 7.7 mm 9.75 mm 10.75 mm 13.35 mm 14.75 mm | 0.079 in | 2 mm | 800 V | Polyphenylene Sulfide (PPS) Glass Filled | 2.2 A | Tin-Lead | UL94 V-0 | -55 °C | 125 °C | All | Through Hole | 29.5 Áin | 0.75 Ám | 2 | Board to Board Cable | Header | 50 | Gold | |
Harwin Inc. | Keying Slot Mating Flange Mounting Flange Mounting Hardware | 5.6 mm | 0.22 in | Black | Solder | Circular | 0.079 in | 2 mm | 0.173 in | 4.4 mm | Male Pin | 3 µm | 118.1 µin | Shrouded - 4 Wall | Phosphor Bronze | 7.3 mm 7.7 mm 9.75 mm 10.75 mm 13.35 mm 14.75 mm | 0.079 in | 2 mm | 800 V | Polyphenylene Sulfide (PPS) Glass Filled | 2.2 A | Tin-Lead | UL94 V-0 | -55 °C | 125 °C | All | Through Hole | 29.5 Áin | 0.75 Ám | 2 | Board to Board Cable | Header | 4 | Gold | |
Harwin Inc. | Keying Slot Mating Flange Mounting Flange Mounting Hardware | 5.6 mm | 0.22 in | Black | Solder | Circular | 0.079 in | 2 mm | 0.173 in | 4.4 mm | Male Pin | 3 µm | 118.1 µin | Shrouded - 4 Wall | Phosphor Bronze | 7.3 mm 7.7 mm 9.75 mm 10.75 mm 13.35 mm 14.75 mm | 0.079 in | 2 mm | 800 V | Polyphenylene Sulfide (PPS) Glass Filled | 2.2 A | Tin | UL94 V-0 | -55 °C | 125 °C | All | Through Hole | 29.5 Áin | 0.75 Ám | 2 | Board to Board Cable | Header | 6 | Gold | |
Harwin Inc. | Keying Slot Mating Flange Mounting Flange Mounting Hardware | 5.6 mm | 0.22 in | Black | Solder | Circular | 0.079 in | 2 mm | 0.173 in | 4.4 mm | Male Pin | 3 µm | 118.1 µin | Shrouded - 4 Wall | Phosphor Bronze | 7.3 mm 7.7 mm 9.75 mm 10.75 mm 13.35 mm 14.75 mm | 0.079 in | 2 mm | 800 V | Polyphenylene Sulfide (PPS) Glass Filled | 2.2 A | Tin | UL94 V-0 | -55 °C | 125 °C | All | Through Hole | 2 | Board to Board Cable | Header | 6 | Gold | |||
Harwin Inc. | Keying Slot Mating Flange Mounting Flange Mounting Hardware | 5.6 mm | 0.22 in | Black | Solder | Circular | 0.079 in | 2 mm | 0.173 in | 4.4 mm | Male Pin | 3 µm | 118.1 µin | Shrouded - 4 Wall | Phosphor Bronze | 7.3 mm 7.7 mm 9.75 mm 10.75 mm 13.35 mm 14.75 mm | 0.079 in | 2 mm | 800 V | Polyphenylene Sulfide (PPS) Glass Filled | 2.2 A | Tin-Lead | UL94 V-0 | -55 °C | 125 °C | All | Through Hole | 29.5 Áin | 0.75 Ám | 2 | Board to Board Cable | Header | 18 | Gold | |
Harwin Inc. | Keying Slot Mating Flange Mounting Flange Mounting Hardware | 5.6 mm | 0.22 in | Black | Solder | Circular | 0.079 in | 2 mm | 0.173 in | 4.4 mm | Male Pin | 3 µm | 118.1 µin | Shrouded - 4 Wall | Phosphor Bronze | 7.3 mm 7.7 mm 9.75 mm 10.75 mm 13.35 mm 14.75 mm | 0.079 in | 2 mm | 800 V | Polyphenylene Sulfide (PPS) Glass Filled | 2.2 A | Tin | UL94 V-0 | -55 °C | 125 °C | All | Through Hole | 2 | Board to Board Cable | Header | 4 | Gold | |||
Harwin Inc. | Keying Slot Mating Flange Mounting Flange Mounting Hardware | 5.6 mm | 0.22 in | Black | Solder | Circular | 0.079 in | 2 mm | 0.173 in | 4.4 mm | Male Pin | 3 µm | 118.1 µin | Shrouded - 4 Wall | Phosphor Bronze | 7.3 mm 7.7 mm 9.75 mm 10.75 mm 13.35 mm 14.75 mm | 0.079 in | 2 mm | 800 V | Polyphenylene Sulfide (PPS) Glass Filled | 2.2 A | Tin-Lead | UL94 V-0 | -55 °C | 125 °C | All | Through Hole | 29.5 Áin | 0.75 Ám | 2 | Board to Board Cable | Header | 12 | Gold | |
Harwin Inc. | Keying Slot Mating Flange Mounting Flange Mounting Hardware | 5.6 mm | 0.22 in | Black | Solder | Circular | 0.079 in | 2 mm | 0.173 in | 4.4 mm | Male Pin | 3 µm | 118.1 µin | Shrouded - 4 Wall | Phosphor Bronze | 7.3 mm 7.7 mm 9.75 mm 10.75 mm 13.35 mm 14.75 mm | 0.079 in | 2 mm | 800 V | Polyphenylene Sulfide (PPS) Glass Filled | 2.2 A | Tin-Lead | UL94 V-0 | -55 °C | 125 °C | All | Through Hole | 29.5 Áin | 0.75 Ám | 2 | Board to Board Cable | Header | 10 | Gold |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
M80-511 Series
Connector Header Through Hole 50 position 0.079" (2.00mm)
