627-2W2-224-4NA
ActiveEDAC Inc.

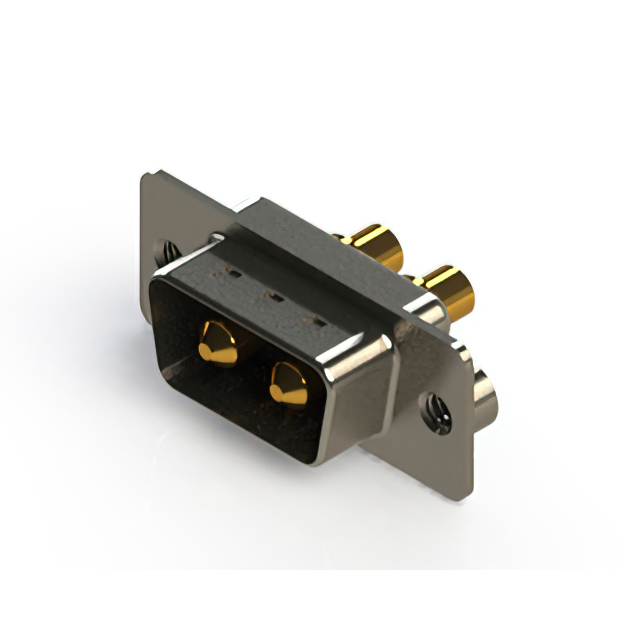

COMBINATION LAYOUT D SUB CONNECTOR, 627C SERIES, DE-2W2, PLUG, 2 CONTACTS, 2 POWER, SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
627-2W2-224-4NA
ActiveEDAC Inc.
COMBINATION LAYOUT D SUB CONNECTOR, 627C SERIES, DE-2W2, PLUG, 2 CONTACTS, 2 POWER, SOLDER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 627-2W2-224-4NA |
|---|---|
| Color | Black |
| Connector Style | D-Sub, Combo |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Material | Copper Alloy |
| Contact Type | Power |
| Current Rating (Amps) | 40 A |
| Dielectric Material | Polyester Thermoplastic |
| Features | Grounding Indents, Shielded |
| Flange Feature | Board Side (M3) |
| Material Flammability Rating | UL94 V-0 |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout | 2WK2, 1 (DE, E), 2V2, 2W2C, 2W2 |
| Termination | Solder |
| Voltage Rating | 125 VDC |
627-2W2 Series
...
| Part | Contact Type | Flange Feature | Number of Positions | Connector Type | Voltage Rating | Termination | Shell Material, Finish | Color | Number of Rows | Current Rating (Amps) | Contact Finish Thickness | Operating Temperature [Min] | Operating Temperature [Max] | Material Flammability Rating | Dielectric Material | Contact Finish | Shell Size, Connector Layout | Mounting Type | Contact Material | Connector Style | Features | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Power | 4-40 | 2 | Male Pins Plug | 125 VDC | Solder | Nickel Plated Steel | Black | 1 | 40 A | Flash | -55 °C | 125 °C | UL94 V-0 | Polyester Thermoplastic | Gold | 1 (DE E) 2V2 2W2 2W2C 2WK2 | Panel Mount Through Hole | Copper Alloy | Combo D-Sub | Board Lock Grounding Indents Shielded | ||
EDAC Inc. | Power | 4-40 Board Side | 2 | Male Pins Plug | 125 VDC | Black | 1 | 10 A | -55 °C | 125 °C | UL94 V-0 | Polyester Thermoplastic | Gold | 1 (DE E) 2V2 2W2 2W2C 2WK2 | Free Hanging (In-Line) | Copper Alloy | Combo D-Sub | Grounding Indents Shielded | 0.76 Ám | 30 Áin | |||
EDAC Inc. | Power | 4-40 Board Side | 2 | Male Pins Plug | 125 VDC | Nickel Plated Steel | Black | 1 | 20 A | -55 °C | 125 °C | UL94 V-0 | Polyester Thermoplastic | Gold | 1 (DE E) 2V2 2W2 2W2C 2WK2 | Free Hanging (In-Line) | Copper Alloy | Combo D-Sub | Grounding Indents Shielded | 0.76 Ám | 30 Áin | ||
EDAC Inc. | Power | Housing/Shell (Unthreaded) | 2 | Male Pins Plug | 125 VDC | Black | 1 | 10 A | Flash | -55 °C | 125 °C | UL94 V-0 | Polyester Thermoplastic | Gold | 1 (DE E) 2V2 2W2 2W2C 2WK2 | Free Hanging (In-Line) | Copper Alloy | Combo D-Sub | Grounding Indents Shielded | ||||
EDAC Inc. | Power | Housing/Shell (Unthreaded) | 2 | Male Pins Plug | 125 VDC | Black | 1 | 40 A | -55 °C | 125 °C | UL94 V-0 | Polyester Thermoplastic | Gold | 1 (DE E) 2V2 2W2 2W2C 2WK2 | Free Hanging (In-Line) | Copper Alloy | Combo D-Sub | Grounding Indents Shielded | 0.76 Ám | 30 Áin | |||
EDAC Inc. | Power | Board Side (M3) | 2 | Male Pins Plug | 125 VDC | Nickel Plated Steel | Black | 1 | 40 A | -55 °C | 125 °C | UL94 V-0 | Polyester Thermoplastic | Gold | 1 (DE E) 2V2 2W2 2W2C 2WK2 | Free Hanging (In-Line) | Copper Alloy | Combo D-Sub | Grounding Indents Shielded | 0.76 Ám | 30 Áin | ||
EDAC Inc. | Power | Board Side (M3) | 2 | Male Pins Plug | 125 VDC | Solder | Nickel Plated Steel | Black | 1 | 40 A | Flash | -55 °C | 125 °C | UL94 V-0 | Polyester Thermoplastic | Gold | 1 (DE E) 2V2 2W2 2W2C 2WK2 | Copper Alloy | Combo D-Sub | Grounding Indents Shielded | |||
EDAC Inc. | Power | Board Side (M3) | 2 | Male Pins Plug | 125 VDC | Solder | Nickel Plated Steel | Black | 1 | 10 A | -55 °C | 125 °C | UL94 V-0 | Polyester Thermoplastic | Gold | 1 (DE E) 2V2 2W2 2W2C 2WK2 | Copper Alloy | Combo D-Sub | Grounding Indents Shielded | 0.76 Ám | 30 Áin | ||
EDAC Inc. | Power | 4-40 Board Side | 2 | Male Pins Plug | 125 VDC | Solder | Nickel Plated Steel | Black | 1 | 20 A | Flash | -55 °C | 125 °C | UL94 V-0 | Polyester Thermoplastic | Gold | 1 (DE E) 2V2 2W2 2W2C 2WK2 | Through Hole | Copper Alloy | Combo D-Sub | Board Lock Grounding Indents Shielded | ||
EDAC Inc. | Power | Housing/Shell (Unthreaded) | 2 | Male Pins Plug | 125 VDC | Nickel Plated Steel | Black | 1 | 10 A | -55 °C | 125 °C | UL94 V-0 | Polyester Thermoplastic | Gold | 1 (DE E) 2V2 2W2 2W2C 2WK2 | Free Hanging (In-Line) | Copper Alloy | Combo D-Sub | Grounding Indents Shielded | 0.76 Ám | 30 Áin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
627-2W2 Series
2 (Power) Position D-Sub, Combo Plug, Male Pins Connector
