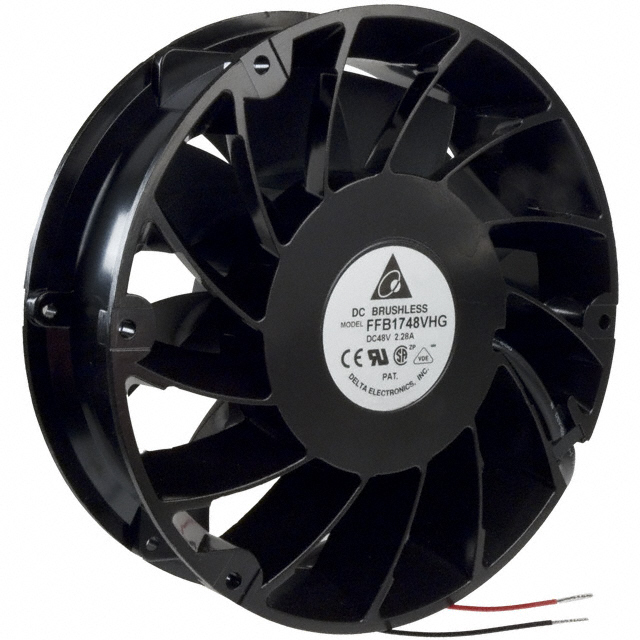

FFB1748VHG
ObsoleteDelta Electronics
FAN AXIAL 172X50.8MM 48VDC WIRE
Deep-Dive with AI
Search across all available documentation for this part.
FFB1748VHG
ObsoleteDelta Electronics
FAN AXIAL 172X50.8MM 48VDC WIRE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | FFB1748VHG |
|---|---|
| Air Flow | 432.8 CFM |
| Air Flow | 12.12 m³/min |
| Approval Agency | UL, CE, VDE, CSA |
| Bearing Type | Ball |
| Current Rating (Amps) | 1.9 A |
| Fan Type | Tubeaxial |
| Material - Blade | Plastic |
| Material - Frame | Aluminum |
| Noise | 72 dB(A) |
| Power (Watts) | 91.2 W |
| RPM | 4600 RPM |
| Size / Dimension | Round |
| Size / Dimension [diameter] | 172 mm |
| Static Pressure | 1.578 in H2O |
| Static Pressure | 393.1 Pa |
| Termination | 2 Wire Leads |
| Voltage - Rated [custom] | 48 VDC |
| Voltage Range [Max] | 54 VDC |
| Voltage Range [Min] | 26 VDC |
| Weight | 952.5 g |
| Weight | 2.1 lb |
| Width [y] | 2 " |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
FFB1748 Series
Fan Tubeaxial 48VDC Round - 172mm Dia Ball 432.8 CFM (12.12m³/min) 2 Wire Leads
