8737 060U500

Active

Belden Inc.

2 #22 PVC SHLD PVC

Search across all available documentation for this part.

Active

Belden Inc.

2 #22 PVC SHLD PVC

Technical Specifications

Parameters and characteristics for this part

Specification	8737 060U500

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	30 AWG
Jacket (Insulation) Diameter [diameter]	4.57 mm
Jacket (Insulation) Diameter [diameter]	0.18 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.025 in
Jacket (Insulation) Thickness	0.635 mm
Jacket Color	Chrome
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	2
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Ratings	UL Style CMG
Shield Coverage	85 %
Shield Material	Copper, Tinned
Shield Type	Spiral
Usage	Audio, Instrumentation
Voltage	300 V
Wire Gauge	22 AWG

Part	Conductor Material	Shield Material	Cable Type	Shield Type	Jacket Color	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Insulation	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Usage	Ratings	Wire Gauge	Operating Temperature [Min]	Operating Temperature [Max]	Voltage	Shield Coverage	Length [x]	Length [x]	Number of Conductors	Jacket (Insulation) Material	Length	Length
Belden Inc. 8737 060U500	Copper Tinned	Copper Tinned	Multi-Conductor	Spiral	Chrome	0.025 in	0.635 mm	Poly-Vinyl Chloride (PVC)	7	30 AWG	4.57 mm	0.18 in	Audio Instrumentation	UL Style CMG	22 AWG	-20 C	80 C	300 V	85 %	500 '	152.4 m	2	Poly-Vinyl Chloride (PVC)
Belden Inc. 8737 0601000	Copper Tinned	Copper Tinned	Multi-Conductor	Spiral	Chrome	0.025 in	0.635 mm	Poly-Vinyl Chloride (PVC)	7	30 AWG	4.57 mm	0.18 in	Audio Instrumentation	UL Style CMG	22 AWG	-20 C	80 C	300 V	85 %			2	Poly-Vinyl Chloride (PVC)	1000 ft	304.8 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	500	$ 1.54

General part information

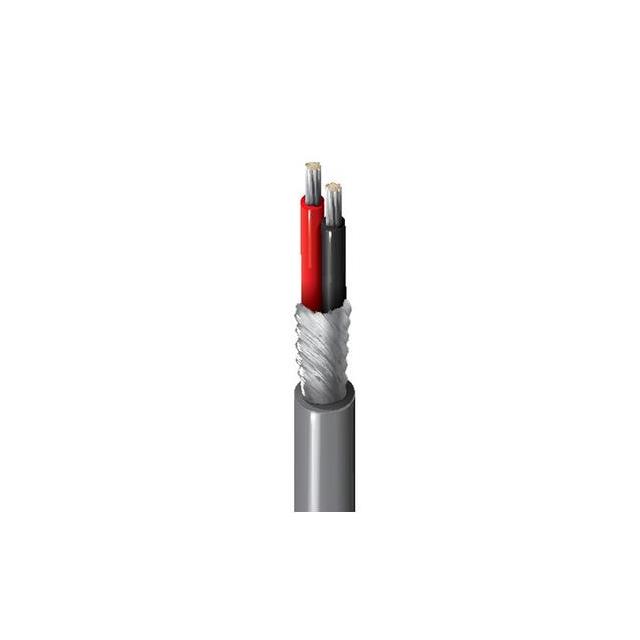

2 (1 Pair Twisted) Conductor Multi-Conductor Cable Chrome 22 AWG Spiral 500.0' (152.4m)
