5-104363-8
ActiveTE Connectivity AMP Connectors

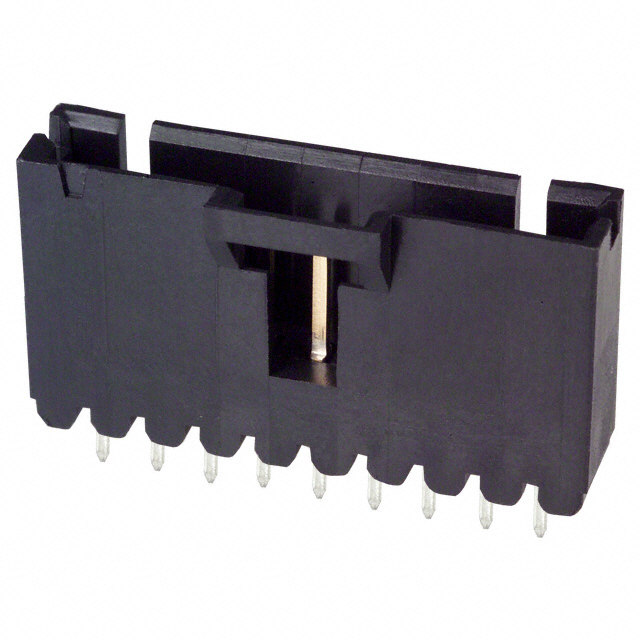

CONN HEADER VERT 9POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
5-104363-8
ActiveTE Connectivity AMP Connectors
CONN HEADER VERT 9POS 2.54MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 5-104363-8 | 104363 Series |
|---|---|---|
| Applications | Medical, General Purpose, Automotive, Telecommunications | Medical, General Purpose, Automotive, Telecommunications |
| Connector Type | Header | Header |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish - Post | Tin | Tin, Tin-Lead |
| Contact Finish Thickness - Mating | 15 µin | 15 µin |
| Contact Finish Thickness - Mating | 0.38 µm | 0.38 µm |
| Contact Finish Thickness - Post | 2.54 µm | 2.54 µm |
| Contact Finish Thickness - Post | 100 µin | 100 µin |
| Contact Length - Mating | 5.84 mm | 5.84 mm |
| Contact Length - Mating [x] | 0.23 in | 0.23 in |
| Contact Length - Post | 0.13 in | 0.13 in |
| Contact Length - Post | 3.3 mm | 3.3 mm |
| Contact Material | Brass | Brass |
| Contact Shape | Square | Square |
| Contact Type | Male Pin | Male Pin |
| Current Rating (Amps) | 3 A | 3 A |
| Fastening Type | Latch Holder | Latch Holder |
| Features | Keying Slot | Keying Slot |
| Insulation Color | Black | Black |
| Insulation Height | 13.6 mm | 13.6 mm |
| Insulation Height | 0.535 in | 0.535 in |
| Insulation Material | Thermoplastic | Thermoplastic |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole | Through Hole |
| Number of Positions | 9 | 2 - 12 |
| Number of Positions Loaded | All | All |
| Number of Rows | 1 | 1 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -65 ░C | -65 ░C |
| Overall Contact Length | 0.55 in | 0.55 in |
| Overall Contact Length | 13.97 mm | 13.97 mm |
| Pitch - Mating | 0.1 in | 0.1 in |
| Pitch - Mating | 2.54 mm | 2.54 mm |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Style | Board to Board, Cable | Board to Board, Cable |
| Termination | Solder | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 3.61 | |
| 21 | $ 3.22 | |||
| 105 | $ 2.86 | |||
| 504 | $ 2.63 | |||
| 1008 | $ 2.35 | |||
104363 Series
CONN HEADER VERT 7POS 2.54MM
| Part | Contact Length - Post | Contact Length - Post | Fastening Type | Style | Features | Insulation Height | Insulation Height | Contact Material | Applications | Connector Type | Number of Rows | Current Rating (Amps) | Number of Positions Loaded | Termination | Mounting Type | Insulation Material | Insulation Color | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Shape | Contact Length - Mating [x] | Contact Length - Mating | Contact Finish - Mating | Number of Positions | Shrouding | Operating Temperature [Min] | Operating Temperature [Max] | Material Flammability Rating | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Finish - Post | Pitch - Mating | Pitch - Mating | Contact Type | Overall Contact Length | Overall Contact Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 5-104363-6 | 0.13 in | 3.3 mm | Latch Holder | Board to Board, Cable | Keying Slot | 13.6 mm | 0.535 in | Brass | Automotive, General Purpose, Medical, Telecommunications | Header | 1 | 3 A | All | Solder | Through Hole | Thermoplastic | Black | 15 µin | 0.38 µm | Square | 0.23 in | 5.84 mm | Gold | 7 | Shrouded - 4 Wall | -65 ░C | 105 ░C | UL94 V-0 | 2.54 µm | 100 µin | Tin | 0.1 in | 2.54 mm | Male Pin | 0.55 in | 13.97 mm |
TE Connectivity AMP Connectors 5-104363-1 | 0.13 in | 3.3 mm | Latch Holder | Board to Board, Cable | Keying Slot | 13.6 mm | 0.535 in | Brass | Automotive, General Purpose, Medical, Telecommunications | Header | 1 | 3 A | All | Solder | Through Hole | Thermoplastic | Black | 15 µin | 0.38 µm | Square | 0.23 in | 5.84 mm | Gold | 2 | Shrouded - 4 Wall | -65 ░C | 105 ░C | UL94 V-0 | 2.54 µm | 100 µin | Tin | 0.1 in | 2.54 mm | Male Pin | 0.55 in | 13.97 mm |
TE Connectivity AMP Connectors 5-104363-7 | 0.13 in | 3.3 mm | Latch Holder | Board to Board, Cable | Keying Slot | 13.6 mm | 0.535 in | Brass | Automotive, General Purpose, Medical, Telecommunications | Header | 1 | 3 A | All | Solder | Through Hole | Thermoplastic | Black | 15 µin | 0.38 µm | Square | 0.23 in | 5.84 mm | Gold | 8 | Shrouded - 4 Wall | -65 ░C | 105 ░C | UL94 V-0 | 2.54 µm | 100 µin | Tin | 0.1 in | 2.54 mm | Male Pin | 0.55 in | 13.97 mm |
TE Connectivity AMP Connectors 5-104363-2 | 0.13 in | 3.3 mm | Latch Holder | Board to Board, Cable | Keying Slot | 13.6 mm | 0.535 in | Brass | Automotive, General Purpose, Medical, Telecommunications | Header | 1 | 3 A | All | Solder | Through Hole | Thermoplastic | Black | 15 µin | 0.38 µm | Square | 0.23 in | 5.84 mm | Gold | Shrouded - 4 Wall | -65 ░C | 105 ░C | UL94 V-0 | 2.54 µm | 100 µin | Tin | 0.1 in | 2.54 mm | Male Pin | 0.55 in | 13.97 mm | |
TE Connectivity AMP Connectors 6-104363-0 | 0.13 in | 3.3 mm | Latch Holder | Board to Board, Cable | Keying Slot | 13.6 mm | 0.535 in | Brass | Automotive, General Purpose, Medical, Telecommunications | Header | 1 | 3 A | All | Solder | Through Hole | Thermoplastic | Black | 15 µin | 0.38 µm | Square | 0.23 in | 5.84 mm | Gold | 11 | Shrouded - 4 Wall | -65 ░C | 105 ░C | UL94 V-0 | 2.54 µm | 100 µin | Tin | 0.1 in | 2.54 mm | Male Pin | 0.55 in | 13.97 mm |
TE Connectivity AMP Connectors 104363-3 | 0.13 in | 3.3 mm | Latch Holder | Board to Board, Cable | Keying Slot | 13.6 mm | 0.535 in | Brass | Automotive, General Purpose, Medical, Telecommunications | Header | 1 | 3 A | All | Solder | Through Hole | Thermoplastic | Black | 15 µin | 0.38 µm | Square | 0.23 in | 5.84 mm | Gold | 4 | Shrouded - 4 Wall | -65 ░C | 105 ░C | UL94 V-0 | 2.54 µm | 100 µin | Tin-Lead | 0.1 in | 2.54 mm | Male Pin | 0.55 in | 13.97 mm |
TE Connectivity AMP Connectors 5-104363-8 | 0.13 in | 3.3 mm | Latch Holder | Board to Board, Cable | Keying Slot | 13.6 mm | 0.535 in | Brass | Automotive, General Purpose, Medical, Telecommunications | Header | 1 | 3 A | All | Solder | Through Hole | Thermoplastic | Black | 15 µin | 0.38 µm | Square | 0.23 in | 5.84 mm | Gold | 9 | Shrouded - 4 Wall | -65 ░C | 105 ░C | UL94 V-0 | 2.54 µm | 100 µin | Tin | 0.1 in | 2.54 mm | Male Pin | 0.55 in | 13.97 mm |
TE Connectivity AMP Connectors 1-104363-1 | 0.13 in | 3.3 mm | Latch Holder | Board to Board, Cable | Keying Slot | 13.6 mm | 0.535 in | Brass | Automotive, General Purpose, Medical, Telecommunications | Header | 1 | 3 A | All | Solder | Through Hole | Thermoplastic | Black | 15 µin | 0.38 µm | Square | 0.23 in | 5.84 mm | Gold | 12 | Shrouded - 4 Wall | -65 ░C | 105 ░C | UL94 V-0 | 2.54 µm | 100 µin | Tin-Lead | 0.1 in | 2.54 mm | Male Pin | 0.55 in | 13.97 mm |
TE Connectivity AMP Connectors 1-104363-0 | 0.13 in | 3.3 mm | Latch Holder | Board to Board, Cable | Keying Slot | 13.6 mm | 0.535 in | Brass | Automotive, General Purpose, Medical, Telecommunications | Header | 1 | 3 A | All | Solder | Through Hole | Thermoplastic | Black | 15 µin | 0.38 µm | Square | 0.23 in | 5.84 mm | Gold | 11 | Shrouded - 4 Wall | -65 ░C | 105 ░C | UL94 V-0 | 2.54 µm | 100 µin | Tin-Lead | 0.1 in | 2.54 mm | Male Pin | 0.55 in | 13.97 mm |
TE Connectivity AMP Connectors 104363-7 | 0.13 in | 3.3 mm | Latch Holder | Board to Board, Cable | Keying Slot | 13.6 mm | 0.535 in | Brass | Automotive, General Purpose, Medical, Telecommunications | Header | 1 | 3 A | All | Solder | Through Hole | Thermoplastic | Black | 15 µin | 0.38 µm | Square | 0.23 in | 5.84 mm | Gold | 8 | Shrouded - 4 Wall | -65 ░C | 105 ░C | UL94 V-0 | 2.54 µm | 100 µin | Tin-Lead | 0.1 in | 2.54 mm | Male Pin | 0.55 in | 13.97 mm |
TE Connectivity AMP Connectors 5-104363-4 | 0.13 in | 3.3 mm | Latch Holder | Board to Board, Cable | Keying Slot | 13.6 mm | 0.535 in | Brass | Automotive, General Purpose, Medical, Telecommunications | Header | 1 | 3 A | All | Solder | Through Hole | Thermoplastic | Black | 15 µin | 0.38 µm | Square | 0.23 in | 5.84 mm | Gold | Shrouded - 4 Wall | -65 ░C | 105 ░C | UL94 V-0 | 2.54 µm | 100 µin | Tin | 0.1 in | 2.54 mm | Male Pin | 0.55 in | 13.97 mm | |
TE Connectivity AMP Connectors 5-104363-9 | 0.13 in | 3.3 mm | Latch Holder | Board to Board, Cable | Keying Slot | 13.6 mm | 0.535 in | Brass | Automotive, General Purpose, Medical, Telecommunications | Header | 1 | 3 A | All | Solder | Through Hole | Thermoplastic | Black | 15 µin | 0.38 µm | Square | 0.23 in | 5.84 mm | Gold | 10 | Shrouded - 4 Wall | -65 ░C | 105 ░C | UL94 V-0 | 2.54 µm | 100 µin | Tin | 0.1 in | 2.54 mm | Male Pin | 0.55 in | 13.97 mm |
TE Connectivity AMP Connectors 104363-4 | 0.13 in | 3.3 mm | Latch Holder | Board to Board, Cable | Keying Slot | 13.6 mm | 0.535 in | Brass | Automotive, General Purpose, Medical, Telecommunications | Header | 1 | 3 A | All | Solder | Through Hole | Thermoplastic | Black | 15 µin | 0.38 µm | Square | 0.23 in | 5.84 mm | Gold | Shrouded - 4 Wall | -65 ░C | 105 ░C | UL94 V-0 | 2.54 µm | 100 µin | Tin-Lead | 0.1 in | 2.54 mm | Male Pin | 0.55 in | 13.97 mm | |
TE Connectivity AMP Connectors 104363-6 | 0.13 in | 3.3 mm | Latch Holder | Board to Board, Cable | Keying Slot | 13.6 mm | 0.535 in | Brass | Automotive, General Purpose, Medical, Telecommunications | Header | 1 | 3 A | All | Solder | Through Hole | Thermoplastic | Black | 15 µin | 0.38 µm | Square | 0.23 in | 5.84 mm | Gold | 7 | Shrouded - 4 Wall | -65 ░C | 105 ░C | UL94 V-0 | 2.54 µm | 100 µin | Tin-Lead | 0.1 in | 2.54 mm | Male Pin | 0.55 in | 13.97 mm |
Description
General part information
104363 Series
Connector Header Through Hole 9 position 0.100" (2.54mm)
