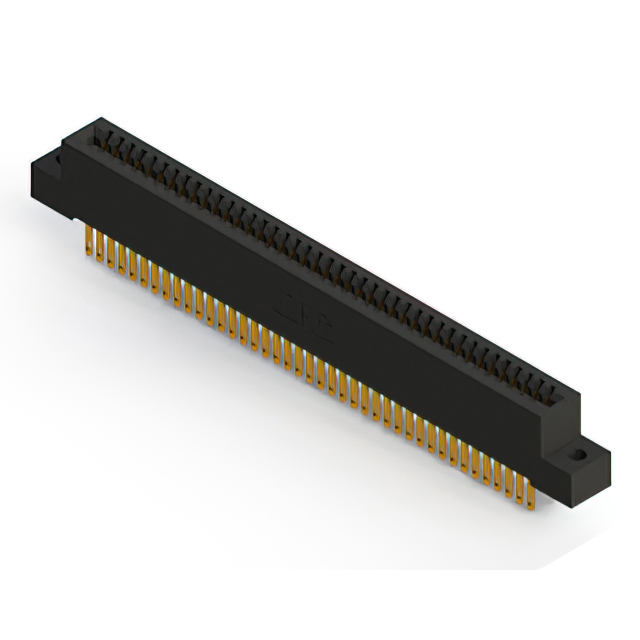

892-082-500-202

Active

EDAC Inc.

CONN EDGE DUAL FMALE 82POS 0.100

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

892-082-500-202

Active

EDAC Inc.

CONN EDGE DUAL FMALE 82POS 0.100

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	892-082-500-202

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Flush Mount, Top Opening, Unthreaded
Flange Feature [diameter]	3.25 mm
Flange Feature [diameter]	0.128 "
Gender	Female
Material - Insulation	Polyphenylene Sulfide (PPS)
Mounting Type	Through Hole
Number of Positions	82
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Dual
Termination	Solder Eyelet(s)
Termination Rows	2

892-082 Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Contact Material	Gender	Termination	Pitch [x]	Pitch [x]	Number of Rows	Material - Insulation	Termination Rows	Contact Type	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Read Out	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Color	Card Type	Mounting Type	Number of Positions	Features
EDAC Inc. 892-082-560-212	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	Female	Solder	2.54 mm	0.1 in	2	Polyphenylene Sulfide (PPS)	2	Cantilever	Gold	10 Áin	0.25 Ám	Dual	3.25 mm	Flush Mount Side Opening Unthreaded	0.128 "	Black	Non Specified - Dual Edge	Board Edge Straddle Mount	82	Card Extender
EDAC Inc. 892-082-559-204	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	Female	Solder	2.54 mm	0.1 in	2	Polyphenylene Sulfide (PPS)	2	Cantilever	Gold	10 Áin	0.25 Ám	Dual	3.96 mm	Flush Mount Top Opening Unthreaded	0.156 in	Black	Non Specified - Dual Edge	Through Hole Right Angle	82
EDAC Inc. 892-082-520-202	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	Female	Solder	2.54 mm	0.1 in	2	Polyphenylene Sulfide (PPS)	2	Cantilever	Gold	10 Áin	0.25 Ám	Dual	3.25 mm	Flush Mount Top Opening Unthreaded	0.128 "	Black	Non Specified - Dual Edge	Through Hole	82
EDAC Inc. 892-082-500-204	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	Female	Solder Eyelet(s)	2.54 mm	0.1 in	2	Polyphenylene Sulfide (PPS)	2	Cantilever	Gold	10 Áin	0.25 Ám	Dual	3.96 mm	Flush Mount Top Opening Unthreaded	0.156 in	Black	Non Specified - Dual Edge	Through Hole	82
EDAC Inc. 892-082-500-202	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	Female	Solder Eyelet(s)	2.54 mm	0.1 in	2	Polyphenylene Sulfide (PPS)	2	Cantilever	Gold	10 Áin	0.25 Ám	Dual	3.25 mm	Flush Mount Top Opening Unthreaded	0.128 "	Black	Non Specified - Dual Edge	Through Hole	82
EDAC Inc. 892-082-524-202	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	Female	Solder	2.54 mm	0.1 in	2	Polyphenylene Sulfide (PPS)	2	Cantilever	Gold	10 Áin	0.25 Ám	Dual	3.25 mm	Flush Mount Top Opening Unthreaded	0.128 "	Black	Non Specified - Dual Edge	Through Hole	82
EDAC Inc. 892-082-523-201	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	Female	Solder	2.54 mm	0.1 in	2	Polyphenylene Sulfide (PPS)	2	Cantilever	Gold	10 Áin	0.25 Ám	Dual				Black	Non Specified - Dual Edge	Through Hole	82
EDAC Inc. 892-082-500-201	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	Female	Solder Eyelet(s)	2.54 mm	0.1 in	2	Polyphenylene Sulfide (PPS)	2	Cantilever	Gold	10 Áin	0.25 Ám	Dual				Black	Non Specified - Dual Edge	Through Hole	82
EDAC Inc. 892-082-556-212	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	Female	Solder	2.54 mm	0.1 in	2	Polyphenylene Sulfide (PPS)	2	Cantilever	Gold	10 Áin	0.25 Ám	Dual	3.25 mm	Flush Mount Side Opening Unthreaded	0.128 "	Black	Non Specified - Dual Edge	Board Edge Straddle Mount	82	Card Extender
EDAC Inc. 892-082-520-212	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	Female	Solder	2.54 mm	0.1 in	2	Polyphenylene Sulfide (PPS)	2	Cantilever	Gold	10 Áin	0.25 Ám	Dual	3.25 mm	Flush Mount Side Opening Unthreaded	0.128 "	Black	Non Specified - Dual Edge	Through Hole	82

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 136.70
Newark	Each	1	$ 164.05
		100	$ 128.73
		250	$ 110.18
		500	$ 79.50
		1000	$ 63.00

Description

General part information

892-082 Series

82 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Black
