086-20SM+

Active

MINI-CIRCUITS

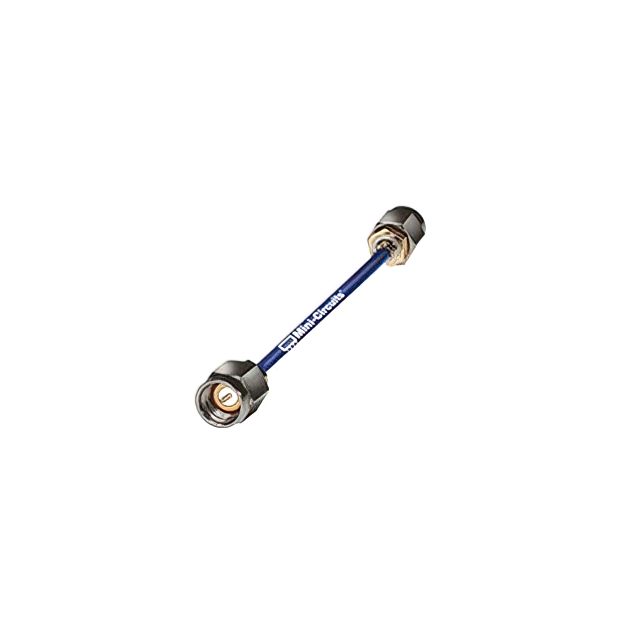

CBL ASSY SMA PLUG TO PLUG 20"

Search across all available documentation for this part.

Active

MINI-CIRCUITS

CBL ASSY SMA PLUG TO PLUG 20"

Technical Specifications

Parameters and characteristics for this part

CBL ASSY SMA PLUG TO PLUG 20"

Part	Cable Type	Cable Type	1st Connector	Frequency - Max [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Length [x]	Length [x]	2nd Connector Mounting Type	1st Connector Mounting Type	2nd Connector	Overall Impedance	Color	Style	1st Contact Gender	2nd Contact Gender
MINI-CIRCUITS 086-20SM+	Hand Formable	0.086	SMA Plug	18 GHz	105 ░C	-55 °C	508 mm	20 in	Free Hanging (In-Line)	Free Hanging (In-Line)	SMA Plug	50 Ohms	Blue	SMA to SMA	Male	Male

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Assembly Coaxial SMA to SMA Hand Formable .086 20.00" (508.00mm)
