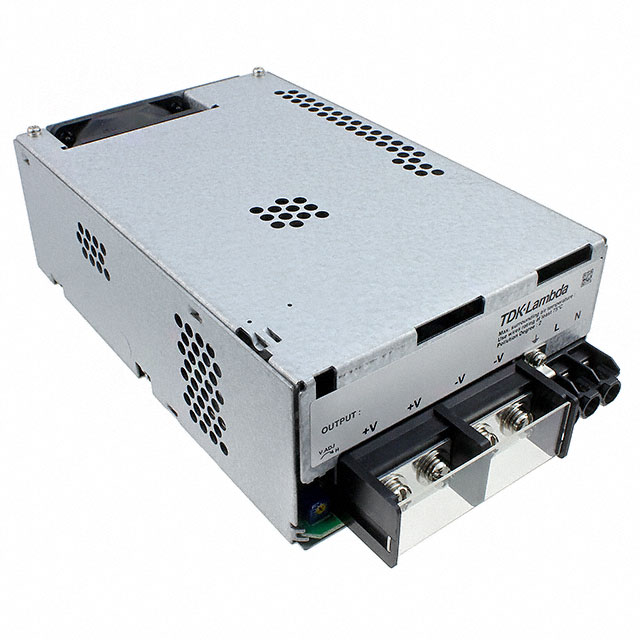

RWS600B-5
ActiveTDK-LAMBDA
AC/DC ENCLOSED POWER SUPPLY (PSU), 1 OUTPUTS, 500 W, 5 V, 100 A
Deep-Dive with AI
Search across all available documentation for this part.
RWS600B-5
ActiveTDK-LAMBDA
AC/DC ENCLOSED POWER SUPPLY (PSU), 1 OUTPUTS, 500 W, 5 V, 100 A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RWS600B-5 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE |
| Current - Output 1 | 100 A |
| Efficiency | 77 % |
| Features | Universal Input, Adjustable Output, DC Input Capable |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 °C |
| Power (Watts) | 600 W |
| Size / Dimension [x] | 7.48 " |
| Size / Dimension [x] | 190 mm |
| Size / Dimension [y] | 4.72 in |
| Size / Dimension [y] | 120 mm |
| Size / Dimension [z] | 61 mm |
| Size / Dimension [z] | 2.4 in |
| Type | Enclosed |
| Voltage - Input [Max] | 265 VAC |
| Voltage - Input [Min] | 85 VAC |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 5 V |
RWS600 Series
| Part | Voltage - Output 1 | Operating Temperature [Min] | Operating Temperature [Max] | Approval Agency | Voltage - Isolation | Features | Number of Outputs | Current - Output 1 | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Efficiency | Mounting Type | Applications | Power (Watts) | Type | Voltage - Input [Min] | Voltage - Input [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TDK-LAMBDA | 5 V | -20 °C | 70 °C | CE | 3000 V | Adjustable Output DC Input Capable Universal Input | 1 | 100 A | 61 mm | 7.48 " | 2.4 in | 4.72 in | 190 mm | 120 mm | 77 % | Chassis Mount | ITE (Commercial) | 600 W | Conformal Coated Enclosed | 85 VAC | 265 VAC |
TDK-LAMBDA | 24 V | -20 °C | 70 °C | CE | 3000 V | Adjustable Output DC Input Capable Universal Input | 1 | 25 A | 61 mm | 7.48 " | 2.4 in | 4.72 in | 190 mm | 120 mm | 88 % | Chassis Mount | ITE (Commercial) | 600 W | Conformal Coated Enclosed | 85 VAC | 265 VAC |
TDK-LAMBDA | 15 V | -20 °C | 70 °C | CE | 3000 V | Adjustable Output DC Input Capable Load Sharing Remote On/Off Remote Sense Universal Input | 1 | 40 A | 61 mm | 7.48 " | 2.4 in | 4.72 in | 190 mm | 120 mm | 84 % | Chassis Mount | ITE (Commercial) | 600 W | Enclosed | 85 VAC | 265 VAC |
TDK-LAMBDA | 48 V | -20 °C | 70 °C | CE | 3000 V | Adjustable Output DC Input Capable Load Sharing Remote On/Off Remote Sense Universal Input | 1 | 12.5 A | 61 mm | 7.48 " | 2.4 in | 4.72 in | 190 mm | 120 mm | 88 % | Chassis Mount | ITE (Commercial) | 600 W | Enclosed | 85 VAC | 265 VAC |
TDK-LAMBDA | 5 V | -20 °C | 70 °C | CE | 3000 V | Adjustable Output DC Input Capable Load Sharing Universal Input | 1 | 100 A | 61 mm | 7.48 " | 2.4 in | 4.72 in | 190 mm | 120 mm | 77 % | Chassis Mount | ITE (Commercial) | 600 W | Enclosed | 85 VAC | 265 VAC |
TDK-LAMBDA | 24 V | -20 °C | 70 °C | CE | 3000 V | Adjustable Output DC Input Capable Load Sharing Universal Input | 1 | 25 A | 61 mm | 7.48 " | 2.4 in | 4.72 in | 190 mm | 120 mm | 88 % | Chassis Mount | ITE (Commercial) | 600 W | Enclosed | 85 VAC | 265 VAC |
TDK-LAMBDA | 36 V | -20 °C | 70 °C | CE | 3000 V | Adjustable Output DC Input Capable Universal Input | 1 | 16.7 A | 61 mm | 7.48 " | 2.4 in | 4.72 in | 190 mm | 120 mm | 88 % | Chassis Mount | ITE (Commercial) | 601 W | Conformal Coated Enclosed | 85 VAC | 265 VAC |
TDK-LAMBDA | 48 V | -20 °C | 70 °C | CE | 3000 V | Adjustable Output DC Input Capable Load Sharing Universal Input | 1 | 12.5 A | 61 mm | 7.48 " | 2.4 in | 4.72 in | 190 mm | 120 mm | 88 % | Chassis Mount | ITE (Commercial) | 600 W | Enclosed | 85 VAC | 265 VAC |
TDK-LAMBDA | 48 V | -20 °C | 70 °C | CE | 3000 V | Adjustable Output DC Input Capable Universal Input | 1 | 12.5 A | 61 mm | 7.48 " | 2.4 in | 4.72 in | 190 mm | 120 mm | 88 % | Chassis Mount | ITE (Commercial) | 600 W | Conformal Coated Enclosed | 85 VAC | 265 VAC |
TDK-LAMBDA | 5 V | -20 °C | 70 °C | CE | 3000 V | Adjustable Output DC Input Capable Universal Input | 1 | 100 A | 61 mm | 7.48 " | 2.4 in | 4.72 in | 190 mm | 120 mm | 77 % | Chassis Mount | ITE (Commercial) | 600 W | Enclosed | 85 VAC | 265 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
RWS600 Series
The RWS-600B-5 is a single-output Power Supply suitable for general purpose applications. It is the simple function model who this product maintains basic performance and planned the optimization of the addition function.
