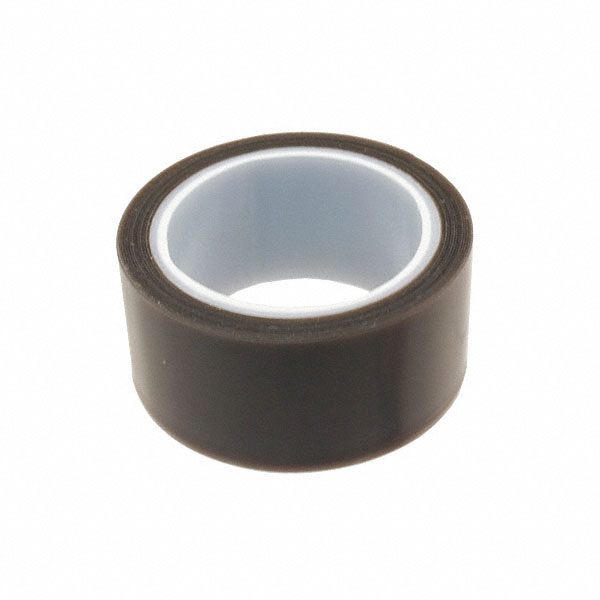

5181-1-5

Obsolete

3M (TC)

TAPE FILM GRAY 1"X5YDS

Deep-Dive with AI

Search across all available documentation for this part.

5181-1-5

Obsolete

3M (TC)

TAPE FILM GRAY 1"X5YDS

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	5181-1-5

Adhesive	Silicone Thermosetting
Color	Gray
Length	4.6 m
Length	15 ft
Length	5 yd
Shelf Life	24 Months
Shelf Life Start	Date of Manufacture
Storage/Refrigeration Temperature [Max]	80 °F, 27 °C
Storage/Refrigeration Temperature [Min]	60 °F, 16 °C
Tape Type	Film
Temperature Range [Max]	204 °C, 400 °F
Temperature Range [Min]	-65 °F, -54 °C
Thickness	0.0065 in
Thickness	6.5 mils
Thickness	0.165 mm
Thickness - Adhesive	1.5 mils
Thickness - Adhesive	0.0015 in
Thickness - Adhesive	0.038 mm
Thickness - Backing, Carrier [custom]	0.005 "
Thickness - Backing, Carrier [custom]	5 mils
Thickness - Backing, Carrier [custom]	0.127 mm
Usage	General Purpose
Width [x]	25.4 mm
Width [x]	1 in

5181 Series

Part	Length	Length	Length	Color	Thickness - Adhesive	Thickness - Adhesive	Thickness - Adhesive	Shelf Life Start	Thickness - Backing, Carrier [custom]	Thickness - Backing, Carrier [custom]	Thickness - Backing, Carrier [custom]	Temperature Range [Max]	Temperature Range [Max]	Temperature Range [Min]	Temperature Range [Min]	Tape Type	Width [x]	Width [x]	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Shelf Life	Thickness	Thickness	Thickness	Adhesive	Width	Width	Width	Width	Width [y]	Width [y]	Usage
3M (TC) 3M 5181 4" X 36YD	36 yd	32.9 m	108 ft	Gray	1.5 mils	0.0015 in	0.038 mm	Date of Manufacture	0.005 "	5 mils	0.127 mm	260 °C	260 °C	-65 °F	-54 °C	Film	4 "	101.6 mm	16 °C 60 °F	27 °C 80 °F	24 Months	0.0065 in	6.5 mils	0.165 mm	Silicone Thermosetting
3M (TC) 3M 5181 0.125" X 36YD	36 yd	32.9 m	108 ft	Gray	1.5 mils	0.0015 in	0.038 mm	Date of Manufacture	0.005 "	5 mils	0.127 mm	260 °C	260 °C	-65 °F	-54 °C	Film			16 °C 60 °F	27 °C 80 °F	24 Months	0.0065 in	6.5 mils	0.165 mm	Silicone Thermosetting	0.125 "	0.13 in	3.18 mm
3M (TC) 0.375-5-5181	5 yd	4.6 m	15 ft	Gray	1.5 mils	0.0015 in	0.038 mm	Date of Manufacture	0.005 "	5 mils	0.127 mm	260 °C	260 °C	-65 °F	-54 °C	Film			16 °C 60 °F	27 °C 80 °F	24 Months	0.0065 in	6.5 mils	0.165 mm	Silicone Thermosetting	0.375 in	0.38 in	9.65 mm
3M (TC) 3M 5181 1.5" X 36YD	36 yd	32.9 m	108 ft	Gray	1.5 mils	0.0015 in	0.038 mm	Date of Manufacture	0.005 "	5 mils	0.127 mm	260 °C	260 °C	-65 °F	-54 °C	Film			16 °C 60 °F	27 °C 80 °F	24 Months	0.0065 in	6.5 mils	0.165 mm	Silicone Thermosetting		1.5 "	38.1 mm	1 1/2
3M (TC) 3M 5181 0.94" X 36YD	36 yd	32.9 m	108 ft	Gray	1.5 mils	0.0015 in	0.038 mm	Date of Manufacture	0.005 "	5 mils	0.127 mm	260 °C	260 °C	-65 °F	-54 °C	Film			16 °C 60 °F	27 °C 80 °F	24 Months	0.0065 in	6.5 mils	0.165 mm	Silicone Thermosetting
3M (TC) 3M 5181 0.25" X 36YD	36 yd	32.9 m	108 ft	Gray	1.5 mils	0.0015 in	0.038 mm	Date of Manufacture	0.005 "	5 mils	0.127 mm	260 °C	260 °C	-65 °F	-54 °C	Film			16 °C 60 °F	27 °C 80 °F	24 Months	0.0065 in	6.5 mils	0.165 mm	Silicone Thermosetting	0.25 in	0.25 in	6.35 mm
3M (TC) 11-5-5181	5 yd	4.6 m	15 ft	Gray	1.5 mils	0.0015 in	0.038 mm	Date of Manufacture	0.005 "	5 mils	0.127 mm	260 °C	260 °C	-65 °F	-54 °C	Film			16 °C 60 °F	27 °C 80 °F	24 Months	0.0065 in	6.5 mils	0.165 mm	Silicone Thermosetting					279.4 mm	11 in	General Purpose
3M (TC) 5181-1-5	5 yd	4.6 m	15 ft	Gray	1.5 mils	0.0015 in	0.038 mm	Date of Manufacture	0.005 "	5 mils	0.127 mm	204 °C 400 °F		-65 °F -54 °C		Film	1 in	25.4 mm	16 °C 60 °F	27 °C 80 °F	24 Months	0.0065 in	6.5 mils	0.165 mm	Silicone Thermosetting							General Purpose
3M (TC) 8-5-5181	5 yd	4.6 m	15 ft	Gray	1.5 mils	0.0015 in	0.038 mm	Date of Manufacture	0.005 "	5 mils	0.127 mm	260 °C	260 °C	-65 °F	-54 °C	Film			16 °C 60 °F	27 °C 80 °F	24 Months	0.0065 in	6.5 mils	0.165 mm	Silicone Thermosetting		8 in	203.2 mm				General Purpose
3M (TC) 3M 5181 10" X 36YD	36 yd	32.9 m	108 ft	Gray	1.5 mils	0.0015 in	0.038 mm	Date of Manufacture	0.005 "	5 mils	0.127 mm	260 °C	260 °C	-65 °F	-54 °C	Film	10 in		16 °C 60 °F	27 °C 80 °F	24 Months	0.0065 in	6.5 mils	0.165 mm	Silicone Thermosetting			254 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

5181 Series

Film Tape Silicone Thermosetting Adhesive Gray 1.00" (25.40mm) X 15' (4.6m) 5 yds
