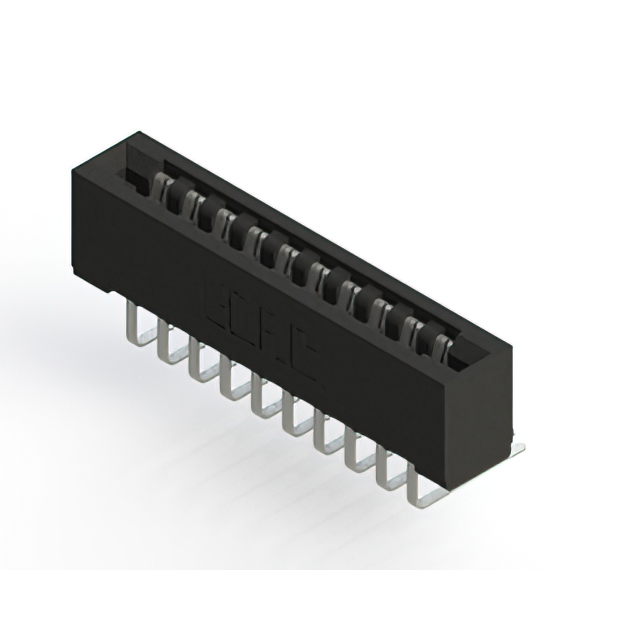

857-010-459-101

Active

EDAC Inc.

CONN EDGE SGL FML 10POS 0.156

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

857-010-459-101

Active

EDAC Inc.

CONN EDGE SGL FML 10POS 0.156

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	857-010-459-101

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Black
Contact Finish	Tin
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Gender	Female
Material - Insulation	Polyphenylene Sulfide (PPS)
Mounting Type	Through Hole, Right Angle
Number of Positions	10
Number of Positions/Bay/Row [custom]	10
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Single
Termination	Solder
Termination Rows	1

857-010 Series

...

Part	Number of Positions	Termination	Contact Material	Color	Gender	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Contact Type	Contact Finish	Mounting Type	Material - Insulation	Pitch [x]	Pitch [x]	Termination Rows	Number of Positions/Bay/Row [custom]	Read Out	Number of Rows	Card Type	Operating Temperature [Max]	Operating Temperature [Min]	Flange Feature	Flange Feature	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Contact Finish Thickness	Contact Finish Thickness
EDAC Inc. 857-010-453-101	20	Solder	Copper Alloy	Black	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Semi Bellows	Tin	Through Hole Right Angle	Polyphenylene Sulfide (PPS)	0.156 in	3.96 mm	1	10	Dual	2	Non Specified - Dual Edge	125 °C	-40 °C
EDAC Inc. 857-010-445-112	10	Wire Wrap	Copper Alloy	Black	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Semi Bellows	Tin	Through Hole	Polyphenylene Sulfide (PPS)	0.156 in	3.96 mm	1	10	Single	1	Non Specified - Single Edge	125 °C	-40 °C	Side Mount Opening Unthreaded	3.25 mm	0.128 in
EDAC Inc. 857-010-505-102	10	Solder Eyelet(s)	Copper Alloy	Black	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Semi Bellows	Gold	Through Hole	Polyphenylene Sulfide (PPS)	0.156 in	3.96 mm	1	10	Single	1	Non Specified - Single Edge	125 °C	-40 °C	Flush Mount Top Opening Unthreaded			3.25 mm	0.128 "	10 Áin	0.25 Ám
EDAC Inc. 857-010-459-101	10	Solder	Copper Alloy	Black	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Semi Bellows	Tin	Through Hole Right Angle	Polyphenylene Sulfide (PPS)	0.156 in	3.96 mm	1	10	Single	1	Non Specified - Single Edge	125 °C	-40 °C
EDAC Inc. 857-010-431-103	10	Solder	Copper Alloy	Black	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Semi Bellows	Tin	Through Hole	Polyphenylene Sulfide (PPS)	0.156 in	3.96 mm	1	10	Single	1	Non Specified - Single Edge	125 °C	-40 °C	Floating Bobbin Flush Mount			2.95 mm	0.116 in
EDAC Inc. 857-010-431-107	10	Solder	Copper Alloy	Black	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Semi Bellows	Tin	Through Hole	Polyphenylene Sulfide (PPS)	0.156 in	3.96 mm	1	10	Single	1	Non Specified - Single Edge	125 °C	-40 °C	Flush Mount M3 Threaded Insert Top Opening
EDAC Inc. 857-010-401-103	20	Solder Eyelet(s)	Copper Alloy	Black	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Semi Bellows	Tin	Through Hole	Polyphenylene Sulfide (PPS)	0.156 in	3.96 mm	1	10	Dual	2	Non Specified - Dual Edge	125 °C	-40 °C	Floating Bobbin Flush Mount			2.95 mm	0.116 in
EDAC Inc. 857-010-447-108	10	Wire Wrap	Copper Alloy	Black	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Semi Bellows	Tin	Through Hole	Polyphenylene Sulfide (PPS)	0.156 in	3.96 mm	1	10	Single	1	Non Specified - Single Edge	125 °C	-40 °C	4-40 Flush Mount Threaded Insert Top Opening
EDAC Inc. 857-010-425-103	10	Solder	Copper Alloy	Black	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Semi Bellows	Tin	Through Hole	Polyphenylene Sulfide (PPS)	0.156 in	3.96 mm	1	10	Single	1	Non Specified - Single Edge	125 °C	-40 °C	Floating Bobbin Flush Mount			2.95 mm	0.116 in
EDAC Inc. 857-010-425-112	10	Solder	Copper Alloy	Black	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Semi Bellows	Tin	Through Hole	Polyphenylene Sulfide (PPS)	0.156 in	3.96 mm	1	10	Single	1	Non Specified - Single Edge	125 °C	-40 °C	Side Mount Opening Unthreaded	3.25 mm	0.128 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 61.93
Newark	Each	1	$ 74.32
		100	$ 46.50
		250	$ 40.91
		500	$ 37.64
		1000	$ 31.50

Description

General part information

857-010 Series

10 Position Female Connector Non Specified - Single Edge Tin 0.156" (3.96mm) Black
