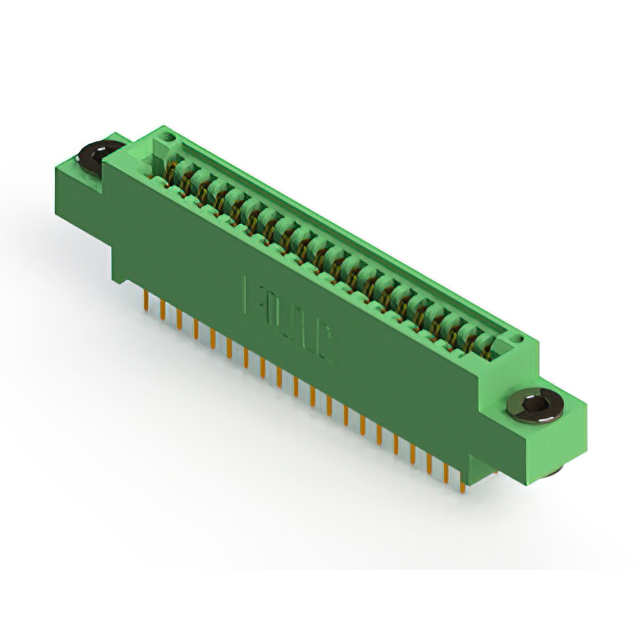

345-040-525-803
ActiveEDAC Inc.
CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 40 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Search across all available documentation for this part.
345-040-525-803
ActiveEDAC Inc.
CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 40 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 345-040-525-803 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Top Mount Opening, Floating Bobbin |
| Flange Feature [diameter] | 2.95 mm |
| Flange Feature [diameter] | 0.116 in |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 40 |
| Number of Positions/Bay/Row [custom] | 20 |
| Number of Positions/Bay/Row [custom] | 20 |
| Number of Positions/Bay/Row [custom] | 20 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
345-040 Series
...
| Part | Gender | Operating Temperature [Min] | Operating Temperature [Max] | Material - Insulation | Number of Positions | Flange Feature | Termination | Pitch [x] | Pitch [x] | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Material | Mounting Type | Features | Contact Type | Read Out | Card Type | Number of Rows | Contact Finish | Color | Contact Finish Thickness | Contact Finish Thickness | Termination Rows | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Flange Feature | Number of Positions/Bay/Row [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Female | -40 °C | 105 ░C | Polyester Thermoplastic | 40 | 4-40 Flush Mount Threaded Insert Top Opening | Wire Wrap | 2.54 mm | 0.1 in | 20 | 20 | 20 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Through Hole Right Angle | Card Guides | Cantilever | Dual | Non Specified - Dual Edge | 2 | Gold | Green | 10 Áin | 0.25 Ám | 2 | |||||
EDAC Inc. | Female | -40 °C | 105 ░C | Polyester Thermoplastic | 40 | Floating Bobbin Flush Mount | Solder Eyelet(s) | 2.54 mm | 0.1 in | 20 | 20 | 20 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Through Hole | Cantilever | Dual | Non Specified - Dual Edge | 2 | Gold | Green | 10 Áin | 0.25 Ám | 2 | 0.116 in | 2.95 mm | ||||
EDAC Inc. | Female | -40 °C | 105 ░C | Polyester Thermoplastic | 40 | Solder | 2.54 mm | 0.1 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Through Hole Right Angle | Cantilever | Single | Non Specified - Single Edge | 1 | Gold | Green | 10 Áin | 0.25 Ám | 1 | 3.25 mm | 0.128 in | 40 | |||||||
EDAC Inc. | Female | -40 °C | 105 ░C | Polyester Thermoplastic | 40 | Floating Bobbin Top Mount Opening | Solder Eyelet(s) | 2.54 mm | 0.1 in | 20 | 20 | 20 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Through Hole | Cantilever | Dual | Non Specified - Dual Edge | 2 | Gold | Green | 10 Áin | 0.25 Ám | 2 | 0.116 in | 2.95 mm | ||||
EDAC Inc. | Female | -40 °C | 105 ░C | Polyester Thermoplastic | 40 | 4-40 Threaded Insert Top Mount Opening | Solder | 2.54 mm | 0.1 in | 20 | 20 | 20 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Through Hole | Card Guides | Cantilever | Dual | Non Specified - Dual Edge | 2 | Gold | Green | 10 Áin | 0.25 Ám | 2 | |||||
EDAC Inc. | Female | -40 °C | 105 ░C | Polyester Thermoplastic | 40 | 4-40 Threaded Insert Top Mount Opening | Solder Eyelet(s) | 2.54 mm | 0.1 in | 20 | 20 | 20 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Through Hole | Card Guides | Cantilever | Dual | Non Specified - Dual Edge | 2 | Gold | Green | 10 Áin | 0.25 Ám | 2 | |||||
EDAC Inc. | Female | -40 °C | 105 ░C | Polyester Thermoplastic | 40 | Floating Bobbin Top Mount Opening | Solder | 2.54 mm | 0.1 in | 20 | 20 | 20 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Through Hole | Cantilever | Dual | Non Specified - Dual Edge | 2 | Gold | Green | 10 Áin | 0.25 Ám | 2 | 0.116 in | 2.95 mm | ||||
EDAC Inc. | Female | -40 °C | 105 ░C | Polyester Thermoplastic | 40 | 4-40 Threaded Insert Top Mount Opening | Solder | 2.54 mm | 0.1 in | 20 | 20 | 20 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Through Hole | Card Guides | Cantilever | Dual | Non Specified - Dual Edge | 2 | Gold | Green | 10 Áin | 0.25 Ám | 2 | |||||
EDAC Inc. | Female | -40 °C | 105 ░C | Polyester Thermoplastic | 40 | Solder | 2.54 mm | 0.1 in | 20 | 20 | 20 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Through Hole | Cantilever | Dual | Non Specified - Dual Edge | 2 | Gold | Green | 10 Áin | 0.25 Ám | 2 | |||||||
EDAC Inc. | Female | -40 °C | 105 ░C | Polyester Thermoplastic | 40 | 4-40 Flush Mount Threaded Insert Top Opening | Solder | 2.54 mm | 0.1 in | 20 | 20 | 20 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Through Hole | Cantilever | Dual | Non Specified - Dual Edge | 2 | Gold | Green | 10 Áin | 0.25 Ám | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
345-040 Series
40 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
