341-108-555-204
ActiveEDAC Inc.

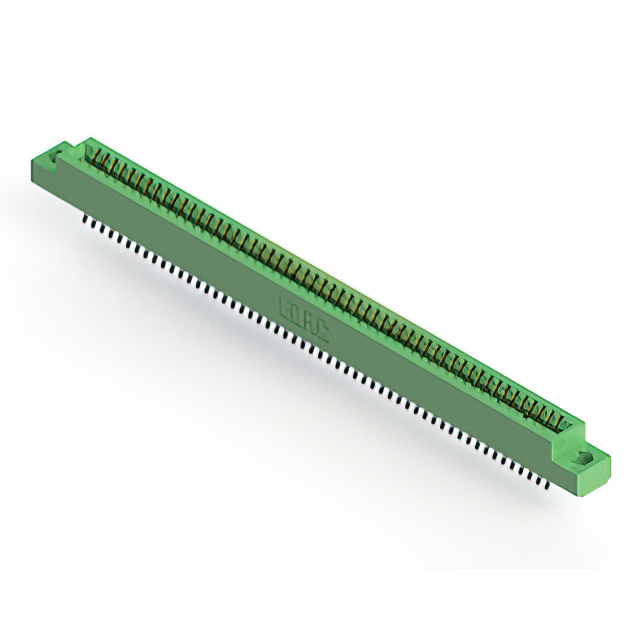

CONN EDGE DUAL FML 108POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
341-108-555-204
ActiveEDAC Inc.
CONN EDGE DUAL FML 108POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 341-108-555-204 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Features | Card Extender |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.96 mm |
| Flange Feature [diameter] | 0.156 in |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 108 |
| Number of Positions/Bay/Row [custom] | 54 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Solder Eyelet(s) |
| Termination Rows | 2 |
341-108 Series
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Gender | Number of Positions | Read Out | Contact Type | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Number of Positions/Bay/Row [custom] | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Termination | Pitch [x] | Pitch [x] | Material - Insulation | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Color | Card Type | Contact Material | Termination Rows | Number of Rows | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | -40 °C | 105 ░C | Female | 108 | Dual | Semi Bellows | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 54 | Through Hole | 10 Áin | 0.25 Ám | Gold | Solder | 2.54 mm | 0.1 in | Polyester Thermoplastic | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | Green | Non Specified - Dual Edge | Copper Alloy | 2 | 2 | |
EDAC Inc. | -40 °C | 105 ░C | Female | 108 | Dual | Semi Bellows | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 54 | Through Hole | 10 Áin | 0.25 Ám | Gold | Solder | 2.54 mm | 0.1 in | Polyester Thermoplastic | 4-40 Flush Mount Threaded Insert Top Opening | Green | Non Specified - Dual Edge | Copper Alloy | 2 | 2 | Card Extender | ||
EDAC Inc. | -40 °C | 105 ░C | Female | 108 | Dual | Semi Bellows | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 54 | Through Hole | 10 Áin | 0.25 Ám | Gold | Solder | 2.54 mm | 0.1 in | Polyester Thermoplastic | Flush Mount M3 Threaded Insert Top Opening | Green | Non Specified - Dual Edge | Copper Alloy | 2 | 2 | |||
EDAC Inc. | -40 °C | 105 ░C | Female | 108 | Dual | Semi Bellows | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 54 | Through Hole | 10 Áin | 0.25 Ám | Gold | Solder | 2.54 mm | 0.1 in | Polyester Thermoplastic | Green | Non Specified - Dual Edge | Copper Alloy | 2 | 2 | ||||
EDAC Inc. | -40 °C | 105 ░C | Female | 108 | Dual | Semi Bellows | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 54 | Through Hole | 10 Áin | 0.25 Ám | Gold | Solder | 2.54 mm | 0.1 in | Polyester Thermoplastic | 0.128 " | Flush Mount Top Opening Unthreaded | 3.25 mm | Green | Non Specified - Dual Edge | Copper Alloy | 2 | 2 | |
EDAC Inc. | -40 °C | 105 ░C | Female | 108 | Dual | Semi Bellows | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 54 | Through Hole | 10 Áin | 0.25 Ám | Gold | Solder Eyelet(s) | 2.54 mm | 0.1 in | Diallyl Phthalate (DAP) | Green | Non Specified - Dual Edge | Copper Alloy | 2 | 2 | ||||
EDAC Inc. | -40 °C | 105 ░C | Female | 108 | Dual | Semi Bellows | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 54 | Through Hole | 10 Áin | 0.25 Ám | Gold | Solder Eyelet(s) | 2.54 mm | 0.1 in | Polyester Thermoplastic | 0.156 in | Flush Mount Top Opening Unthreaded | 3.96 mm | Green | Non Specified - Dual Edge | Copper Alloy | 2 | 2 | Card Extender |
EDAC Inc. | -40 °C | 105 ░C | Female | 108 | Dual | Semi Bellows | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 54 | Through Hole | 10 Áin | 0.25 Ám | Gold | Solder Eyelet(s) | 2.54 mm | 0.1 in | Diallyl Phthalate (DAP) | 4-40 Flush Mount Threaded Insert Top Opening | Green | Non Specified - Dual Edge | Copper Alloy | 2 | 2 | |||
EDAC Inc. | -40 °C | 105 ░C | Female | 108 | Dual | Semi Bellows | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 54 | Through Hole | 10 Áin | 0.25 Ám | Gold | Solder | 2.54 mm | 0.1 in | Polyester Thermoplastic | 4-40 Flush Mount Threaded Insert Top Opening | Green | Non Specified - Dual Edge | Copper Alloy | 2 | 2 | |||
EDAC Inc. | -40 °C | 105 ░C | Female | 108 | Dual | Semi Bellows | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 54 | Board Edge Straddle Mount | 10 Áin | 0.25 Ám | Gold | Solder | 2.54 mm | 0.1 in | Polyester Thermoplastic | 0.128 " | Flush Mount Top Opening Unthreaded | 3.25 mm | Green | Non Specified - Dual Edge | Copper Alloy | 2 | 2 | Card Extender |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 21.95 | |
Description
General part information
341-108 Series
108 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
