ST-500ESD
ActiveWIRE STRIPPER, ESD-SAFE, 30-20 AWG CAPACITY WIRES, 50.8MM LENGTHS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ST-500ESD |
|---|---|
| Cable Type [Max] | 30 AWG |
| Cable Type [Min] | 20 AWG |
| Features | ESD Safe |
| Type | Single Level Stripper, Adjustable |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
ST-500 Series

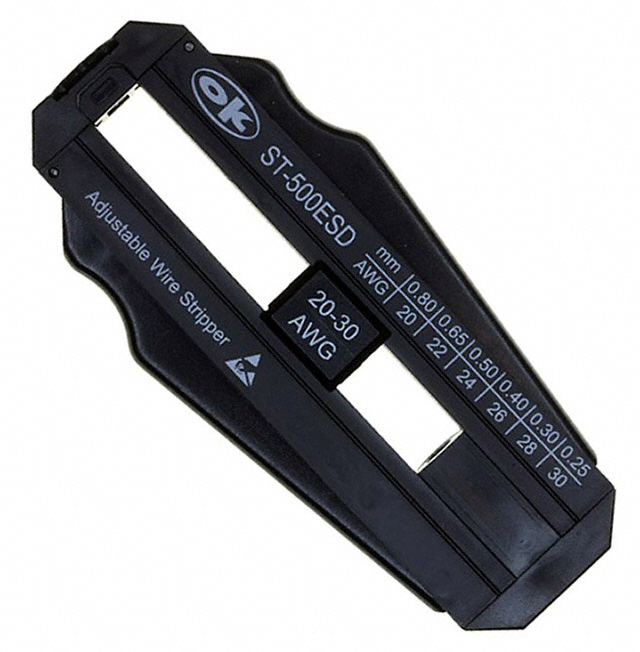

The ST-500ESD is a Wire Stripper features a static-dissipative housing (ESD safe). This precision wire stripper features an adjustment dial that allows the operator to select one of six different settings. A calibrated wire stop can then be adjusted for the desired insulation strip length. In a single motion, the operator squeezes and pulls the tool. This action engages four specially hardened blades to cleanly cut the wire insulation while the pulling motion breaks the insulation/conductor bond. Calibrated wire stop adjustable from 0.039 to 2-inch (1 to 50.8mm).
