ZXCD1000EQ16TC

Obsolete

Diodes Inc

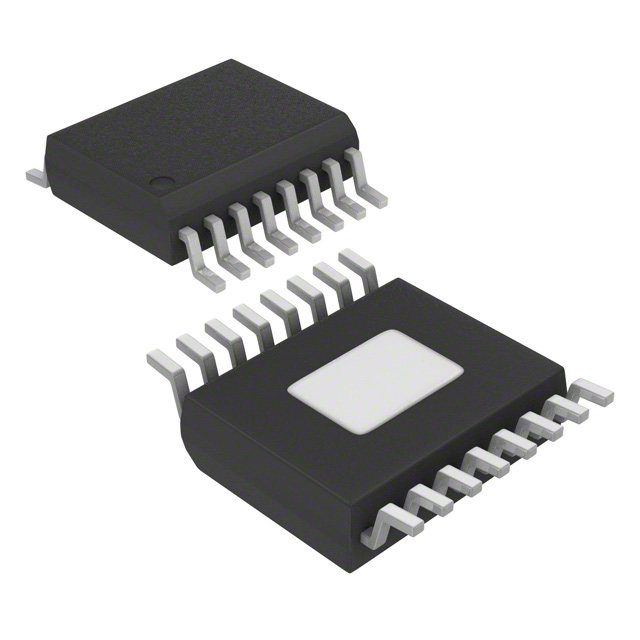

IC AMP CLASS D STEREO 1W 16QSOP

Search across all available documentation for this part.

Obsolete

Diodes Inc

IC AMP CLASS D STEREO 1W 16QSOP

Technical Specifications

Parameters and characteristics for this part

Specification	ZXCD1000EQ16TC

Features	Short-Circuit, Thermal Protection, Depop
Max Output Power x Channels @ Load [x]	1 W
Max Output Power x Channels @ Load [y]	2
Max Output Power x Channels @ Load [z]	8 Ohm
Mounting Type	Surface Mount
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Output Type	2-Channel (Stereo)
Package / Case	0.154 in
Package / Case	16-LSSOP
Package / Case	3.9 mm
Supplier Device Package	16-QSOP-EP
Type	Class D
Voltage - Supply [Max]	18 V
Voltage - Supply [Min]	12 V

Part	Features	Max Output Power x Channels @ Load [x]	Max Output Power x Channels @ Load [z]	Max Output Power x Channels @ Load [y]	Voltage - Supply [Min]	Voltage - Supply [Max]	Package / Case	Package / Case	Package / Case	Mounting Type	Output Type	Operating Temperature [Max]	Operating Temperature [Min]	Type	Supplier Device Package	Utilized IC / Part	Max Output Power x Channels @ Load	Supplied Contents	Board Type
Diodes Inc ZXCD1000EQ16TC	Depop Short-Circuit Thermal Protection	1 W	8 Ohm	2	12 V	18 V	0.154 in	16-LSSOP	3.9 mm	Surface Mount	2-Channel (Stereo)	70 °C	-40 °C	Class D	16-QSOP-EP
Diodes Inc ZXCD50STEVAL					13 V	25 V					2-Channel (Stereo)					ZXCD1000	2 channels 4 Ohm 50 W	Board(s)	Fully Populated

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Amplifier IC 2-Channel (Stereo) Class D 16-QSOP-EP
