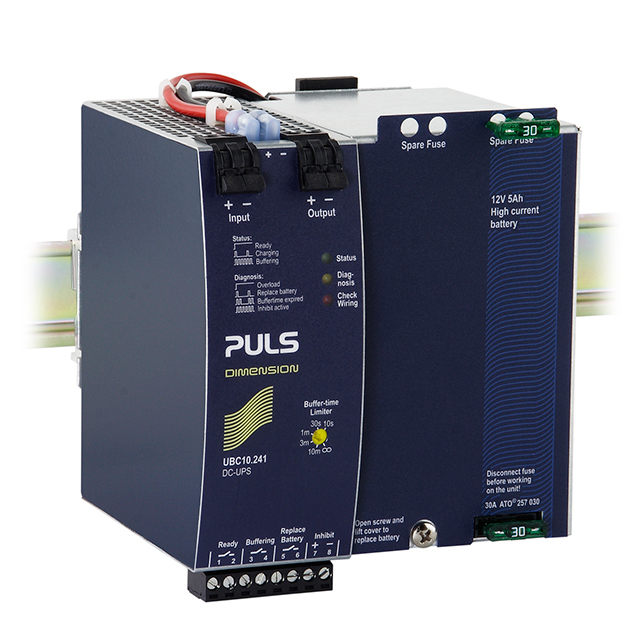

UBC10.241

Active

PULS, LP

DIN RAIL UPS 24V 10A W/ 5AH BAT

Search across all available documentation for this part.

Active

PULS, LP

DIN RAIL UPS 24V 10A W/ 5AH BAT

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	UBC10.241	UBC10 Series

Applications	Industrial Control, General Purpose	Industrial Control, General Purpose
Form	Din Rail	Din Rail
Height [z]	124 mm	124 mm
Height [z]	4.882 in	4.882 in
Power - Rated	360 W	360 W
Size / Dimension [x]	119 mm	119 mm
Size / Dimension [x]	4.685 in	4.685 in
Size / Dimension [y]	4.843 "	4.843 "
Size / Dimension [y]	123 mm	123 mm
Type	Standby (No Regulation)	Standby (No Regulation)
Voltage - Output	24 V	24 V
Weight	2.9 kg	2.9 kg
Weight	6.3 lbs	6.3 lbs

DIN RAIL UPS 24V 10A W/O BATTERY

Part	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Applications	Weight	Weight	Height [z]	Height [z]	Voltage - Output	Type	Form	Power - Rated
PULS, LP UBC10.241-N1	4.843 "	119 mm	123 mm	4.685 in	General Purpose, Industrial Control	2.9 kg	6.3 lbs	124 mm	4.882 in	24 V	Standby (No Regulation)	Din Rail	360 W
PULS, LP UBC10.241	4.843 "	119 mm	123 mm	4.685 in	General Purpose, Industrial Control	2.9 kg	6.3 lbs	124 mm	4.882 in	24 V	Standby (No Regulation)	Din Rail	360 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 612.00

General part information

DIN RAIL UPS 24V 10A W/ 5AH BAT

Technical documentation and resources
