EM6819F2-B006-SO08B+

Active

EM Microelectronic

SUB-1V (0.6V) 8BIT FLASH MCU DC-

Search across all available documentation for this part.

Active

EM Microelectronic

SUB-1V (0.6V) 8BIT FLASH MCU DC-

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EM6819F2-B006-SO08B+	EM6819F2 Series

Applications	Converter, Power Supplies	Converter, Power Supplies
Connectivity	-	I2C, SPI, UART/USART
Core Processor	-	CR816L
Core Size	-	8-Bit
Mounting Type	Surface Mount	Surface Mount
Number of I/O	-	4
Number of Outputs	8	8
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Oscillator Type	-	External, Internal

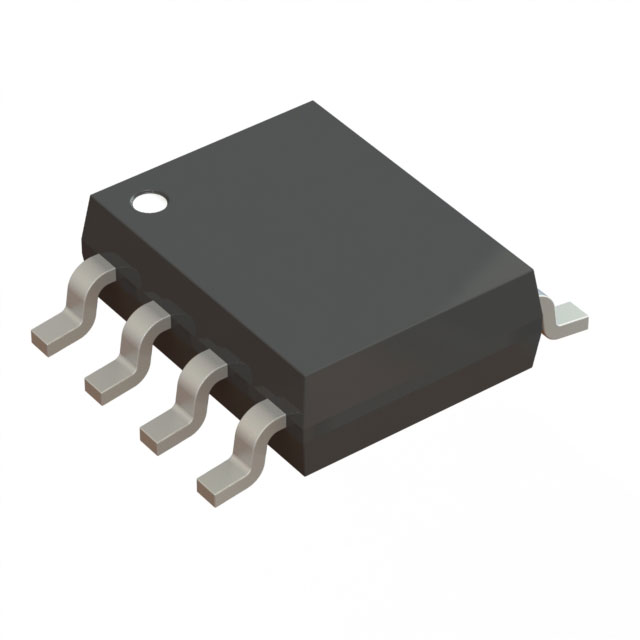

Package / Case	8-SOIC	8-SOIC
Package / Case [x]	0.154 in	0.154 in
Package / Case [y]	3.9 mm	3.9 mm
Peripherals	-	WDT, Brown-out Detect/Reset, PWM, POR, Voltage Detect
Program Memory Size	-	5.6 KB
Program Memory Type	-	FLASH
RAM Size	-	256 x 8
Speed	-	15 MHz
Supplier Device Package	8-SOIC	8-SOIC
Voltage - Input [Max]	3.6 V	3.6 V
Voltage - Input [Min]	0.9 V	0.9 V
Voltage - Output	Multiple	Multiple
Voltage - Supply (Vcc/Vdd)	-	3.6 V
Voltage - Supply (Vcc/Vdd)	-	0.9 V

IC MCU 8BIT 5.6KB FLASH 8SOIC

Part	Core Size	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Mounting Type	Program Memory Type	Connectivity	Supplier Device Package	Program Memory Size	Number of I/O	Operating Temperature [Max]	Operating Temperature [Min]	Oscillator Type	RAM Size	Peripherals	Core Processor	Speed	Package / Case	Package / Case [y]	Package / Case [x]	Voltage - Output	Number of Outputs	Applications	Voltage - Input [Max]	Voltage - Input [Min]
EM Microelectronic EM6819F2-B006-SO08A+	8-Bit	3.6 V	0.9 V	Surface Mount	FLASH	I2C, SPI, UART/USART	8-SOIC	5.6 KB	4	85 °C	-40 °C	External, Internal	256 x 8	Brown-out Detect/Reset, POR, PWM, Voltage Detect, WDT	CR816L	15 MHz	8-SOIC	3.9 mm	0.154 in
EM Microelectronic EM6819F2-B006-SO08B+				Surface Mount			8-SOIC			85 °C	-40 °C						8-SOIC	3.9 mm	0.154 in	Multiple	8	Converter, Power Supplies	3.6 V	0.9 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

- Converter, Power Supplies Voltage Regulator IC 8 Output 8-SOIC
