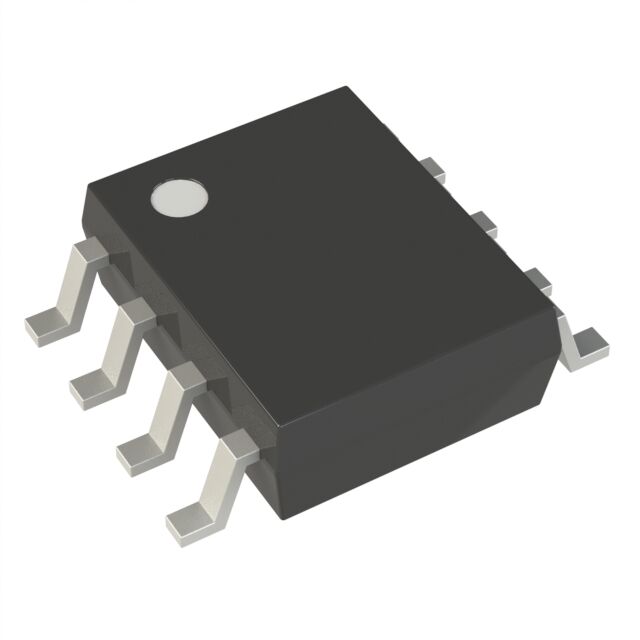

EM6819F2-B006-SO08A+

Active

EM Microelectronic

IC MCU 8BIT 5.6KB FLASH 8SOIC

Search across all available documentation for this part.

Active

EM Microelectronic

IC MCU 8BIT 5.6KB FLASH 8SOIC

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EM6819F2-B006-SO08A+	EM6819F2 Series

Applications	-	Converter, Power Supplies
Connectivity	I2C, SPI, UART/USART	I2C, SPI, UART/USART
Core Processor	CR816L	CR816L
Core Size	8-Bit	8-Bit
Mounting Type	Surface Mount	Surface Mount
Number of I/O	4	4
Number of Outputs	-	8
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Oscillator Type	External, Internal	External, Internal
Package / Case	8-SOIC	8-SOIC
Package / Case [x]	0.154 in	0.154 in
Package / Case [y]	3.9 mm	3.9 mm
Peripherals	WDT, Brown-out Detect/Reset, PWM, POR, Voltage Detect	WDT, Brown-out Detect/Reset, PWM, POR, Voltage Detect
Program Memory Size	5.6 KB	5.6 KB
Program Memory Type	FLASH	FLASH
RAM Size	256 x 8	256 x 8
Speed	15 MHz	15 MHz
Supplier Device Package	8-SOIC	8-SOIC
Voltage - Input	-	3.6 V
Voltage - Input	-	0.9 V
Voltage - Output	-	Multiple
Voltage - Supply (Vcc/Vdd) [Max]	3.6 V	3.6 V
Voltage - Supply (Vcc/Vdd) [Min]	0.9 V	0.9 V

IC MCU 8BIT 5.6KB FLASH 8SOIC

Part	Core Size	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Mounting Type	Program Memory Type	Connectivity	Supplier Device Package	Program Memory Size	Number of I/O	Operating Temperature [Max]	Operating Temperature [Min]	Oscillator Type	RAM Size	Peripherals	Core Processor	Speed	Package / Case	Package / Case [y]	Package / Case [x]	Voltage - Output	Number of Outputs	Applications	Voltage - Input [Max]	Voltage - Input [Min]
EM Microelectronic EM6819F2-B006-SO08A+	8-Bit	3.6 V	0.9 V	Surface Mount	FLASH	I2C, SPI, UART/USART	8-SOIC	5.6 KB	4	85 °C	-40 °C	External, Internal	256 x 8	Brown-out Detect/Reset, POR, PWM, Voltage Detect, WDT	CR816L	15 MHz	8-SOIC	3.9 mm	0.154 in
EM Microelectronic EM6819F2-B006-SO08B+				Surface Mount			8-SOIC			85 °C	-40 °C						8-SOIC	3.9 mm	0.154 in	Multiple	8	Converter, Power Supplies	3.6 V	0.9 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	960	$ 1.14

General part information

CR816L - Microcontroller IC 8-Bit 15MHz 5.6KB (2K x 22.5) FLASH 8-SOIC
