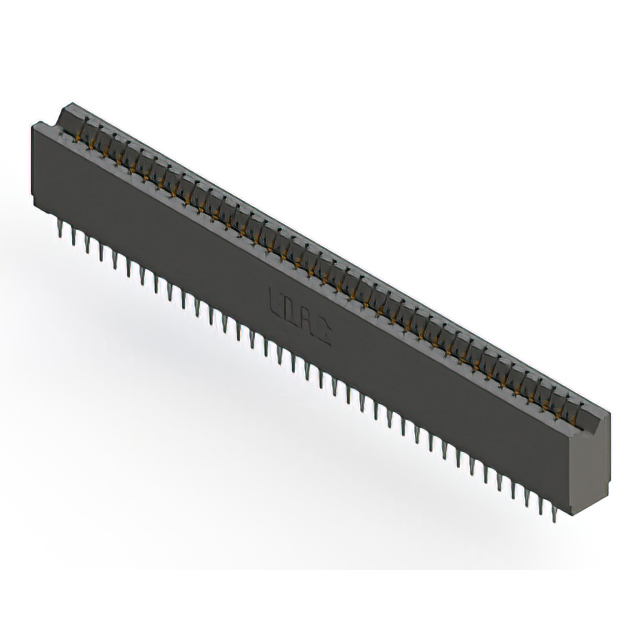

746-074-560-206

Active

EDAC Inc.

3.18MM STRAIGHT 74P -40℃~+105℃ PLUGIN,P=3.18MM EDGEBOARD CONNECTORS ROHS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

746-074-560-206

Active

EDAC Inc.

3.18MM STRAIGHT 74P -40℃~+105℃ PLUGIN,P=3.18MM EDGEBOARD CONNECTORS ROHS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	746-074-560-206

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Contact Type	Cantilever, Make Before Break
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	74
Number of Positions/Bay/Row [custom]	37
Number of Positions/Bay/Row [custom]	37
Number of Positions/Bay/Row [custom]	37
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.125 in
Pitch [x]	3.18 mm
Read Out	Dual
Termination	Press-Fit
Termination Rows	2

746-074 Series

Part	Color	Material - Insulation	Contact Type	Gender	Termination	Pitch [x]	Pitch [x]	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Card Type	Contact Material	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Mounting Type	Read Out	Contact Finish	Termination Rows	Contact Finish Thickness	Contact Finish Thickness	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Number of Rows
EDAC Inc. 746-074-540-206	Black	Polyester Thermoplastic	Cantilever	Female	Press-Fit Wire Wrap	0.125 in	3.18 mm	-40 °C	105 ░C	74	Non Specified - Dual Edge	Copper Alloy	37	37	37	Through Hole	Dual	Gold	2	0.76 Ám	30 Áin	1.37 mm	0.054 "	1.78 mm	0.07 in	2
EDAC Inc. 746-074-540-601	Black	Polyester Thermoplastic	Cantilever	Female	Press-Fit Wire Wrap	0.125 in	3.18 mm	-40 °C	105 ░C	74	Non Specified - Dual Edge	Copper Alloy	37	37	37	Through Hole	Dual	Gold	2	0.76 Ám	30 Áin	1.37 mm	0.054 "	1.78 mm	0.07 in	2
EDAC Inc. 746-074-527-206	Black	Polyester Thermoplastic	Cantilever	Female	Press-Fit	0.125 in	3.18 mm	-40 °C	105 ░C	74	Non Specified - Dual Edge	Copper Alloy	37	37	37	Through Hole	Dual	Gold	2	0.76 Ám	30 Áin	1.37 mm	0.054 "	1.78 mm	0.07 in	2
EDAC Inc. 746-074-553-201	Black	Polyester Thermoplastic	Cantilever	Female	Press-Fit Wire Wrap	0.125 in	3.18 mm	-40 °C	105 ░C	74	Non Specified - Dual Edge	Copper Alloy	37	37	37	Through Hole	Dual	Gold	2	0.76 Ám	30 Áin	1.37 mm	0.054 "	1.78 mm	0.07 in	2
EDAC Inc. 746-074-553-206	Black	Polyester Thermoplastic	Cantilever	Female	Press-Fit Wire Wrap	0.125 in	3.18 mm	-40 °C	105 ░C	74	Non Specified - Dual Edge	Copper Alloy	37	37	37	Through Hole	Dual	Gold	2	0.76 Ám	30 Áin	1.37 mm	0.054 "	1.78 mm	0.07 in	2
EDAC Inc. 746-074-553-606	Black	Polyester Thermoplastic	Cantilever	Female	Press-Fit Wire Wrap	0.125 in	3.18 mm	-40 °C	105 ░C	74	Non Specified - Dual Edge	Copper Alloy	37	37	37	Through Hole	Dual	Gold	2	0.76 Ám	30 Áin	1.37 mm	0.054 "	1.78 mm	0.07 in	2
EDAC Inc. 746-074-560-206	Black	Polyester Thermoplastic	Cantilever Make Before Break	Female	Press-Fit	0.125 in	3.18 mm	-40 °C	105 ░C	74	Non Specified - Dual Edge	Copper Alloy	37	37	37	Through Hole	Dual	Gold	2	0.76 Ám	30 Áin	1.37 mm	0.054 "	1.78 mm	0.07 in	2
EDAC Inc. 746-074-560-201	Black	Polyester Thermoplastic	Cantilever Make Before Break	Female	Press-Fit	0.125 in	3.18 mm	-40 °C	105 ░C	74	Non Specified - Dual Edge	Copper Alloy	37	37	37	Through Hole	Dual	Gold	2	0.76 Ám	30 Áin	1.37 mm	0.054 "	1.78 mm	0.07 in	2
EDAC Inc. 746-074-525-206	Black	Polyester Thermoplastic	Cantilever	Female	Press-Fit	0.125 in	3.18 mm	-40 °C	105 ░C	74	Non Specified - Dual Edge	Copper Alloy	37	37	37	Through Hole	Dual	Gold	2	0.76 Ám	30 Áin	1.37 mm	0.054 "	1.78 mm	0.07 in	2
EDAC Inc. 746-074-520-601	Black	Polyester Thermoplastic	Cantilever	Female	Press-Fit	0.125 in	3.18 mm	-40 °C	105 ░C	74	Non Specified - Dual Edge	Copper Alloy	37	37	37	Through Hole	Dual	Gold	2	0.76 Ám	30 Áin	1.37 mm	0.054 "	1.78 mm	0.07 in	2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 12.39
LCSC	Piece	1	$ 8.06
		200	$ 3.12
		500	$ 3.01
		1000	$ 2.95
Newark	Each	1	$ 11.89
		100	$ 8.06
		250	$ 7.26
		500	$ 7.02
		1000	$ 6.05

Description

General part information

746-074 Series

74 Position Female Connector Non Specified - Dual Edge Gold 0.125" (3.18mm) Black

Documents

Technical documentation and resources
