JN1AS10ML2-R

Active

JAE Electronics

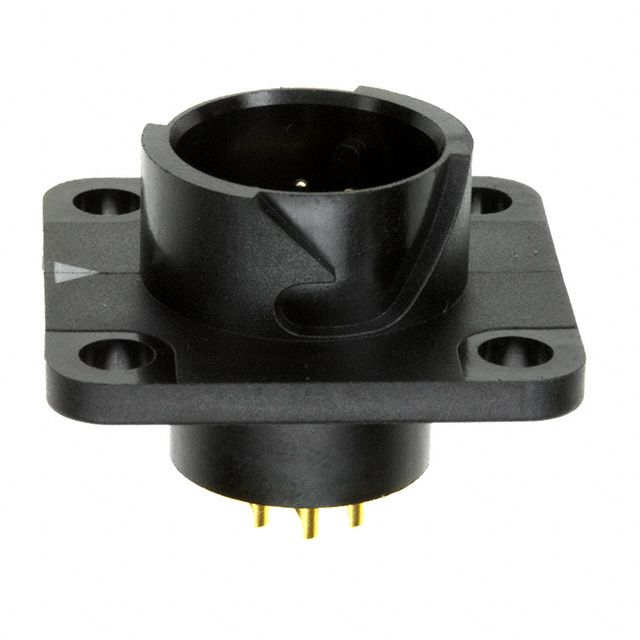

CONN RCPT MALE 10POS SOLDER CUP

Search across all available documentation for this part.

Active

JAE Electronics

CONN RCPT MALE 10POS SOLDER CUP

Technical Specifications

Parameters and characteristics for this part

Specification	JN1AS10ML2-R

Cable Opening [diameter]	12 mm
Cable Opening [diameter]	0.472 in
Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	0.099 µm
Contact Finish Thickness - Mating	3.9 µin
Contact Material	Copper Alloy
Current Rating (Amps)	3 A
Fastening Type	Push-Twist
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Synthetic Resin
Mounting Feature	Flange
Number of Positions	10
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-20 C
Orientation	N
Primary Material	Plastic
Shell Material	Synthetic Resin
Shell Size - Insert	S

Part	Shell Size - Insert	Primary Material	Shell Material	Color	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Fastening Type	Ingress Protection	Cable Opening [diameter]	Cable Opening [diameter]	Mounting Feature	Current Rating (Amps)	Connector Type	Contact Material	Orientation	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insert Material	Contact Finish - Mating
JAE Electronics JN1AS10ML2-R	S	Plastic	Synthetic Resin	Black	-20 C	125 °C	10	Push-Twist	IP67 - Dust Tight Waterproof	12 mm	0.472 in	Flange	3 A	Male Pins Receptacle	Copper Alloy	N	0.099 µm	3.9 µin	Synthetic Resin	Gold
JAE Electronics JN1AS10ML1-R	S	Plastic	Synthetic Resin	Black	-20 C	125 °C	10	Push-Twist		12 mm	0.472 in	Flange	3 A	Male Pins Receptacle	Copper Alloy	N	0.099 µm	3.9 µin	Synthetic Resin	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10 Position Circular Connector Receptacle, Male Pins Solder Cup
