1561/24 VI001

Active

ALPHA WIRE

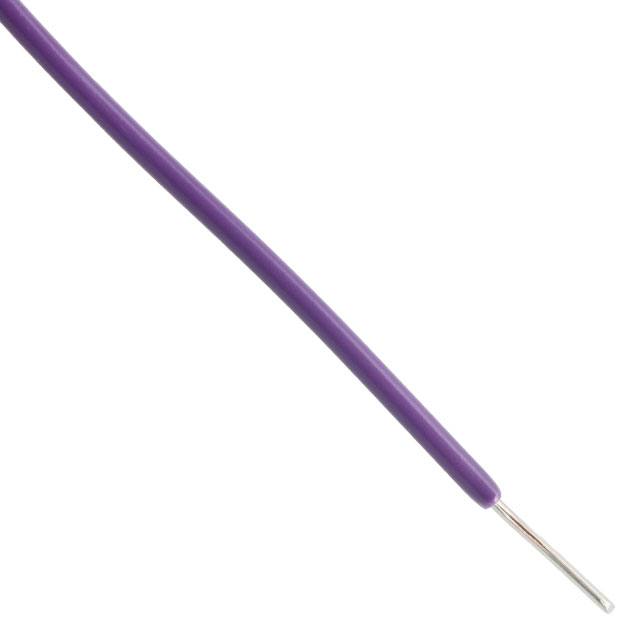

HOOK-UP SOLID 24AWG VIOLET 1000'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHook-Up Wire Catalog

1561/24 VI001

Active

ALPHA WIRE

HOOK-UP SOLID 24AWG VIOLET 1000'

Deep-Dive with AI

DocumentsHook-Up Wire Catalog

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 207.42

Description

General part information

1561/24 Series

24 AWG Hook-Up Wire Solid Violet 1000V 1000.0' (304.8m)

Documents

Technical documentation and resources

Hook-Up Wire Catalog

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1561/24 VI001	1561/24 Series

Cable Type	Hook-Up	Hook-Up
Conductor Material	Copper, Tinned	Copper, Tinned
Conductor Strand	Solid	Solid
Jacket (Insulation) Diameter [diameter]	0.052 in	0.052 in
Jacket (Insulation) Diameter [diameter]	1.32 mm	1.32 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.016 in	0.016 in
Jacket (Insulation) Thickness	0.41 mm	0.41 mm
Jacket Color	Violet	Black, Violet, Yellow, Orange, Blue, Red, Slate
Length	1000 ft	1000 ft
Length	304.8 m	304.8 m
Length	-	30.5 m
Length	-	100 ft
Operating Temperature [Max]	80 C	80 C
Operating Temperature [Min]	-40 °C	-40 °C
Qualification	MIL-W-76B Type MW	MIL-W-76B Type MW
Voltage	1000 V	1000 V
Wire Gauge	24 AWG	24 AWG

1561/24 Series

HOOK-UP SOLID 24AWG BLACK 100'

Part	Voltage	Cable Type	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Length [x]	Length [x]	Wire Gauge	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Material	Conductor Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Strand	Jacket Color	Qualification	Length	Length
ALPHA WIRE 1561/24 BK005	1000 V	Hook-Up	0.016 in	0.41 mm	30.5 m	100 ft	24 AWG	-40 °C	80 C	Poly-Vinyl Chloride (PVC)	Copper, Tinned	0.052 in	1.32 mm	Solid	Black	MIL-W-76B Type MW
ALPHA WIRE 1561/24 VI001	1000 V	Hook-Up	0.016 in	0.41 mm			24 AWG	-40 °C	80 C	Poly-Vinyl Chloride (PVC)	Copper, Tinned	0.052 in	1.32 mm	Solid	Violet	MIL-W-76B Type MW	1000 ft	304.8 m
ALPHA WIRE 1561/24 YL005	1000 V	Hook-Up	0.016 in	0.41 mm	30.5 m	100 ft	24 AWG	-40 °C	80 C	Poly-Vinyl Chloride (PVC)	Copper, Tinned	0.052 in	1.32 mm	Solid	Yellow	MIL-W-76B Type MW
ALPHA WIRE 1561/24 OR001	1000 V	Hook-Up	0.016 in	0.41 mm			24 AWG	-40 °C	80 C	Poly-Vinyl Chloride (PVC)	Copper, Tinned	0.052 in	1.32 mm	Solid	Orange	MIL-W-76B Type MW	1000 ft	304.8 m
ALPHA WIRE 1561/24 BL005	1000 V	Hook-Up	0.016 in	0.41 mm	30.5 m	100 ft	24 AWG	-40 °C	80 C	Poly-Vinyl Chloride (PVC)	Copper, Tinned	0.052 in	1.32 mm	Solid	Blue	MIL-W-76B Type MW
ALPHA WIRE 1561/24 OR005	1000 V	Hook-Up	0.016 in	0.41 mm	30.5 m	100 ft	24 AWG	-40 °C	80 C	Poly-Vinyl Chloride (PVC)	Copper, Tinned	0.052 in	1.32 mm	Solid	Orange	MIL-W-76B Type MW
ALPHA WIRE 1561/24 RD001	1000 V	Hook-Up	0.016 in	0.41 mm			24 AWG	-40 °C	80 C	Poly-Vinyl Chloride (PVC)	Copper, Tinned	0.052 in	1.32 mm	Solid	Red	MIL-W-76B Type MW	1000 ft	304.8 m
ALPHA WIRE 1561/24 SL005	1000 V	Hook-Up	0.016 in	0.41 mm	30.5 m	100 ft	24 AWG	-40 °C	80 C	Poly-Vinyl Chloride (PVC)	Copper, Tinned	0.052 in	1.32 mm	Solid	Slate	MIL-W-76B Type MW
