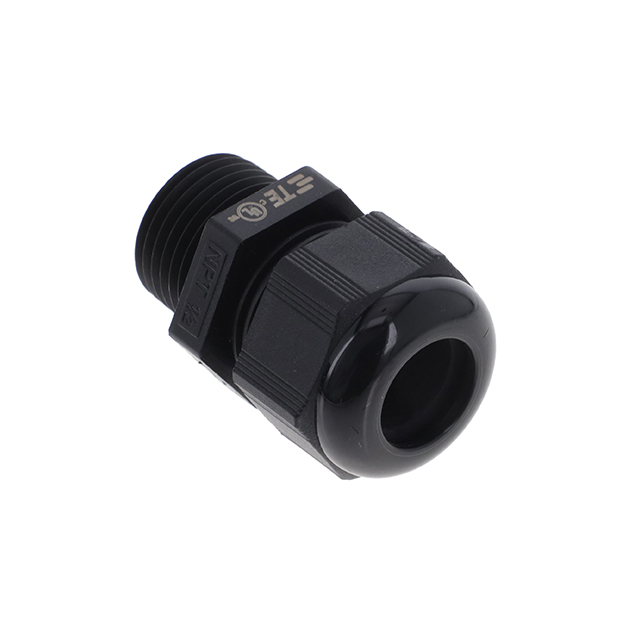

EP-SGL-NPT12-BL-D

Active

TE Connectivity ENTRELEC

CABLE GLAND 10-14MM 1/2" NPT

Search across all available documentation for this part.

Active

TE Connectivity ENTRELEC

CABLE GLAND 10-14MM 1/2" NPT

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Gland Polyamide (PA6), Nylon 6 1/2" NPT Gray

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	EP-SGL-NPT12-BL-D	EP-SGL-NPT12 Series

Color	Gray	Gray, Black
Includes	Seal	Seal
Ingress Protection	IP68 - Dust Tight, Waterproof	IP68 - Dust Tight, Waterproof
Operating Temperature [Max]	100 °C	100 °C
Operating Temperature [Min]	-20 C	-20 C
Outside Cable Diameter (Max)	-	9 mm
Outside Cable Diameter (Max)	-	0.354 - 12 in
Outside Cable Diameter (Max)	-	0.472 in
Outside Cable Diameter (Max) [Max]	14 mm	14 mm
Outside Cable Diameter (Max) [Max]	0.551 "	0.551 "
Outside Cable Diameter (Min)	-	5 mm
Outside Cable Diameter (Min)	-	0.197 in
Outside Cable Diameter (Min) [Min] [diameter]	0.394 in	0.236 - 0.394 in
Outside Cable Diameter (Min) [Min] [diameter]	10 mm	6 - 10 mm
Thread Length	0.591 in	0.591 in
Thread Length	15 mm	15 mm
Thread Size	1/2" NPT	1/2" NPT
Type	Cable Gland	Cable Gland

CABLE GLAND 5-9MM 1/2" NPT

Part	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]	Type	Thread Size	Ingress Protection	Color	Thread Length	Thread Length	Operating Temperature [Max]	Operating Temperature [Min]	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Includes	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max) [Max]
TE Connectivity ENTRELEC EP-SGL-NPT12-GR-A	5 mm	0.197 in	Cable Gland	1/2" NPT	IP68 - Dust Tight, Waterproof	Gray	0.591 in	15 mm	100 °C	-20 C	9 mm	0.354 in	Seal
TE Connectivity ENTRELEC EP-SGL-NPT12-BL-B			Cable Gland	1/2" NPT	IP68 - Dust Tight, Waterproof	Gray	0.591 in	15 mm	100 °C	-20 C		12 mm	Seal	6 mm	0.236 in	0.472 in
TE Connectivity ENTRELEC EP-SGL-NPT12-BL-D			Cable Gland	1/2" NPT	IP68 - Dust Tight, Waterproof	Gray	0.591 in	15 mm	100 °C	-20 C			Seal	10 mm	0.394 in		14 mm	0.551 "
TE Connectivity ENTRELEC EP-SGL-NPT12-GR-B			Cable Gland	1/2" NPT	IP68 - Dust Tight, Waterproof	Gray	0.591 in	15 mm	100 °C	-20 C		12 mm	Seal	6 mm	0.236 in	0.472 in
TE Connectivity ENTRELEC EP-SGL-NPT12-BL-A	5 mm	0.197 in	Cable Gland	1/2" NPT	IP68 - Dust Tight, Waterproof	Black	0.591 in	15 mm	100 °C	-20 C	9 mm	0.354 in	Seal
