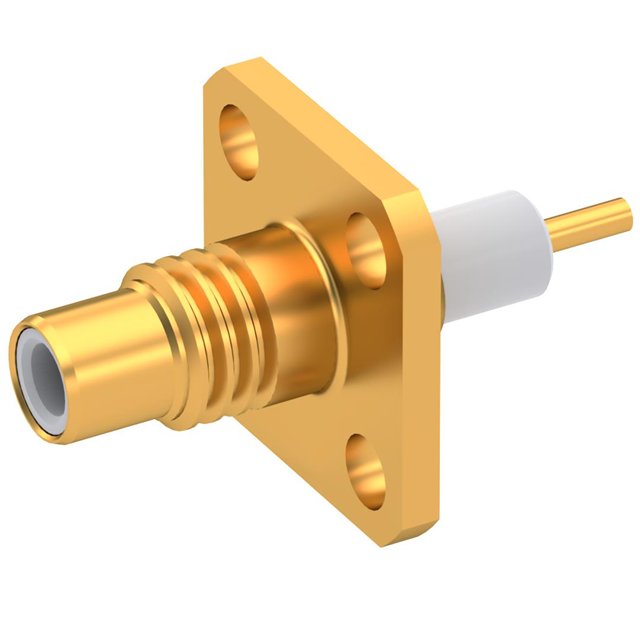

R112413000

Active

Radiall USA, Inc.

SMC / ADJUSTABLE SQUARE FLANGE J

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SMC / ADJUSTABLE SQUARE FLANGE J

Technical Specifications

Parameters and characteristics for this part

Specification	R112413000

Body Finish	Gold
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	SMC
Connector Type	Plug, Female Socket
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Features	Extended Insulation
Frequency - Max [Max]	10 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Flange
Mounting Type	Through Hole, Panel Mount
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	335 V

Part	Operating Temperature [Min]	Operating Temperature [Max]	Shield Termination	Mounting Type	Features	Frequency - Max [Max]	Connector Style	Body Finish	Contact Termination	Center Contact Material	Impedance	Body Material	Center Contact Plating	Connector Type	Housing Color	Number of Ports	Dielectric Material	Voltage Rating	Mating Cycles	Mounting Feature
Radiall USA, Inc. R112413000	-65 ░C	165 °C	Solder	Panel Mount Through Hole	Extended Insulation	10 GHz	SMC	Gold	Solder	Brass	50 Ohms	Brass	Gold	Female Socket Plug	Gold	1	Polytetrafluoroethylene (PTFE)	335 V	500	Flange

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 24.11

General part information

SMC Connector Plug, Female Socket 50 Ohms Panel Mount, Through Hole Solder
