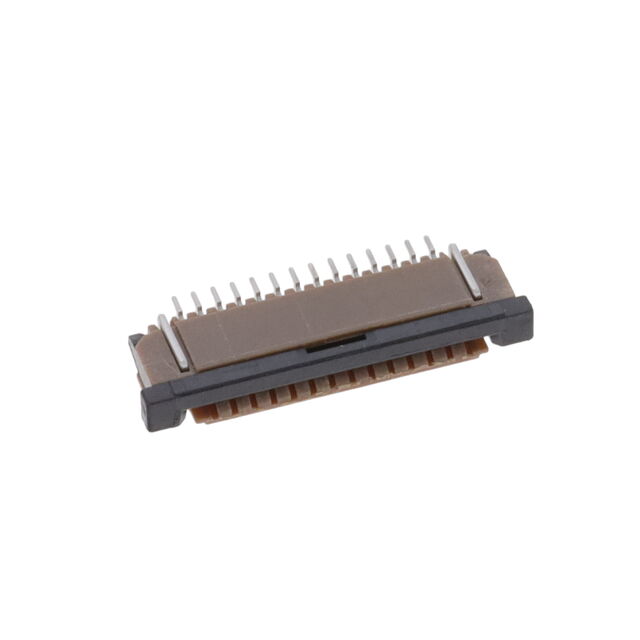

SFW14R-2STE1LF

Active

Amphenol ICC (FCI)

CONN FFC FPC TOP 14POS 1MM R/A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsSFW4R-2STAE1LF Datasheet +2

SFW14R-2STE1LF

Active

Amphenol ICC (FCI)

CONN FFC FPC TOP 14POS 1MM R/A

Deep-Dive with AI

DocumentsSFW4R-2STAE1LF Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SFW14R-2STE1LF

Actuator Color	Black
Actuator Material	Polyphenylene Sulfide (PPS), Glass Filled
Cable End Type	Tapered, Straight
Connector/Contact Type	Contacts, Top
Contact Finish	Tin
Contact Material	Phosphor Bronze
FFC, FCB Thickness [z]	0.33 mm, 0.3 mm
Flat Flex Type	FPC, FFC
Height Above Board [z]	0.106 in
Height Above Board [z]	2.7 mm
Housing Color	Brown
Housing Material	Polyphenylene Sulfide (PPS), Glass Filled
Locking Feature	Slide Lock
Material Flammability Rating	UL94 V-0
Mating Cycles	20
Mounting Type	Surface Mount, Right Angle
Number of Positions	14
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.039 in
Pitch [x]	1 mm
Termination	Kinked Pin
Voltage Rating	100 V

SFW14R Series

Part	Connector/Contact Type	Voltage Rating	Housing Material	Height Above Board [z]	Height Above Board [z]	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Mating Cycles	Contact Finish	Cable End Type	Housing Color	Actuator Material	Contact Material	FFC, FCB Thickness	Locking Feature	Termination	Pitch [x]	Pitch [x]	Features	Number of Positions	Material Flammability Rating	Flat Flex Type	Actuator Color	FFC, FCB Thickness [z]
Amphenol ICC (FCI) SFW14R-3STE1LF	Contacts Bottom	100 V	Polyphenylene Sulfide (PPS) Glass Filled	0.106 in	2.7 mm	105 ░C	-55 °C	Surface Mount Right Angle	20	Tin	Straight	Black	Polyphenylene Sulfide (PPS) Glass Filled	Phosphor Bronze	0.3 mm	Slide Lock	Solder	0.039 in	1 mm	Solder Retention Zero Insertion Force (ZIF)	14	UL94 V-0	FFC FPC	Black
Amphenol ICC (FCI) SFW14R-4STE9LF	Contacts Top	100 V	Polyphenylene Sulfide (PPS) Glass Filled	0.106 in	2.7 mm	105 ░C	-55 °C	Surface Mount Right Angle	20	Tin	Notched	Black	Polyphenylene Sulfide (PPS) Glass Filled	Phosphor Bronze	0.33 mm	Slide Lock	Solder	0.039 in	1 mm		14	UL94 V-0	FPC	Brown
Amphenol ICC (FCI) SFW14R-4STE1LF	Contacts Top	100 V	Polyphenylene Sulfide (PPS) Glass Filled	0.106 in	2.7 mm	105 ░C	-55 °C	Surface Mount Right Angle	20	Tin	Notched Tapered	Black	Polyphenylene Sulfide (PPS) Glass Filled	Phosphor Bronze		Slide Lock	Solder	0.039 in	1 mm	Solder Retention Zero Insertion Force (ZIF)	14	UL94 V-0	FFC FPC	Brown	0.3 mm 0.33 mm
Amphenol ICC (FCI) SFW14R-2STAE1LF	Contacts Top	100 V	Polyphenylene Sulfide (PPS) Glass Filled	0.106 in	2.7 mm	105 ░C	-55 °C	Surface Mount Right Angle	20	Gold	Tapered	Brown	Polyphenylene Sulfide (PPS) Glass Filled	Phosphor Bronze	0.3 mm	Slide Lock	Solder	0.039 in	1 mm		14	UL94 V-0	FPC	Black
Amphenol ICC (FCI) SFW14R-1STE1	Contacts Bottom		Polyphenylene Sulfide (PPS) Glass Filled	0.106 in	2.7 mm			Surface Mount Right Angle		Tin Alloy	Straight Tapered	Brown	Polyphenylene Sulfide (PPS) Glass Filled	Phosphor Bronze		Slide Lock	Solder	0.039 in	1 mm		14	UL94 V-0	FFC FPC	Black	0.3 mm 0.33 mm
Amphenol ICC (FCI) SFW14R-2STE9LF	Contacts Top	100 V	Polyphenylene Sulfide (PPS) Glass Filled	0.106 in	2.7 mm	105 ░C	-55 °C	Surface Mount Right Angle	20	Tin	Straight Tapered	Brown	Polyphenylene Sulfide (PPS) Glass Filled	Phosphor Bronze		Slide Lock	Solder	0.039 in	1 mm		14	UL94 V-0	FFC FPC	Black	0.3 mm 0.33 mm
Amphenol ICC (FCI) SFW14R-1STGE1LF	Contacts Bottom	100 V	Polyphenylene Sulfide (PPS) Glass Filled	0.106 in	2.7 mm	105 ░C	-55 °C	Surface Mount Right Angle	20	Gold	Tapered	Brown	Polyphenylene Sulfide (PPS) Glass Filled	Phosphor Bronze	0.33 mm	Slide Lock	Solder	0.039 in	1 mm		14	UL94 V-0	FPC	Black
Amphenol ICC (FCI) SFW14R-4STAE5LF	Contacts Top		Polyphenylene Sulfide (PPS) Glass Filled	0.106 in	2.7 mm			Surface Mount Right Angle		Gold	Tabbed	Black	Polyphenylene Sulfide (PPS) Glass Filled	Phosphor Bronze	0.33 mm	Slide Lock	Solder	0.039 in	1 mm		14	UL94 V-0	FPC	Brown
Amphenol ICC (FCI) SFW14R-2STE1LF	Contacts Top	100 V	Polyphenylene Sulfide (PPS) Glass Filled	0.106 in	2.7 mm	105 ░C	-55 °C	Surface Mount Right Angle	20	Tin	Straight Tapered	Brown	Polyphenylene Sulfide (PPS) Glass Filled	Phosphor Bronze		Slide Lock	Kinked Pin	0.039 in	1 mm		14	UL94 V-0	FFC FPC	Black	0.3 mm 0.33 mm
Amphenol ICC (FCI) SFW14R-4STAE1LF	Contacts Top	100 V	Polyphenylene Sulfide (PPS) Glass Filled	0.106 in	2.7 mm	105 ░C	-55 °C	Surface Mount Right Angle	20	Gold	Tapered	Black	Polyphenylene Sulfide (PPS) Glass Filled	Phosphor Bronze	0.33 mm	Slide Lock	Kinked Pin	0.039 in	1 mm		14	UL94 V-0	FPC	Black

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.82
		10	$ 0.62
		25	$ 0.56
		50	$ 0.52
		100	$ 0.48
		250	$ 0.43
		500	$ 0.41
		1000	$ 0.37
	Digi-Reel®	1	$ 0.82
		10	$ 0.62
		25	$ 0.56
		50	$ 0.52
		100	$ 0.48
		250	$ 0.43
		500	$ 0.41
		1000	$ 0.37
	Tape & Reel (TR)	2000	$ 0.34
		4000	$ 0.32
		6000	$ 0.31
		10000	$ 0.29
		14000	$ 0.28
		20000	$ 0.27

Description

General part information

SFW14R Series

14 Position FFC, FPC Connector Contacts, Top 0.039" (1.00mm) Surface Mount, Right Angle

Documents

Technical documentation and resources

SFW14R-2STE1LF

Deep-Dive with AI

SFW14R-2STE1LF

Deep-Dive with AI

Technical Specifications

SFW14R Series

Pricing

Description

SFW14R Series

Documents

SFW4R-2STAE1LF

Datasheet

fci basics ffc fpc productpresentation Other Related Document

https://cdn.amphenol-cs.com/media/wysiwyg/files/drawing/sc-sfw10 Other Related Document

SFW14R Series
