LOD-H01602DP/A-Y

Active

Lumex Opto/Components Inc.

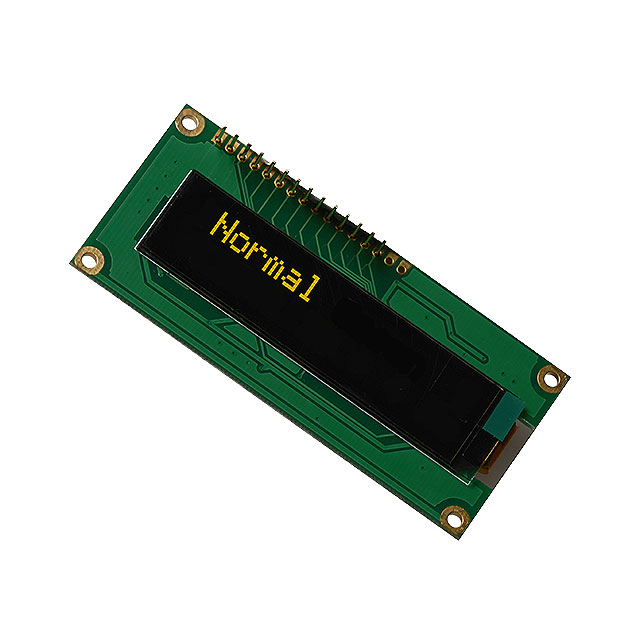

OLED MODULE 32DIG 16 X 2 PASSIVE

Search across all available documentation for this part.

Active

Lumex Opto/Components Inc.

OLED MODULE 32DIG 16 X 2 PASSIVE

Technical Specifications

Parameters and characteristics for this part

OLED MODULE 32DIG 16 X 2 PASSIVE

Part	Character Format [x]	Character Format [y]	Display Format [y]	Display Format [x]	Outline L x W x H [x]	Outline L x W x H [z]	Outline L x W x H [y]	Background Color	Interface	Viewing Area [y]	Viewing Area [x]	Dot Size [y]	Dot Size [x]	Text Color	Operating Temperature [Min]	Operating Temperature [Max]	Number of Characters	Voltage - Supply [Min]	Voltage - Supply [Max]	Display Mode	Character Size [y]	Character Size [z]	Display Type
Lumex Opto/Components Inc. LOD-H01602DP/A-Y	5 Dots	7 Dots	2	16	80 mm	3.8 mm	36 mm	Black	Parallel, 8-Bit	13.52 mm	58.22 mm	0.67 mm	0.57 mm	Yellow	-40 °C	80 C	32	2.4 V	5.5 V	Passive	2.97 mm	5.57 mm	OLED

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Character Display Module Passive 5 x 7 Dots OLED Parallel, 8-Bit 80.00mm x 36.00mm x 3.80mm
