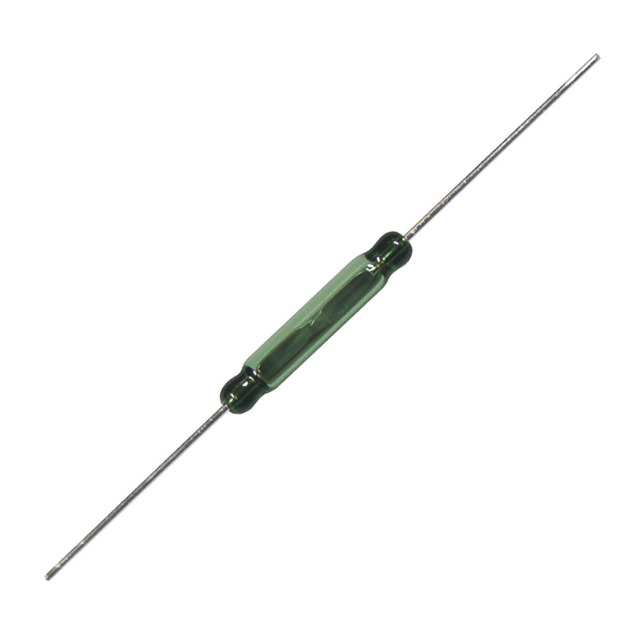

RI-26GP-1520

Active

Comus International

SWITCH REED SPST-NO 1A 140V

Search across all available documentation for this part.

Active

Comus International

SWITCH REED SPST-NO 1A 140V

Technical Specifications

Parameters and characteristics for this part

Part	Circuit	Operate Range [Min]	Operate Range [Max]	Length - Overall [x]	Length - Overall [x]	Mounting Type	Operate Time	Termination Style	Size - Body [x]	Size - Body [x]	Size - Body [diameter]	Size - Body [diameter]	Voltage - Switching AC [custom]	Release Range [Max]	Release Range [Min]	Release Time	Operating Temperature [Min]	Operating Temperature [Max]	Current - Switching	Voltage - Switching DC	Type	Capacitance	Power - Rated	Current - Carry
Comus International RI-26GP-1520	SPST-NO	15	20 AT	46 mm	1.811 in	Surface Mount	0.3 ms	Axial	14.5 mm	0.57 in	2.54 mm	0.1 in	140 V	16 AT	12 AT	0.03 ms	-55 °C	125 °C	1 A	200 V	Glass Body Reed	0.3 pF	15 W	1.25 A
Comus International RI-26GP-2025	SPST-NO	20 AT	25 AT	46 mm	1.811 in	Surface Mount	0.3 ms	Axial	14.5 mm	0.57 in	2.54 mm	0.1 in	140 V	18.75 AT	15	0.03 ms	-55 °C	125 °C	1 A	200 V	Glass Body Reed	0.25 pF	15 W	1.5 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	2000	$ 0.57

General part information

Glass Body Reed Switch SPST-NO 15 ~ 20AT Operate Range 15W 1A (AC/DC) 140 V Surface Mount
