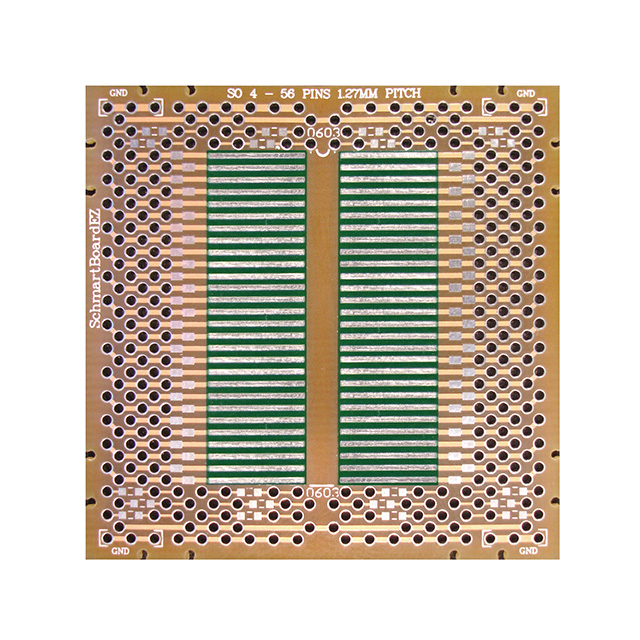

202-0004-01

Active

Schmartboard, Inc.

SO, 4 - 56 PINS, 1.27MM PITCH, 2

Search across all available documentation for this part.

Active

Schmartboard, Inc.

SO, 4 - 56 PINS, 1.27MM PITCH, 2

Technical Specifications

Parameters and characteristics for this part

Specification	202-0004-01

Number of Positions	56
Package Accepted	QSOP, SO, TSSOP, PSSOP, SOP
Pitch [x]	0.05 in
Pitch [x]	1.27 mm
Proto Board Type	SMD to Plated Through Hole Board
Size / Dimension [x]	50.8 mm
Size / Dimension [x]	2 in
Size / Dimension [y]	2 in
Size / Dimension [y]	50.8 mm

SO, 4 - 56 PINS, 1.27MM PITCH, 2

Part	Number of Positions	Package Accepted	Proto Board Type	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Pitch [x]	Pitch [x]
Schmartboard, Inc. 202-0004-01	56	PSSOP, QSOP, SO, SOP, TSSOP	SMD to Plated Through Hole Board	2 in	50.8 mm	50.8 mm	2 in	0.05 in	1.27 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 10.00

General part information

SO, 4 - 56 PINS, 1.27MM PITCH, 2
