LNK4022S-TL

Active

Power Integrations

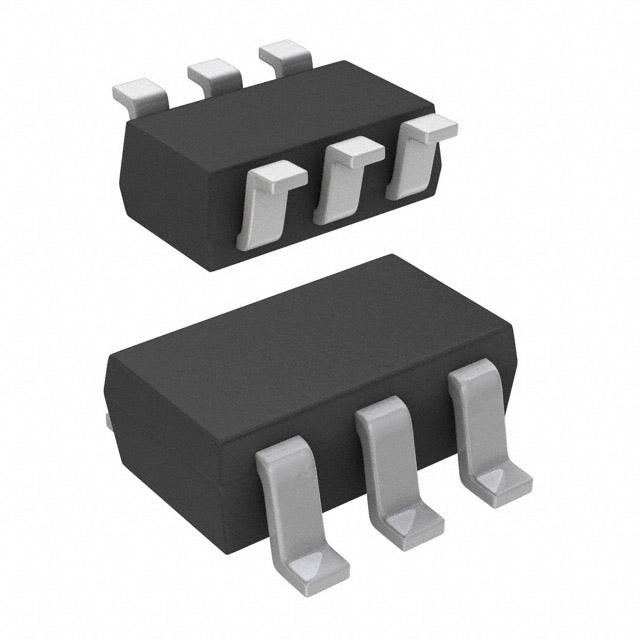

IC OFFLINE SW FLYBACK SOT23-6

Search across all available documentation for this part.

Active

Power Integrations

IC OFFLINE SW FLYBACK SOT23-6

Technical Specifications

Parameters and characteristics for this part

Specification	LNK4022S-TL

Fault Protection	Over Temperature, Short Circuit, Over Voltage
Frequency - Switching	65 kHz
Internal Switch(s)	False
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-25 °C
Output Isolation	Isolated
Package / Case	SOT-23-6
Power (Watts)	6.5 W
Supplier Device Package	SOT-23-6
Topology	Flyback
Voltage - Supply (Vcc/Vdd) [Max]	16.5 V
Voltage - Supply (Vcc/Vdd) [Min]	5 V

Part	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Supply (Vcc/Vdd) [Max]	Topology	Fault Protection	Power (Watts)	Frequency - Switching	Package / Case	Output Isolation	Mounting Type	Internal Switch(s)	Supplier Device Package
Power Integrations LNK4022S-TL	-25 °C	125 °C	5 V	16.5 V	Flyback	Over Temperature Over Voltage Short Circuit	6.5 W	65 kHz	SOT-23-6	Isolated	Surface Mount		SOT-23-6

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.18
	Digi-Reel®	1	$ 0.18
	Tape & Reel (TR)	10000	$ 0.17

General part information

Converter Offline Flyback Topology 65kHz SOT-23-6
