469-2"X60YD

Active

3M (TC)

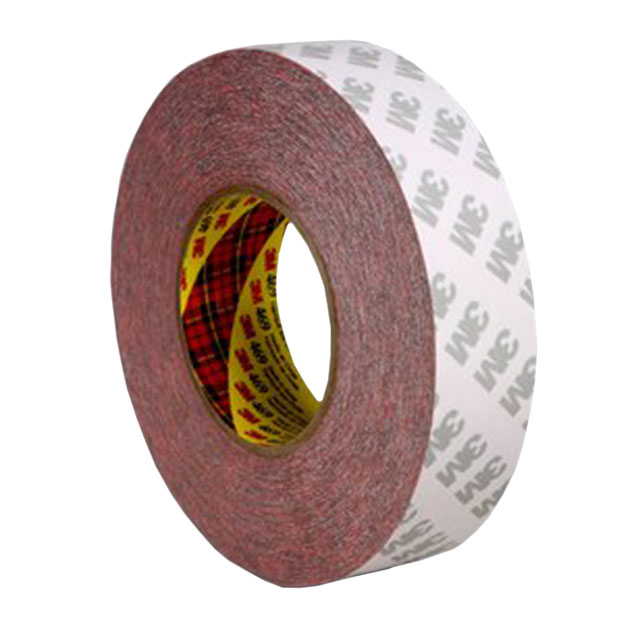

TAPE SPLICING RED 2"X60YDS

Search across all available documentation for this part.

Active

3M (TC)

TAPE SPLICING RED 2"X60YDS

Technical Specifications

Parameters and characteristics for this part

Specification	469-2"X60YD

Adhesive	Acrylic, 330
Backing, Carrier	Polycoated Kraft Liner
Color	Red
Length	60 yds
Length	55 m
Length	180 ft
Shelf Life	24 Months
Shelf Life Start	Date of Manufacture
Storage/Refrigeration Temperature	70 °F
Storage/Refrigeration Temperature	21 °C
Tape Type	Splicing
Temperature Range [Max]	38 °C
Temperature Range [Max]	100 °F
Temperature Range [Min]	21 °C
Temperature Range [Min]	70 °F
Thickness	10.5 mils
Thickness	0.0105 in
Thickness	0.267 mm
Thickness - Adhesive	0.14 mm
Thickness - Adhesive	0.0055 in
Thickness - Adhesive	5.5 mils
Thickness - Backing, Carrier [custom]	0.005 "
Thickness - Backing, Carrier [custom]	5 mils
Thickness - Backing, Carrier [custom]	0.127 mm
Usage	Splicing
Width [y]	2 "
Width [y]	50.8 mm

Part	Tape Type	Backing, Carrier	Shelf Life	Width [y]	Width [y]	Storage/Refrigeration Temperature	Storage/Refrigeration Temperature	Length	Length	Length	Shelf Life Start	Adhesive	Usage	Thickness	Thickness	Thickness	Thickness - Backing, Carrier [custom]	Thickness - Backing, Carrier [custom]	Thickness - Backing, Carrier [custom]	Color	Thickness - Adhesive	Thickness - Adhesive	Thickness - Adhesive	Temperature Range [Max]	Temperature Range [Min]	Temperature Range [Max]	Temperature Range [Min]
3M (TC) 469-2"X60YD	Splicing	Polycoated Kraft Liner	24 Months	2 "	50.8 mm	70 °F	21 °C	60 yds	55 m	180 ft	Date of Manufacture	330 Acrylic	Splicing	10.5 mils	0.0105 in	0.267 mm	0.005 "	5 mils	0.127 mm	Red	0.14 mm	0.0055 in	5.5 mils	38 °C	21 °C	100 °F	70 °F

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	16	$ 51.06

General part information

Splicing Tape Acrylic, 330 Adhesive Red 2.00" (50.80mm) X 180' (55.0m) 60 yds
