1415542-6

Active

TE Connectivity Potter & Brumfield Relays

PE033F03

Search across all available documentation for this part.

Active

TE Connectivity Potter & Brumfield Relays

PE033F03

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	Must Operate Voltage	Load - Max Switching	Contact Rating (Current)	Contact Material	Approval Agency	Contact Form	Release Time	Relay Type	Coil Resistance	Switching Voltage [Max]	Operate Time	Termination Style	Coil Type	Coil Current	Operating Temperature [Max]	Operating Temperature [Min]	Must Release Voltage	Coil Voltage	Coil Insulation	Seal Rating	Switching Voltage
TE Connectivity Potter & Brumfield Relays 1415542-6	Through Hole	2.25 VDC	2000 VA	5 A	Silver Tin Oxide (AgSnO)	cURus VDE	SPST-NO (1 Form A)	8 ms	General Purpose	45 Ohms	400 VAC	8 ms	PC Pin	Non Latching	66.7 mA	85 °C	-40 °C
TE Connectivity Potter & Brumfield Relays 1-1415542-4	Through Hole	13.5 VDC	4000 VA	10 A	Gold (Au) Silver Nickel (AgNi)	CQC CSA cURus VDE	SPDT (1 Form C)	8 ms	General Purpose		400 VAC	10 ms	PC Pin	Non Latching		85 °C	-40 °C	1.8 VDC	18 VDC	Class F	Sealed - Flux Protection
TE Connectivity Potter & Brumfield Relays 1415542-7	Socketable		7040 VA	16 A	Silver Nickel (AgNi)	cURus VDE	DPDT (2 Form C)	10 ms	General Purpose	110 Ohms		15 ms	Quick Connect - 0.250" (6.3mm)	Non Latching	109 mA				12 VDC			440 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	5000	$ 3.71

General part information

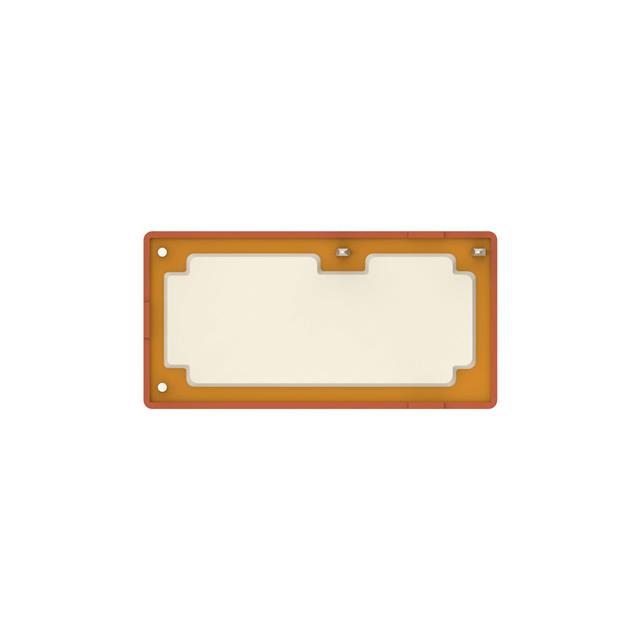

General Purpose Relay SPST-NO (1 Form A) 3VDC Coil Through Hole
