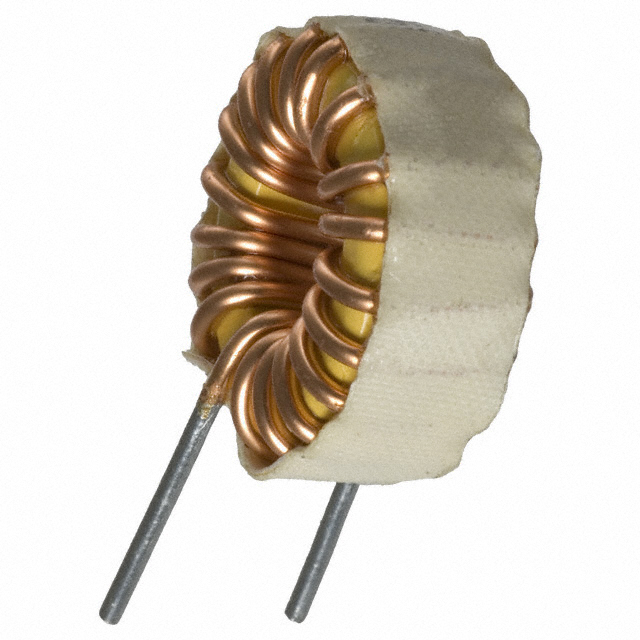

5707-RC
ActiveBourns Inc.
FIXED IND 75UH 5A 40 MOHM TH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
5707-RC
ActiveBourns Inc.
FIXED IND 75UH 5A 40 MOHM TH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 5707-RC |
|---|---|
| Current Rating (Amps) | 5 A |
| DC Resistance (DCR) [Max] | 40 mOhm |
| Inductance | 75 µH |
| Material - Core | Iron Powder |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Radial, Vertical (Open) |
| Shielding | Unshielded |
| Size / Dimension [diameter] | 28.58 mm |
| Size / Dimension [diameter] | 1.125 " |
| Size / Dimension [y] | 0.562 " |
| Size / Dimension [y] | 14.27 mm |
| Tolerance | 15 % |
| Type | Toroidal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 4.19 | |
| 10 | $ 3.40 | |||
| 25 | $ 3.02 | |||
| 72 | $ 2.95 | |||
Description
General part information
5707 Series
75 µH Unshielded Toroidal Inductor 5 A 40mOhm Max Radial, Vertical (Open)
