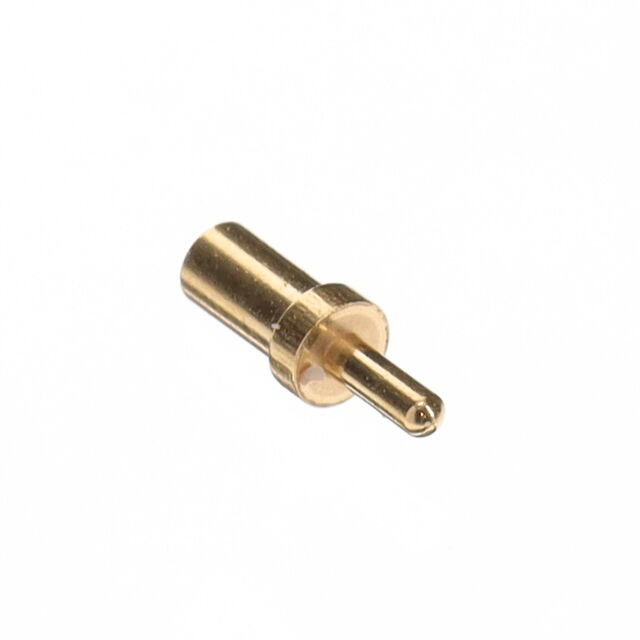

CONN PC PIN CIRC 0.025DIA GOLD
Deep-Dive with AI
Search across all available documentation for this part.
3134-2-00-15-00-00-08-0
ActiveMill-Max Manufacturing Corp.
CONN PC PIN CIRC 0.025DIA GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 3134-2-00-15-00-00-08-0 |
|---|---|
| Board Thickness | 0.062 in |
| Board Thickness | 1.57 mm |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Brass Alloy |
| Flange Diameter [diameter] | 0.062 in |
| Flange Diameter [diameter] | 1.57 mm |
| Insulation | Non-Insulated |
| Length - Above Flange [x] | 2.01 mm |
| Length - Above Flange [x] | 0.079 " |
| Length - Below Flange [x] | 0.082 in |
| Length - Below Flange [x] | 2.08 mm |
| Length - Overall [x] | 4.62 mm |
| Length - Overall [x] | 0.182 " |
| Mounting Hole Diameter [diameter] | 1.32 mm |
| Mounting Hole Diameter [diameter] | 0.052 in |
| Mounting Type | Through Hole |
| Pin Size - Above Flange [diameter] | 0.025 in |
| Pin Size - Above Flange [diameter] | 0.64 mm |
| Terminal Style | Single End |
| Terminal Type | PC Pin |
| Termination | Swage |
3134-2 Series
| Part | Board Thickness | Board Thickness | Contact Finish Thickness | Contact Finish Thickness | Termination | Length - Below Flange [x] | Length - Below Flange [x] | Terminal Style | Terminal Type | Length - Overall [x] | Length - Overall [x] | Flange Diameter [diameter] | Flange Diameter [diameter] | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Contact Material | Insulation | Mounting Type | Contact Finish | Pin Size - Above Flange [diameter] | Pin Size - Above Flange [diameter] | Length - Above Flange [x] | Length - Above Flange [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Mill-Max Manufacturing Corp. | 0.062 in | 1.57 mm | 50 µin | 1.27 µm | Swage | 0.082 in | 2.08 mm | Single End | PC Pin | 4.62 mm | 0.182 " | 0.062 in | 1.57 mm | 1.32 mm | 0.052 in | Brass Alloy | Non-Insulated | Through Hole | Gold | 0.025 in | 0.64 mm | 2.01 mm | 0.079 " |
Mill-Max Manufacturing Corp. | 0.062 in | 1.57 mm | 10 Áin | 0.25 Ám | Swage | 0.082 in | 2.08 mm | Single End | PC Pin | 4.62 mm | 0.182 " | 0.062 in | 1.57 mm | 1.32 mm | 0.052 in | Brass Alloy | Non-Insulated | Through Hole | Gold | 0.025 in | 0.64 mm | 2.01 mm | 0.079 " |
Mill-Max Manufacturing Corp. | 0.062 in | 1.57 mm | 200 Áin | 5.08 Ám | Swage | 0.082 in | 2.08 mm | Single End | PC Pin | 4.62 mm | 0.182 " | 0.062 in | 1.57 mm | 1.32 mm | 0.052 in | Brass Alloy | Non-Insulated | Through Hole | Tin | 0.025 in | 0.64 mm | 2.01 mm | 0.079 " |
Mill-Max Manufacturing Corp. | 0.062 in | 1.57 mm | 200 Áin | 5.08 Ám | Swage | 0.082 in | 2.08 mm | Single End | PC Pin | 4.62 mm | 0.182 " | 0.062 in | 1.57 mm | 1.32 mm | 0.052 in | Brass Alloy | Non-Insulated | Through Hole | Tin-Lead | 0.025 in | 0.64 mm | 2.01 mm | 0.079 " |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.76 | |
| 10 | $ 0.65 | |||
| 25 | $ 0.62 | |||
| 50 | $ 0.61 | |||
| 100 | $ 0.58 | |||
| 250 | $ 0.53 | |||
| 500 | $ 0.47 | |||
| 1000 | $ 0.42 | |||
| 3000 | $ 0.38 | |||
Description
General part information
3134-2 Series
PC Pin Terminal Connector Through Hole Gold 0.025" (0.64mm) Dia
