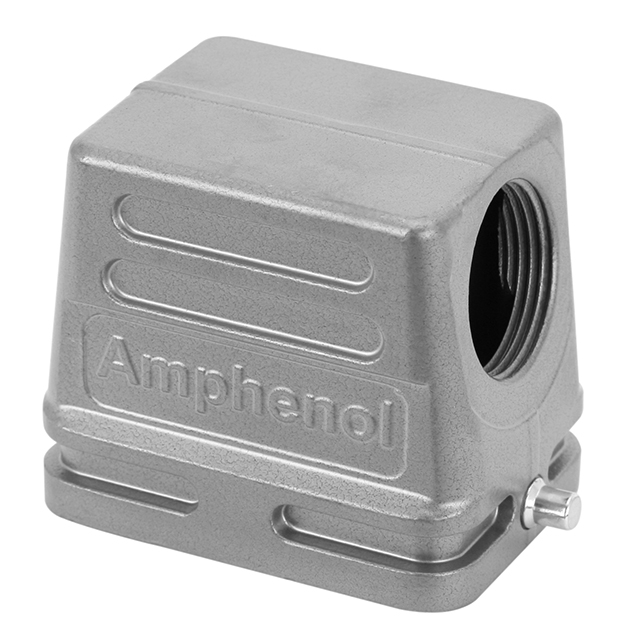

C14621R0065071

Active

Amphenol Tuchel Industrial

CONN HOOD SIDE ENTRY SZE6 M25

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

CONN HOOD SIDE ENTRY SZE6 M25

Technical Specifications

Parameters and characteristics for this part

Specification	C14621R0065071

Connector Type	Hood
Housing Material	Aluminum Alloy, Die Cast
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (1) on Base Bottom
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Size / Dimension [x]	2.874 in
Size / Dimension [x]	73 mm
Size / Dimension [y]	1.693 in
Size / Dimension [y]	43 mm
Size / Dimension [z]	51 mm
Size / Dimension [z]	2.008 "
Style	Side Entry
Thread Size	M25

Part	Connector Type	Lock Location	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Style	Thread Size	Operating Temperature [Max]	Operating Temperature [Min]	Housing Material	Ingress Protection
Amphenol Tuchel Industrial C14621R0065071	Hood	Locking Clip (1) on Base Bottom	2.874 in	1.693 in	73 mm	51 mm	2.008 "	43 mm	Side Entry	M25	100 °C	-40 °C	Aluminum Alloy Die Cast	IP65 - Dust Tight Water Resistant
Amphenol Tuchel Industrial C14621R0066061	Hood	Locking Clip (1) on Base Bottom							Top Entry	M20	100 °C	-40 °C	Aluminum Alloy Die Cast	IP65 - Dust Tight Water Resistant

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 13.68

General part information

Hood Connector Side Entry M25 E6 IP65 - Dust Tight, Water Resistant
